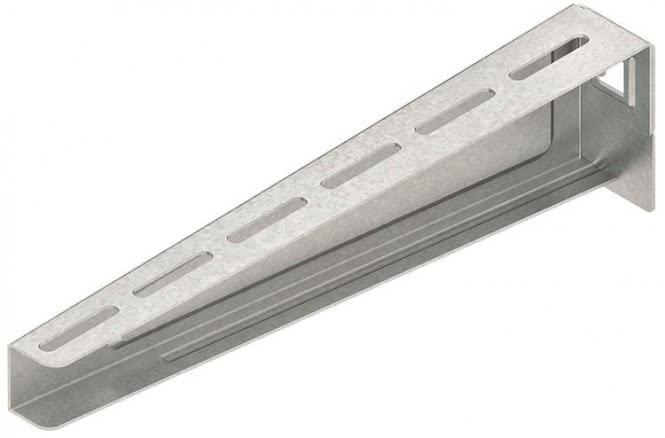

Niedax wall bracket KTAM 400
Manufacturer: Niedax
Designation: Wall bracket
Type: KTAM 400
Length: 420 mm
Width: 42 mm
Height: 82 mm
Suitable for cable support system width: 50 to 400 mm
Design: Wall and pole bracket
Angle: 90°
Load capacity: 1.5 kN
Suitable for functional integrity: No
Material: Steel
Material grade: Other
Surface protection: Strip galvanised

Niedax wall bracket KTAM 400: further details
Hanging post and wall bracket, medium-heavy, for wall and hanging post mounting, including proportional fixing accessories. The load capacity data are only valid with sufficient anchorage to the load-bearing substrate or with correct installation on suspended supports. VDE certified!

Dimensions (approx. dimensions)
Support height H: 82 mm
Support length L: 420 mm
Load capacity F at L/2: 1.5 kN tested in the system
Material outrigger: Steel, strip galvanised according to DIN EN 10346.
