The solar panel converts solar energy into electricity, which is then stored in the built-in rechargeable battery. The solar panel is robust, waterproof, and easy to use. The high-capacity built-in battery can be charged using solar energy or via an external power supply. An integrated compass on the back of the solar panel allows for optimal alignment.

Reliable and efficient:

• Waterproof for outdoor use.
• Compact design for easy setup anywhere.

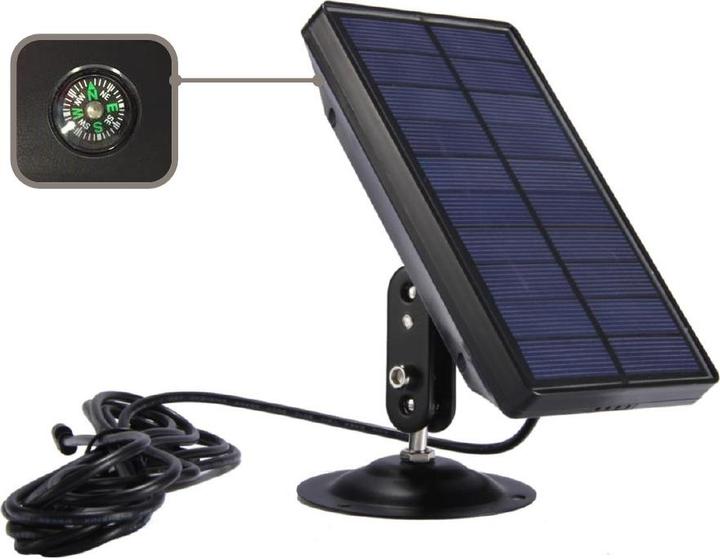

• Integrated compass on the back of the panel simplifies and optimizes alignment.
• Easy to install thanks to the included mounting system.
• Triple battery protection.

Features of the solar panel:

• Built-in battery: 2 x 18650 lithium batteries 3.7 V, 5200 mAh.
• Maximum output power: 6 V / 1 A.
• Overcurrent protection at the output.
• Short circuit protection.
• Output power of the solar panel: 1.6 W.
• Charging current of the solar panel: 320 mA.
• Power-on modes:
• Automatic activation when more than 0.2 W of solar power is detected.
• Manual activation.
• Charging process detection.

Triple battery protection:

• Deep discharge protection: stops discharging when the voltage drops below 3.3 V.
• Overvoltage protection: stops charging when the voltage exceeds 4.2 V.
• Temperature-dependent protection: stops charging when the temperature exceeds 65 °C or drops below 2 °C.

Charging methods:

• Via solar energy.
• Via an external power supply (5 V - micro-USB port).

Ergonomics of the solar panel:

• Dimensions: 140 mm x 85 mm x 25 mm.
• Weight: 290 g.
• Length of output cable: 3 m.
• Waterproof.

This product is compatible with the following NUM'AXES camera traps:

• PIE1044
• PIE1045
• PIE1048

Included in the package:
1 solar panel with 3 m output cable, 1 mounting system, 1 user manual.
