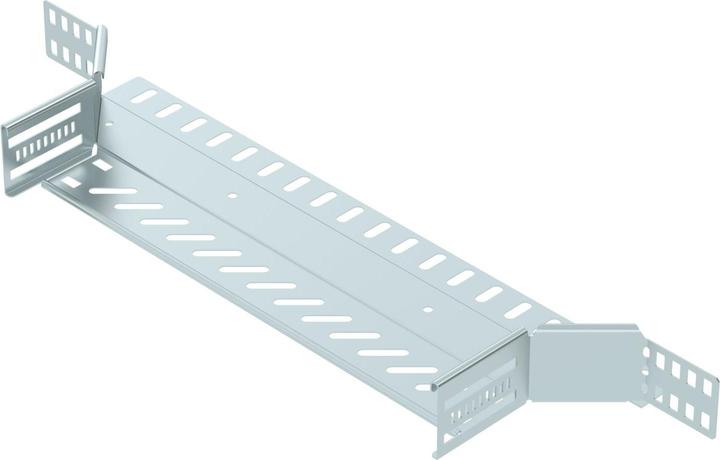

OBO Bettermann Branching Piece RAA 640 FS

Manufacturer: OBO Bettermann
Designation: Branching Piece for Cable Trays 60x400
Type: RAA 640 FS
Cable Tray Height: 60 mm
Cable Tray Outlet Width: 400 mm
NATO Hole Pattern: no
Design: Integrated Connector
Suitable for Function Maintenance: yes
Material: Steel
Stainless Steel, Pickled: no
Surface Protection: Hot-Dip Galvanized
Operating Temperature: -20..120 °C
Color: Zinc

The branching piece is used to create a horizontal branch or intersection and is a fitting for snap-on and screwable cable trays with a side height of 60 mm. It allows for tool-free assembly with double clamps or a screw connection using flat round screws FRS and combination nuts M6. It is suitable for indoor use. Fastening materials must be ordered separately.
