This intelligent slider, combined with the table rotation mechanism (52.225.00, included in the delivery), is ideal for kitchens, home offices, and more. For installation, a rectangular, movable table or workbench is required, as well as a furniture base such as a shelf or similar.

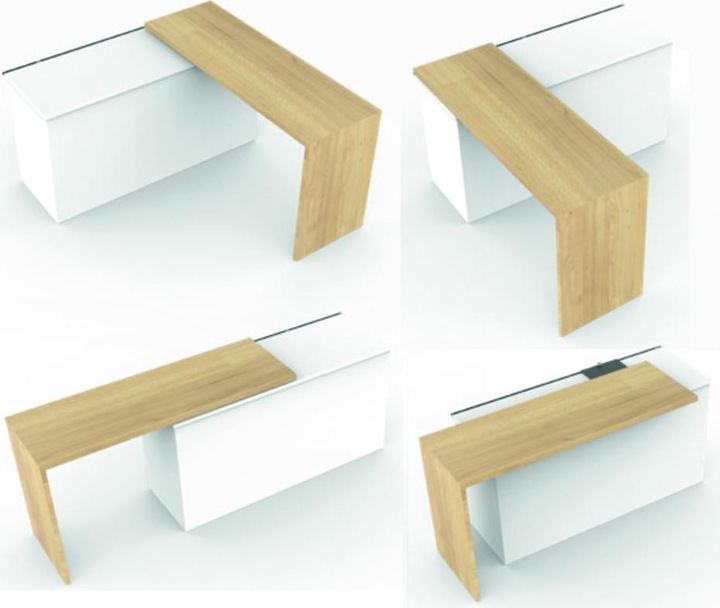

From the closed position, the rectangular table or workbench is first moved away from standing walls and then rotated 90 degrees into the open position, where it expands your kitchen or workspace. When not in use, it can be rotated back and stored away. In either the open or closed position, the tabletop or workbench can be slid laterally to the left or right, providing more flexibility for your furniture.

Due to its symmetrical design, the slider and rotation mechanism can be installed for left or right use, meaning the table can open either to the left or to the right.

Contents:

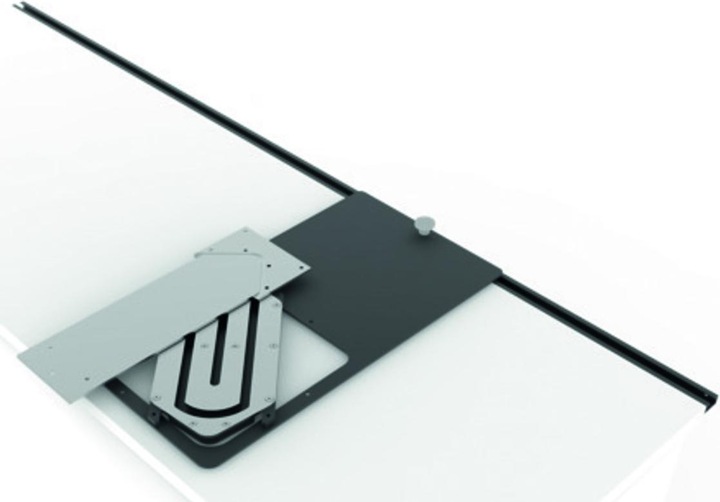

• Sliding rail
• Sliding groove for screwing in 52.225.00
• Screws for assembly
• CM4070 mechanism (52.225.00)

Technical specifications:
Width of the desk: 550 mm
Length of the sliding rail: 2000 mm (can be shortened if necessary, but then the mounting holes will need to be repositioned!)
Minimum thickness of the top panel: 38 mm
Gap between furniture and desk: 10 mm
Routing requirement in the upper desk: Template and instructions are included with the purchase.
