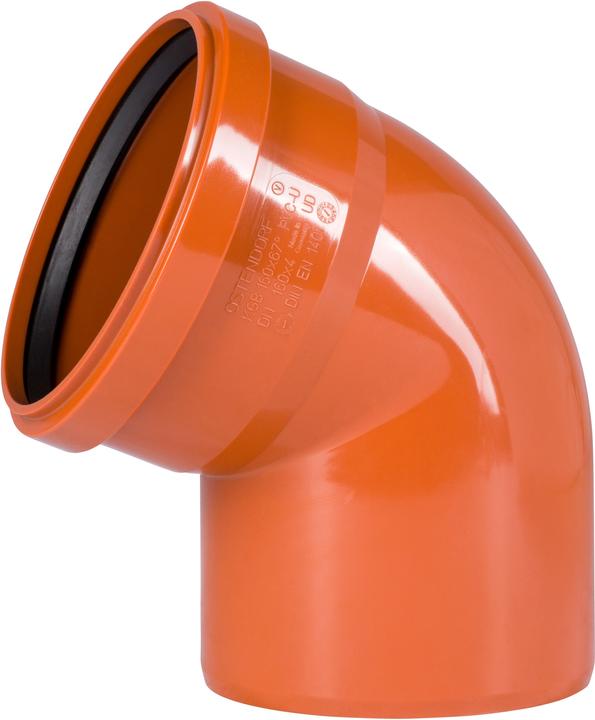

Angle 67° KGB External Channel 160mm

Features:
Absolute resistance to general corrosion and pitting. Resistance to the harmful effects of chemical compounds, resistance of the outer surfaces to groundwater. Resistance to stray currents. Very low weight. High smoothness of the walls. Resistance to the formation of deposits on the inner surfaces of pipes. Reduction of hydraulic resistance during wastewater flow. Microbiological resistance. High durability, estimated at 100 years. Easy and quick installation. Possibility and ease of combination with other materials.

Material properties:
Elastic modulus E (1min) 3200 MPa. Average density 1.5 g/cm3. Average linear thermal expansion coefficient 0.08 mm/mK. Thermal conductivity 0.16 W K-1 m-1. Surface resistance > 1012 Ω. Poisson's ratio 0.4.

Application:
Pipes and fittings of the KG system are intended for the construction of sewage networks, mostly as gravity underground pipelines, which are among the most important underground infrastructure facilities. Therefore, you should always pay attention to solutions that allow you to achieve the best quality of investment at the lowest possible cost.

Dimensions:
Diameter [mm]: 160. Angle [°]: 67. Z1 [mm]: 96. L [mm]: 170.
