Oventrop OV T-handle ball valve Optibal PN 16, brass DN 15, 1/2inch IT
Price in EUR including VAT, free shipping
Delivered between Thu, 26.6. and Tue, 1.7.
More than 10 items in stock at supplier
More than 10 items in stock at supplier
Product details

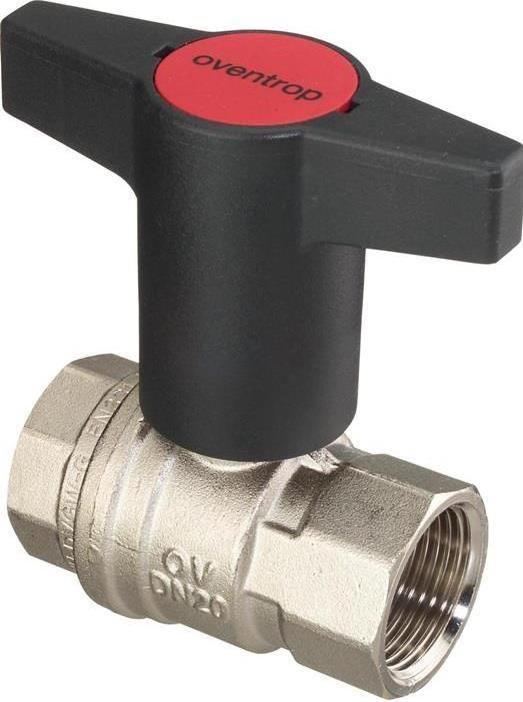

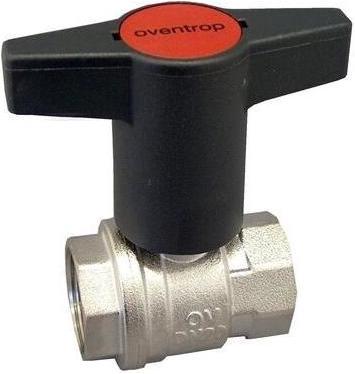

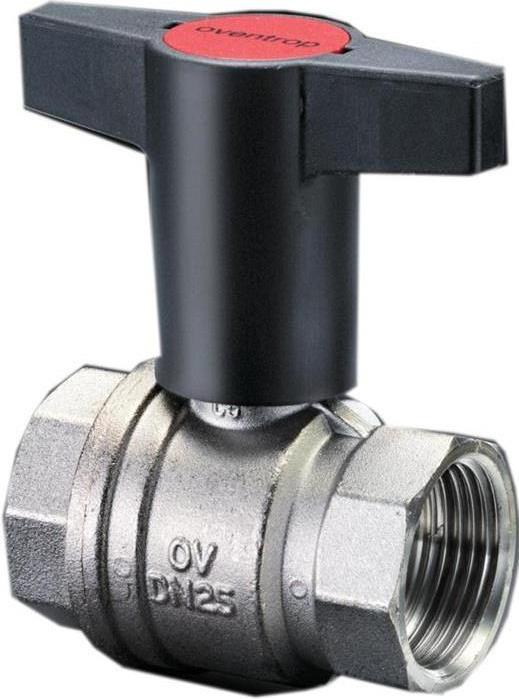

The OV Knebelgriff ball valve Optibal PN 16 is a high-quality ball valve designed for use in various sanitary applications. Made from nickel-plated brass, this ball valve offers high resistance to corrosion and a long service life. With a nominal diameter of DN 15 and a full bore, it allows for an unrestricted flow of media. The ball surface is hard chrome-plated, which increases wear resistance and supports the functionality of the valve. The seals are made from PTFE and FKM, ensuring reliable sealing and allowing for an operating temperature range of -10 to +100 °C. This ball valve is ideal for applications where precise control of media flow is required.
- Full bore for unrestricted flow
- High-quality seals made of PTFE and FKM
- Operating temperature range of -10 to +100 °C
- High-quality nickel-plated surface for corrosion protection
- Robust brass construction for durability.
Exact colour description | Nickel-plated brass |
Material | Brass |
Sanitary valve type | Ball valve |
Connection thread | M16 |
Length | 90 mm |
Diameter | 15 mm |
Item number | 22168316 |
Exact colour description | Nickel-plated brass |
Colour | Silver |
Material | Brass |
Material group | Metal |
Sanitary valve type | Ball valve |
Connection thread | M16 |
Max. Operating pressure | 16 bar |
Min. operating temperature | -10 °C |
Maximum operating temperature | 100 °C |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 90 mm |
Width | 60 mm |
Diameter | 15 mm |
Height | 35 mm |
Weight | 190 g |
