DC current absolute max. = 10A dc
Resistance measurement absolute max. = 250MΩ
Capacitance measurement absolute max. = 500µF
True RMS = Yes
Frequency max. = 999.9kHz
Display type = TFT LCD
Model number = HMC8012
AC resolution = 100nA
Resistance measurement resolution = 1mΩ
Capacitance measurement resolution = 1pF
Safety voltage = 600 V, 1000 V

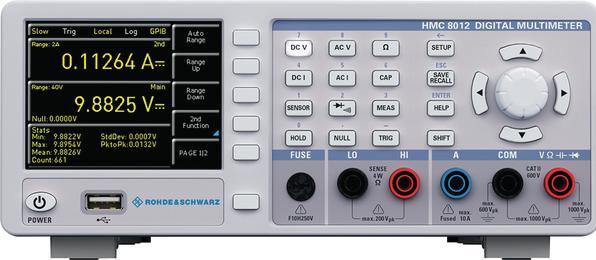

Digital bench multimeter HMC8012, HMC8012-G. The HMC8012 digital bench multimeter features a 5 3/4-digit display (480,000 counts) for four times higher measurement ranges without the need for range switching. It facilitates measurements in measurement category II with a voltage of up to 600 V – the standard in this device class is only 300 V. With the HMC8012, current measurements across the entire range are possible with just one connector, eliminating the need for manual switching during range transitions. An integrated wattmeter also allows for power measurements in the DC range. Measurement range: DC up to 100 kHz Resolution: 1 μV, 100 nA, 1 mΩ, 1 pF, 1 Hz, 0.1 °C/F Basic accuracy: 0.015 % (DC) 5 3/4-digit display (480,000 counts) Simultaneous display of three measurement functions, e.g., DC + AC + statistics Measurement rate: up to 200 values/s Measurement functions: V (DC), I (DC), V (AC), I (AC), frequency, DC power, resistance (two- and four-wire), temperature (PT100/PT500/PT1000), capacitance, diode and continuity testing Mathematical functions: limit testing, Min./Max., average, offset, DC, dB, dBm Data logging in internal memory or on a USB flash drive in CSV format Interfaces: USB-TMC/-VCP, Ethernet, LXI, IEEE-488 (GPIB) SCPI commands largely compatible with Agilent 34410A (HMC8012-G) HMC8012-G: HMC8012 including IEEE-488 (GPIB) interface.
