Number of cores = 4
Length = 25m
Operating temperature min. = -75°C
Operating temperature max. = +260°C
shielded / unshielded = shielded
stranded wires = 7/0,2 mm
Insulation material = PFA
Cable profile = Multiconductor
number of strands = 7
strand size = 0.2 mm
Standards = IEC 751, RoHS compliant

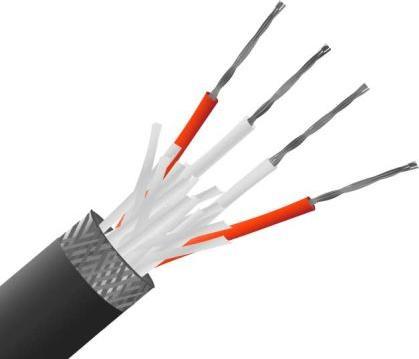

BS4937 part 30 1993, complies with IEC 584-3. PWT extension cable. Flexible, shielded copper cable with a black protective sheath. Suitable for use with 2, 3 and 4 wire sensors Pt100/platinum resistance thermometers etc. PVC insulated cable for extending platinum resistance thermometers Can be used to extend 2, 3 or 4-wire RTD configurations Usually used for PT100Ω thermometers, but also suitable for other types, e.g. Pt130, Pt500 and Pt1000Ω 4-core tinned copper conductors with PVC insulation in 7/0.2 mm, twisted conductors, polyester tape and nylon cord, tinned copper braided shield with PVC insulated outer sheath Color coded wires: 2 x red / 2 x white, according to IEC-751, with black outer sheath Heat resistant PVC up to 105 °C Good for general cables, very flexible and waterproof Insulation designed for -10 °C to +105 °C Supplied in 10, 25 or 50 m roll lengths.
