Manufacturer series: NDV
Connection thread: G3/4
Maximum flow rate: 175 l/min
Body material: Steel
Seal material: Nitrile rubber
Maximum working pressure: 350 bar
Thread size: 3/4 inch
Standard thread: G
Maximum operating temperature: +100°C
Minimum operating temperature: -10°C

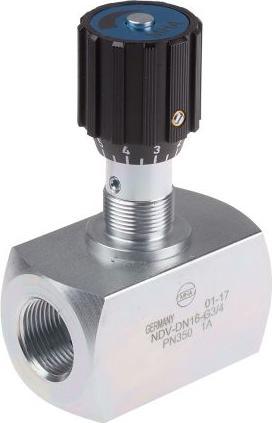

Order No. 246-5537 is a double acting needle with high pressure flow control. These high pressure flow valves are suitable for universal use in a hydraulic system. Both single-acting and double-acting versions are available. The series features an easy-to-read, colored flow graduation scale and a clamping screw for flow stabilization. Nitrile rubber seals are used, with a temperature range of -10 to +100°C and a 0.5 bar opening pressure.
