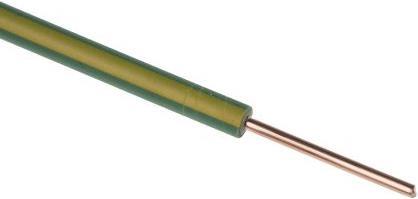

Rs Pro Grn/yel rigid switchgear cable,1sq.mm
100 mOnly 4 pieces in stock at supplier
Product details
Conductor cross-section: 1 mm
Outer color: Green/Yellow
Length: 100 m
AWG: 17 AWG
Rated current: 15 A
Stranded wires: 1/1.13 mm
Operating voltage: 600 V
Maximum operating temperature: +70 °C
Number of strands: 1
Outer diameter: 3.2 mm
Conductor material: Annealed copper
Cable profile: Single core
Strand size: 1.13 mm
Insulation material: PVC
The specified number of stranded wires is a nominal value and may vary accordingly. The rated current is specified for a single wire in free air at an ambient temperature of 35 °C. The rated current indicated in parentheses applies to two cables bundled and enclosed in a conduit or similar. RS control panel cable, solid copper conductor. A simple soft-annealed solid copper conductor with PVC insulation, manufactured according to BS6231. Application area: These cables are ideally suited for wiring control panels, instrument panels, measuring devices, and industrial plants.
cable type | T-wire |
Cable cross section | 1 mm² |
Voltage | 600 V |
Cable length | 100 m |
Exact colour description | Green/yellow |
Item number | 10245254 |
Manufacturer | Rs Pro |
Category | Cable conductors |
Manufacturer no. | 358977 |
Release date | 17.12.2018 |
External links |
Colour | Green, Yellow |
Exact colour description | Green/yellow |
Material | PVC |
cable type | T-wire |
Cable cross section | 1 mm² |
Number of cores | 1 x |
Nominal voltage U | 600 V |
Nominal current | 15 A |
Contact material | Copper |
Voltage | 600 V |
Country of origin | United Kingdom |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Cable length | 100 m |
Outside diameter | 3.20 mm |
