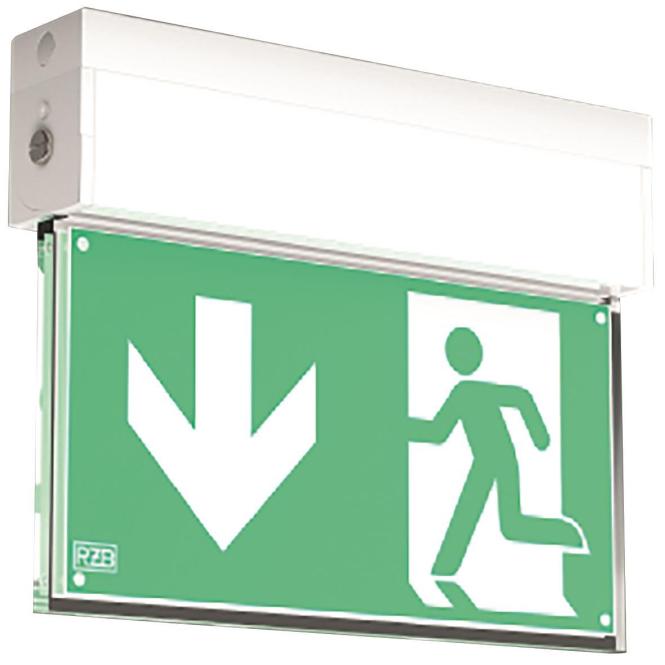

RZB LED escape sign luminaire 652217.002
Manufacturer: RZB
Designation: LED escape sign luminaire white
Type: 652217.002
Mounting: wall/ceiling-mounted
Function: escape route marking
With pictogram: yes
Monitoring device: automatic self-test
Type of switching: continuous/standby
With remote switch connection: no
With remote control: no
Power supply: decentralised (single battery)
Battery type: NiMh
Illuminant: LED not replaceable
Suitable for number of lamps: 1
Lampholder: without
Number of lamp heads: 1
Material of housing: aluminium
Housing colour: white
Material of cover: transparent plastic
Voltage type: AC
Rated voltage: 220..240 V
Control gear: LED control gear current-controlled
Replaceable control gear: yes
Light distributor: without
Constant luminous flux control: no
Protection class (IP): IP30
Protection class (NEMA): other
Impact resistance: IK03
Protection class: I
Luminaire with limited surface temperature "D-sign": no
Rated ambient temperature to IEC62722-2-1: 25 °C
Detection distance: 24 m
Rated operating time: 1..8 h
Width: 45 mm
Height/depth: 195 mm
Length: 247 mm
Type of wiring: suitable for through-wiring
Number of poles: 3
Conductor cross-section: 2.5 mm²
Type of connection: plug-in connection

Further details: Luminaire for escape route marking. Housing powder-coated extruded aluminium profile. Four escape sign foils and one white foil including fixing pins for plug-on enclosed. Universal fixing kit for ceiling and wall mounting.
EAN: 4051859331438.
