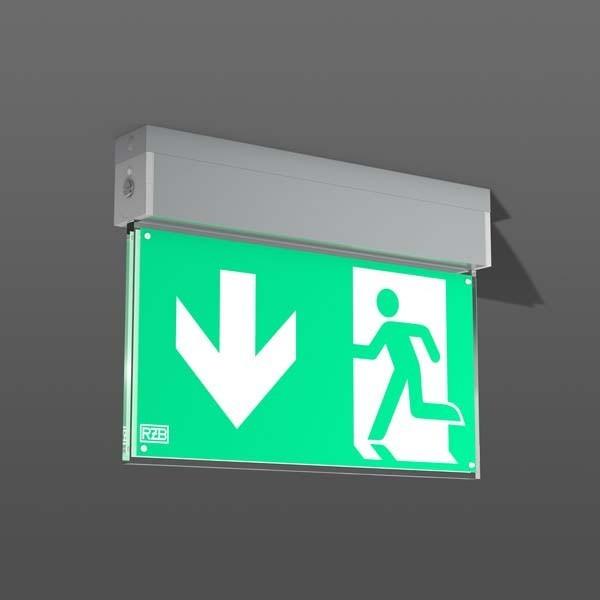

RZB LED emergency light 671985.004.2
Manufacturer: RZB
Designation: LED emergency light
Type: 671985.004.2
Mounting type: Wall-mounted/Ceiling-mounted
Function: Escape route marking
Suitable for marking type: Other
Type of marking: One/two-sided
With pictogram: Yes
Monitoring device: Without
Switching type: Continuous/standby
With remote switch connection: No
Power supply: Central (central battery)
Battery type: Other
Illuminant: LED not replaceable
With illuminant: No
Suitable for number of illuminants: 1
Lampholder: Without
Number of lamp heads: 1
Housing material: Aluminum
Housing color: Silver
Cover material: Transparent plastic
Voltage type: AC/DC
Nominal voltage: 220-240 V
Control gear: Not required
Light distributor: Without
Protection class (IP): IP30
Protection class (NEMA): Other
Impact resistance: IK03
Protection class: I
Luminaire with limited surface temperature "D mark": No
Rated ambient temperature according to IEC62722-2-1: 25 °C
Max. system power: 4.5 W
Color temperature: 4000 K
Power factor: 0.56
Detection distance: 32 m
Width: 45 mm
Height/Depth: 237 mm
Length: 327 mm
Type of wiring: Termination
Number of poles: 3
Conductor cross-section: 2.5 mm²
Connection type: Plug-in connection

Further details:
Fitting: Extruded aluminum profile powder-coated.
Display panel: Plastic with rescue signs for escape route marking on one/two sides.
Four foils with rescue signs for escape route marking and one white foil for plug-on enclosed.
Illuminant (LED) included in delivery.
EAN: 4051859397274.
