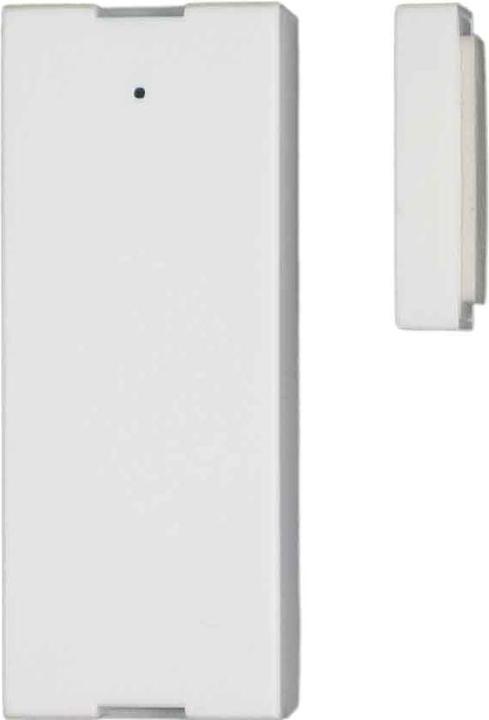

Schalk Magnetic Contact MKW 1

Manufacturer: Schalk
Designation: Magnetic Contact Switch 24VUC
Type: MKW 1
Number of contact-bearing outputs with signaling function: 1
Number of safe contact-bearing outputs: 1
Type of actuation: Magnet
Interface design for safety-related communication: other
Electrical connection design: Spring clamp connection
Design of switching output: 2-wire
Width of the sensor: 59.5 mm
Height of the sensor: 15.3 mm
Length of the sensor: 23.3 mm
Housing design: Rectangular
Material of the housing: Plastic
Max. output current at the safe output: 250 mA
Mechanical installation condition for sensor: other
Rated supply voltage at AC 50 Hz: 0..24 V
Rated supply voltage at AC 60 Hz: 0..24 V
Rated supply voltage at DC: 0..24 V
Type of voltage: AC/DC
Cross/short-circuit detection possible: yes
Switching distance: 8 mm
With monitoring function for downstream devices: yes
Suitable for safety functions: yes

Schalk Magnetic Contact MKW 1: additional details
Universally applicable changeover contact for monitoring windows, doors, etc. Internal spring clamp terminals. Supplied including magnet.
