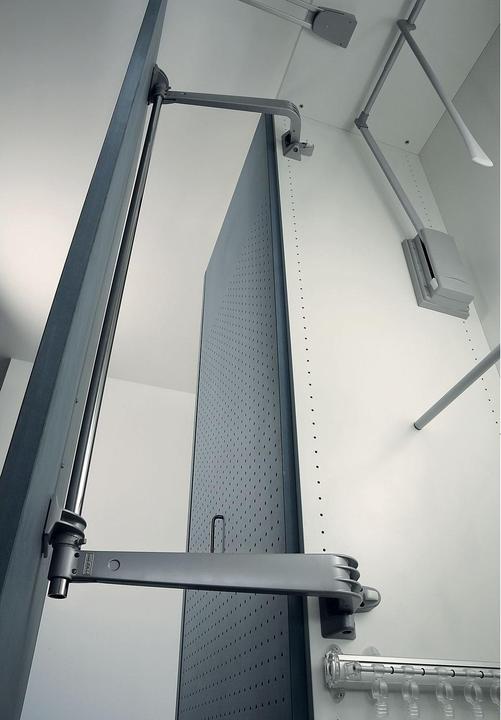

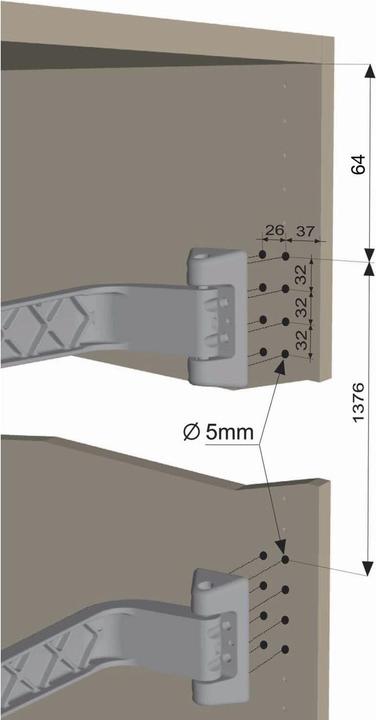

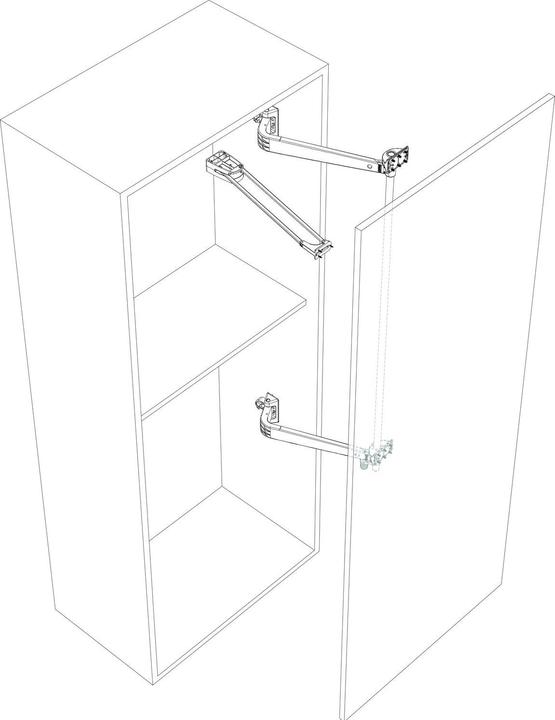

The advantages of the Motion-V lie in the easy and quick installation of cabinet doors. In addition to the space-saving movement, the fitting allows for the complete opening of the cabinet. It can be used on both the left and right for cabinet doors thicker than 20 mm and offers three-dimensional adjustment. Note: Door thickness > 20 mm, body thickness at least 20 mm. The handle is positioned in the center of the door, while the swing arms are positioned near the bottoms.

Scope of delivery:

• 2 aluminum die-cast swing arms in gray
• 1 steel connecting traverse, chrome-plated, length 1500 mm
• 1 parallel swing arm

Load capacity (kg): 15 - 50
Type: Motion V
Body height (mm): 1600 - 2600
Material: Aluminum die-cast
Surface: gray
Interior width (mm): 880 - 980
Swing range (mm): 943
Brand: Servetto
Contents (ST): 1.
