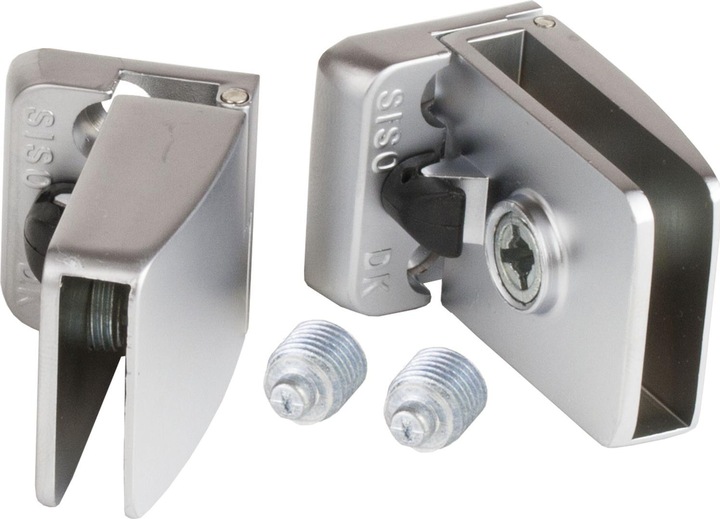

For internal glass doors with clamp fastening and spring mechanism. Suitable for smaller glass doors, such as glass cabinets. Features clamp fastening of the glass pane and side panel screw fastening with countersunk wood screws.

Scope of delivery:

• 1 hinge for the top
• 1 hinge for the bottom
• 2 clamping screws for undrilled glass (pre-assembled)
• 2 clamping screws for 5 mm drilled glass (enclosed)

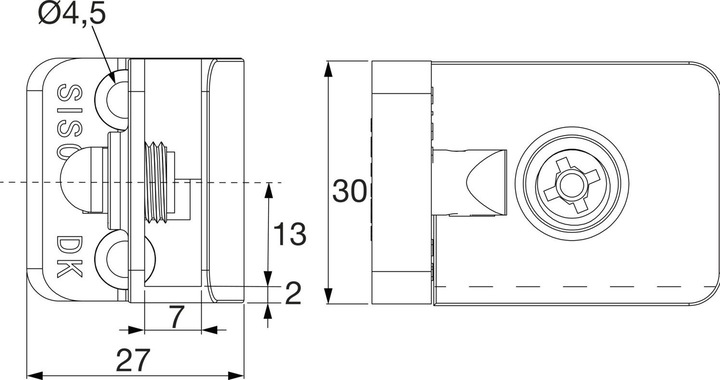

Type: Square
Material: Zinc die-cast
Glass thickness up to (mm): 6
Glass thickness from (mm): 4
Surface: Matt chrome
Width (mm): 43
Sash height to (mm): 1000
Sash width to (mm): 400
Height (mm): 30
Opening angle (°): 115
Brand: Siso
Contents (PAA): 1.
