Get a clear view despite bright light with the welding helmet X-BASIC. Take advantage of its good optical properties and lightweight design. The automatic safety helmet reliably protects you during all common welding methods and offers a full overview in color. It features an adjustable light protection bandwidth of DIN 4 / 5 - 8 / 9 - 13. With a self-test function, you can optimally adjust the light protection to your needs. A 100 x 60 mm viewing area keeps all essential details in sight. With a very fast 1/25000 s response time from light to dark, you are protected from harmful arc beams at all times. The long-life cartridge is powered by solar cells and contains a replaceable CR2450 battery with an operating time of 5000 hours as a backup.

Technical details:

• Blackout control: fully automatic
• Switch: knob
• UV/IR protection: up to DIN 16
• Brightness mode range: DIN 4 / DIN 5 - 9
• Storage temperature: -20 to 70 °C
• Filter cartridge size: 133 × 114 × 10 mm
• Delay: 0.2 - 1.0 s
• Power supply: solar cells and replaceable lithium battery (1 × CR2450)
• Light protection: DIN 4 / 5 - 8 / 9 - 13
• Display field of view: colored
• Material: nylon (polyamide)
• Colour: black
• Field of view: 100 x 60 mm
• Angle adjustable: 120
• Response time: 1/25000
• Arc sensors: 4
• Homogeneity: 1
• Optical class: 1
• Viewing angle dependence: 2
• Stray light: 1
• Grind mode: yes

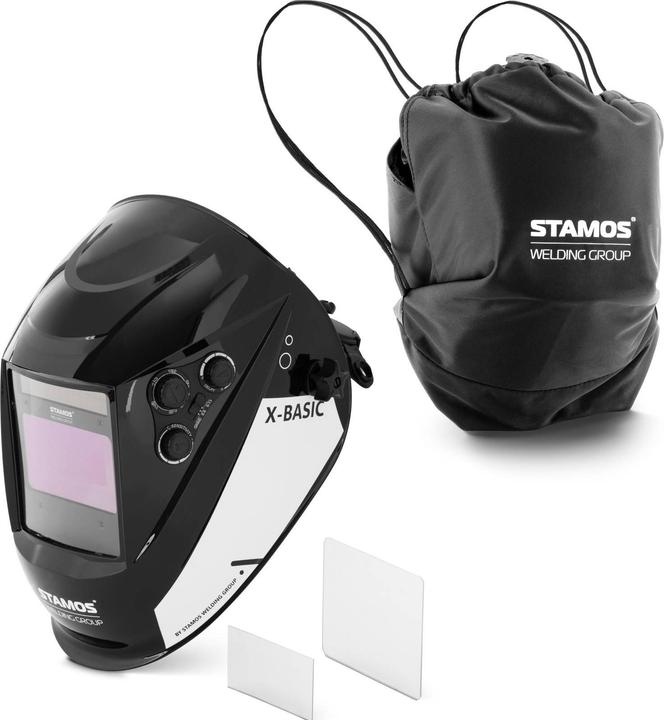

Delivery includes:
X-BASIC welding helmet, protective bag, set of protective lenses (inside and outside), instruction manual.
