Product details

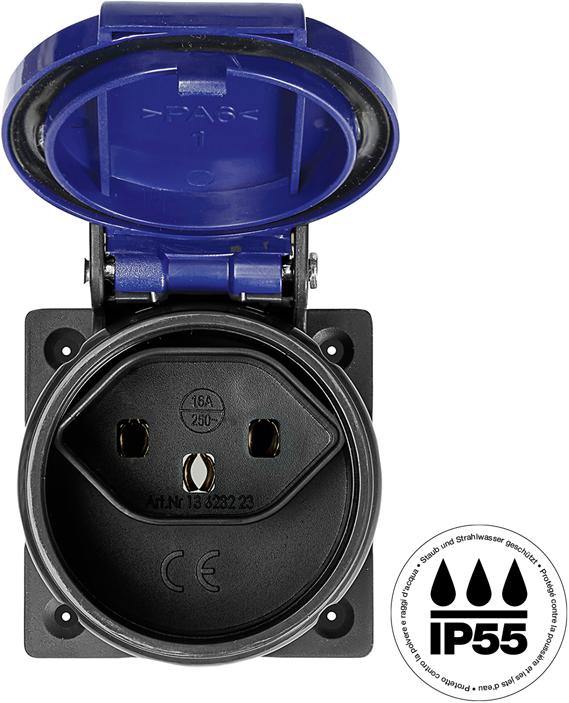

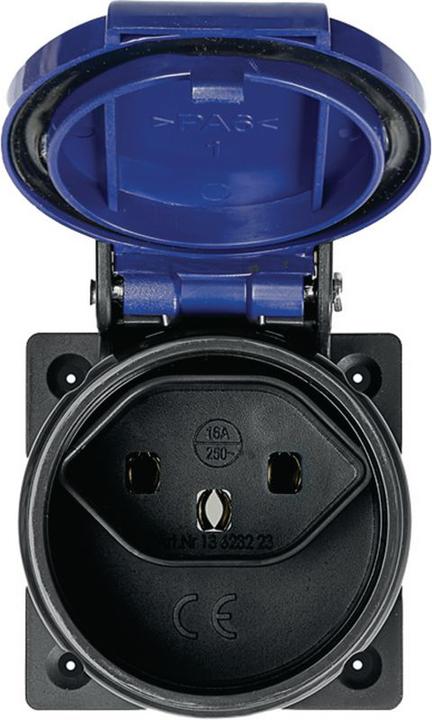

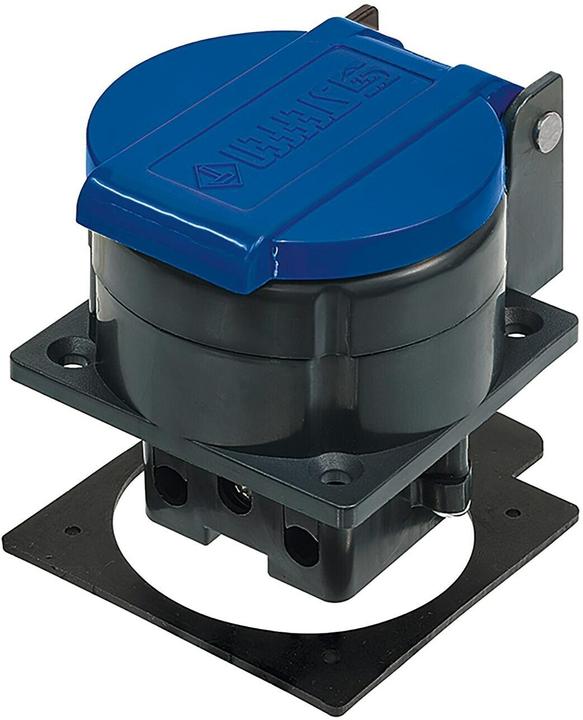

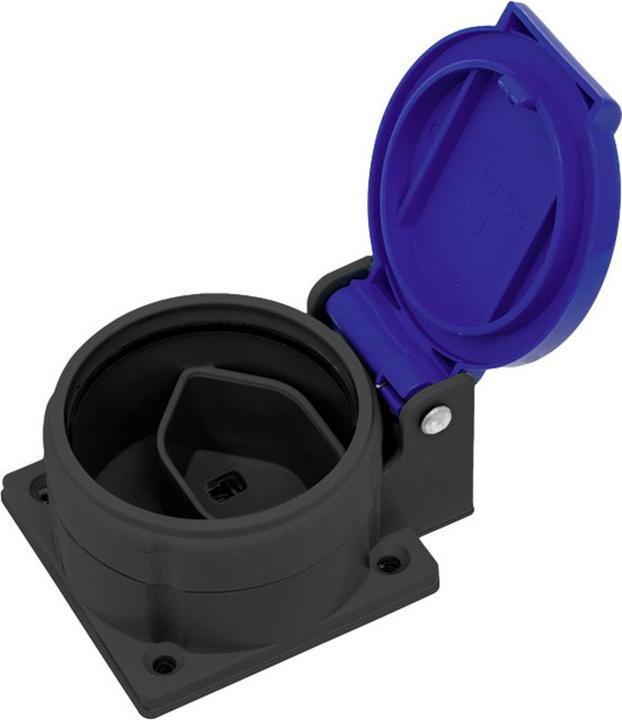

The Steffen machine flush-mounted socket is a reliable solution for safe power supply in various applications. It features a TYPE 23 connection that supports a nominal voltage of 250 V and a nominal current of 16 A. This socket is designed for flush installation and offers an IP55 protection rating, meaning it is protected against contact as well as dust and water spray. The flush-mounted socket comes with a gasket and pre-assembled screws, making installation easier. The housing is made of robust polyamide, known for its durability and resilience. The combination of an anthracite-colored housing and a blue cover provides an appealing look that fits into various environments. This socket is ideal for indoor use and offers a practical solution for powering machines and devices.
- IP55 protection rating for optimal contact and dust protection
- Flush installation for aesthetic integration into walls
- Robust polyamide housing for high durability
- Includes gasket and pre-assembled screws for easy installation
- A T23 connection for versatile applications.
Number of cans | 1 x |
mounting style | Built-in |
Socket type | Type 23 |
Area of use | Inside, Outside |
Exact colour description | Blue, Dgrey |
Item number | 14182465 |
Manufacturer | Steffen |
Category | Sockets |
Manufacturer no. | 13 6282 23 |
Release date | 11.11.2020 |
Colour | Blue, Grey |
Exact colour description | Blue, Dgrey |
Material group | Plastic |
Material | Plastic, Polyamide |
Socket type | Built-in socket |
Socket type | Type 23 |
Number of cans | 1 x |
Protection type (IP code) | IP55 |
Nominal current | 16 Ah |
Nominal voltage | 250 V |
Area of use | Inside, Outside |
mounting style | Built-in |
connector type | Screw connection |
Smart Home | Not compatible |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Stack depth | 2.60 cm |
Cable length | 61.50 m |
Length | 6.15 cm |
Width | 5.05 cm |
Height | 5 cm |
Weight | 60 g |
Length | 6.60 cm |
Width | 5.30 cm |
Height | 6.20 cm |
Weight | 62 g |
