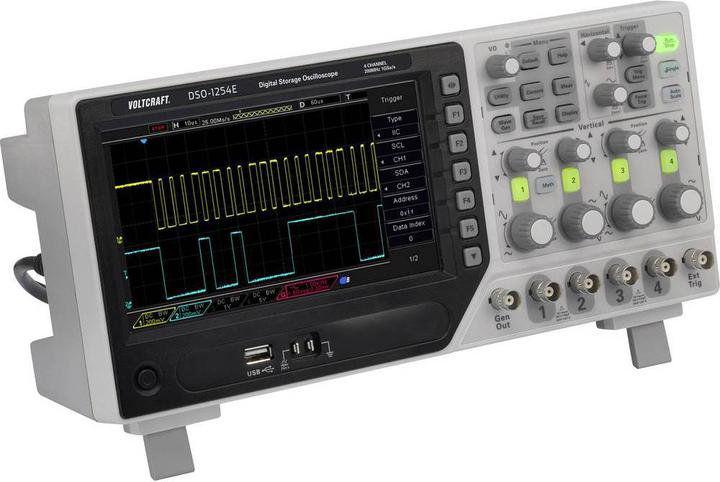

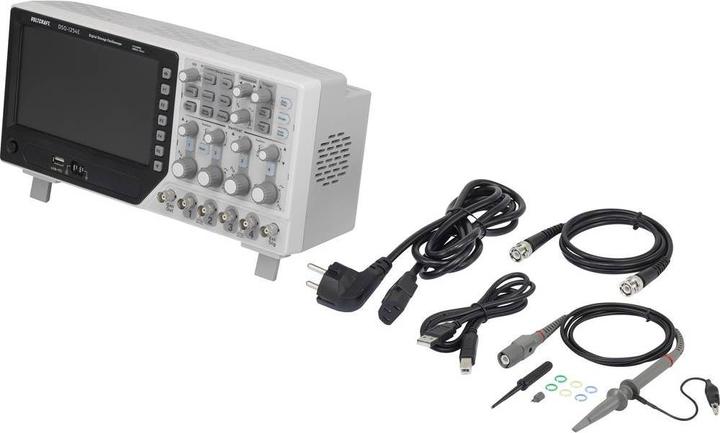

The entry-level model in the field of digital storage oscilloscopes. The device features four channels with a bandwidth of 200 MHz and a maximum real-time sampling rate of 1 GSa/s. The memory depth is 64 kpts, with up to 1 Mpts available when using only one channel. The 17.7 cm (7 inch) color display has a resolution of 800 x 480 pixels and offers excellent readability. Combined with the USB host for storing data on an optional stick, your digital oscilloscope DSO-1204F is nearly unbeatable. Automatic measurement functions including FFT, extensive trigger options, a USB interface, a multilingual help menu, and software included in the standard delivery perfectly round out the features of your oscilloscope.

Integrated function generator: Thanks to a built-in function generator in the oscilloscope, no additional device is required. Signals can be fed into the circuit under test and immediately captured with the oscilloscope. The function generator can generate signal shapes such as sine (up to 25 MHz), square (up to 10 MHz), ramp (up to 1 MHz), and EXP (rise/fall up to 5 MHz).

Calibration to factory standard: A factory calibration is performed as part of quality assurance during the production of the measuring device. This is sufficient for general measurements and ensures compliance with the tolerance limits as specified in the technical data. The technical data is provided in the user manual. A certificate is not issued in this case.

Special feature: Digital storage (DSO), function generator.
