Dimensions and technical details:

• Voltage: 220-240 Volt
• Frequency: 50 Hertz
• Various options available
• Housing colour: white
• Housing material: UV-resistant ABS plastic
• Nominal size: 90 mm
• Maximum wattage: 14 W
• Maximum current consumption: 0.08 A
• Revolutions per minute: 2500
• Speed levels: 1
• Maximum airflow rate: 65 m³/h
• Total pressure Pmax: 25 Pa
• Sound pressure level Lp-3m: 29.6 dB(A)
• Maximum temperature for continuous operation: 50°C
• Protection code: IPX4
• Protection class: II
• Weight: 0.55 kg
• Thermal overload protection

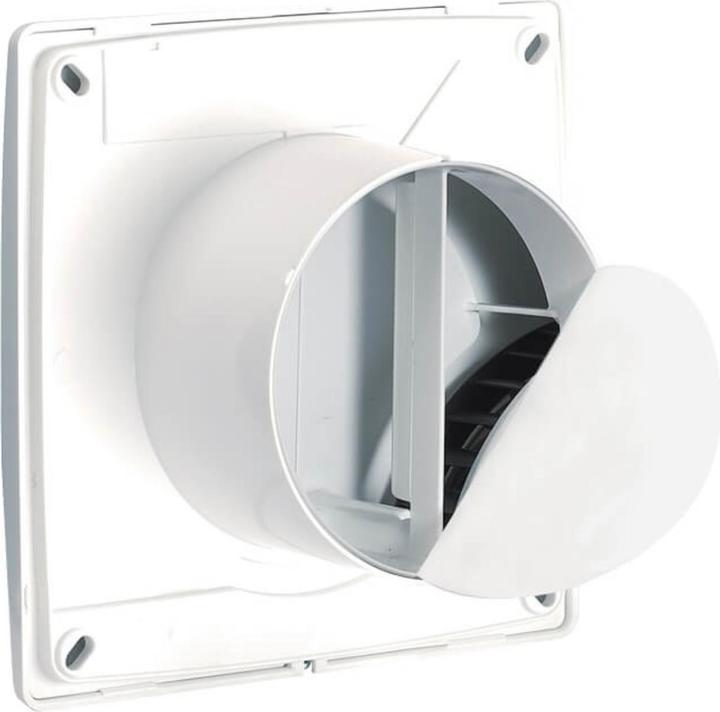

• Integral shutter flap prevents cold air from infiltrating
• Used to extract air from the inside directly to the outside
• Mounting options: wall mounting (horizontal, vertical, diagonal position)
• Optional condensation gasket for ceiling installation kit sold separately

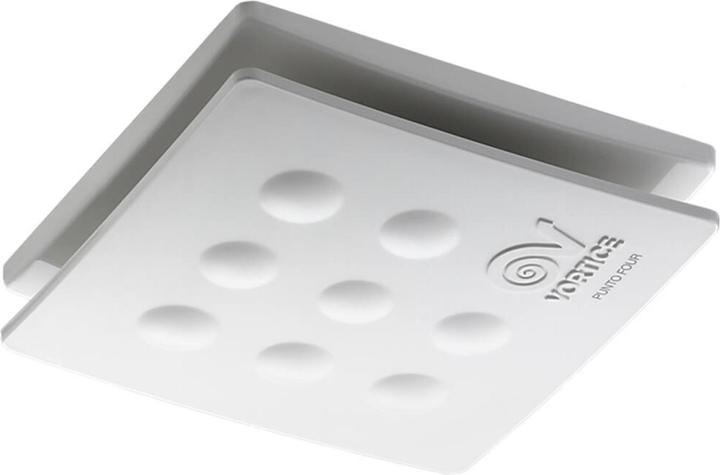

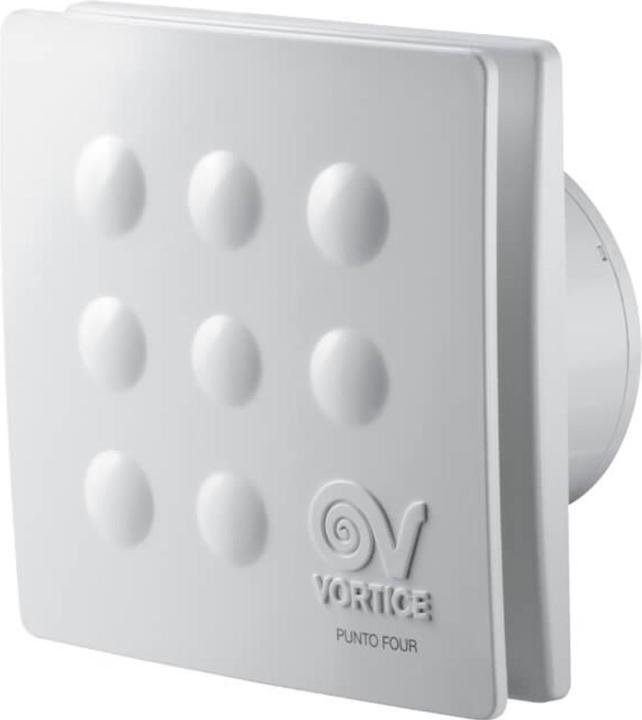

Type: Punto Four MFO 90
Equipment: Standard
Controller: Can be added

Type: Punto Four MFO 90 T
Equipment: Time delay (adjustable).
