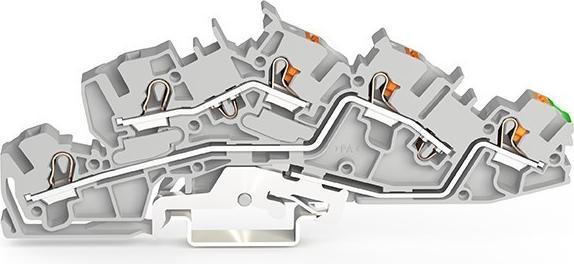

WAGO GmbH & Co. KG Installation floor terminal 2205-7545 Manufacturer :WAGO GmbH & Co. KG Designation :Installation floor terminal 4 mm² Hybrid Type :2205-7545 Connectable conductor cross-section fine stranded without ferrule :0.5..6 mm² Connectable conductor cross-section finely stranded with ferrule :0.75..4 mm² Connectable conductor cross-section solid :1..6 mm² Connectable conductor cross-section stranded :0.5...4 mm² Rated current In :40 A Rated voltage :250 V Electrical connection version 1 :Spring-cage connection Electrical connection version 2 :Spring-cage connection Number of potentials :3 Mounting type :Top-hat rail TH35 Insulator material :Thermoplastic Operating temperature :105 °C Flammability class of the insulating material according to UL 94 :V0 Width :6.2 mm Height :123.5 mm Depth :45.6 mm End plate required :yes Basic colour :grey With PE function :yes With N-disconnect slide :no N-function possible :no WAGO GmbH & Co. KG Installation floor clamp 2205-7545: more details Installation floor clamp with actuation opening and push-button 4 mm² L/L/PE Push-in CAGE CLAMP® 4.00 mm² grey , EAN: 4066966165272.
