Yuasa Battery YPC22-12
12 V, 22 Ah7 items in stock at third-party supplier
Product details

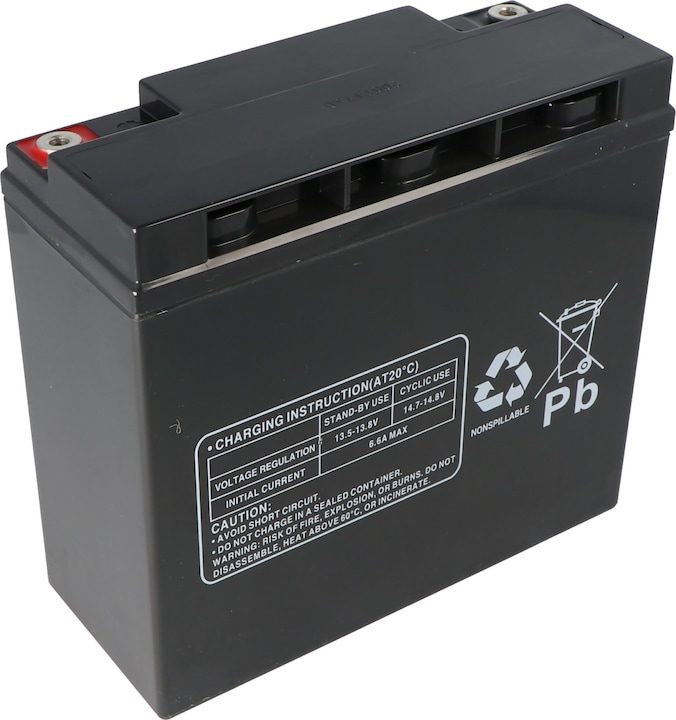

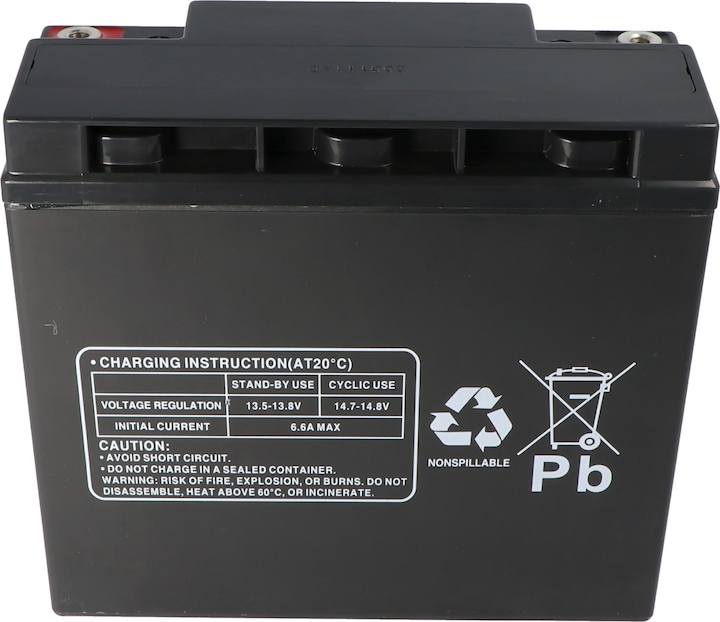

Lead-Acid Battery Yuasa YPC22-12
- With M5 screw connection
- Cycle-resistant design
The areas of application for these products include wheelchairs, golf trolleys, lawn mowers, lighting, toy cars, sprayers, photovoltaics, robotics, communication systems, power tools, pumps, measuring devices, magnetic lifts, driverless transport systems, and similar applications. It offers a long lifespan with a low self-discharge rate of approximately 3% per month at 20 °C. The temperature ranges for charging are: -15 °C to +50 °C, for discharging: -15 °C to +60 °C, and for storage: -20 °C to +60 °C.

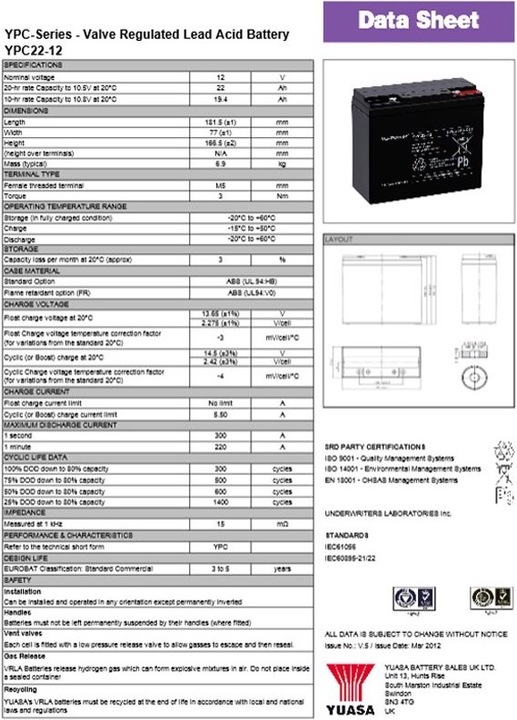

Technical specifications:
Manufacturer: Yuasa
Manufacturer designation: YPC22-12
System: Lead-acid battery
Voltage: 12 volts
Capacity: 22 Ah

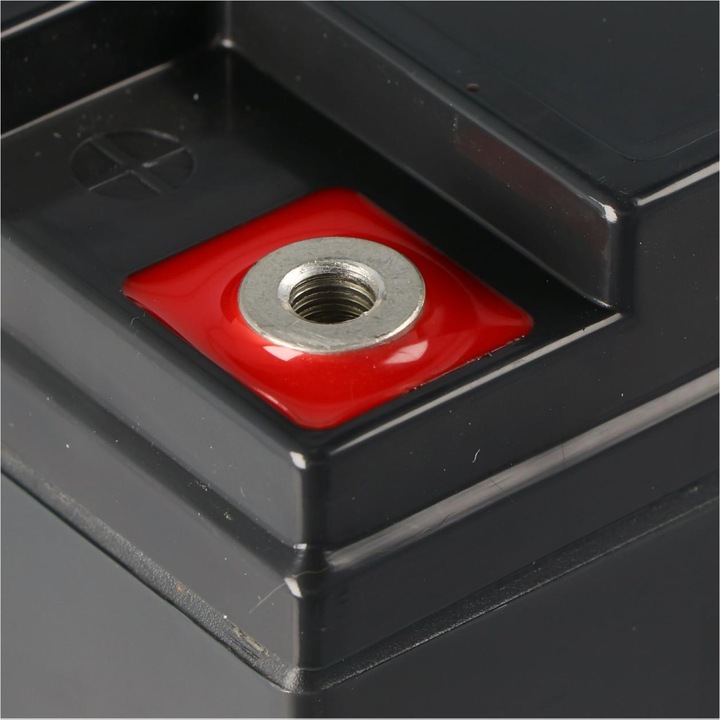

Connection: M5 screw connection
Weight: 6.9 kg
Dimensions: Length 181.5 mm, Width 77 mm, Height 166.5 mm
Lifespan: up to 3-5 years according to Eurobat hG. Low maintenance and valve-regulated construction combined with high-performance plates and a unique separator system result in double the lifespan of Yu batteries compared to conventional batteries. Double cycle usage duration: Yu batteries provide 500 charge/discharge cycles or twice as many cycles as conventional batteries in cyclic use at 75% D.O.D. (depth of discharge). Valve-regulated and maintenance-free: The electrolyte is firmly bound in the separator. Due to the innovative gas recombination system, only minimal gas escapes, making maintenance unnecessary. Yuasa's latest technology in plate boundary layer prevention and the unique separator system significantly extend the battery's lifespan even in deep discharge operation. Batteries in cyclic operation are often stored discharged after use, which leads to sulfation of the plates and reduced lifespan. The self-discharge rate of Yu batteries is only 0.1% per day.
Battery type | Supply battery |
Length | 181.50 mm |
Width | 77 mm |
Item number | 12840327 |
Manufacturer | Yuasa |
Category | Car batteries |
Release date | 4.3.2020 |
Battery type | Supply battery |
Voltage | 12 V |
Capacity | 22 Ah |
Delivery condition | Ready for immediate use (Filled & Loaded) |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 181.50 mm |
Width | 77 mm |
Height | 166.50 mm |
Weight | 6.90 kg |

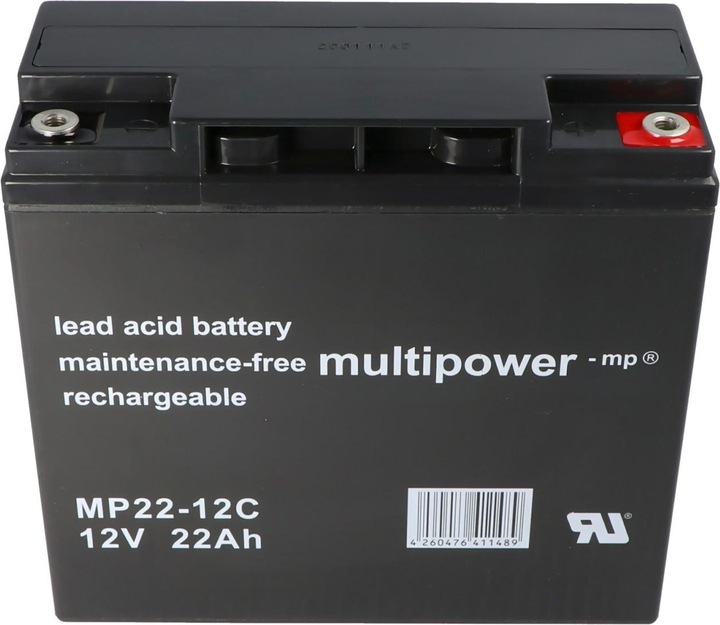

Ingredients | Yuasa YPC22-12 lead-acid battery (no longer available - supplied with Multipower MP22-12C lead-acid battery) with M5 screw connection Cycle-proof design The areas of application are in the products wheelchair, golf trolley, lawn mower, lighting, toy car, sprayer, photovoltaic, robotics, communication systems, power tools, pumps, measuring devices, magnetic lifts, driverless transport systems and similar applications.lighting, toy cars, sprayers, photovoltaics, robotics, communication systems, power tools, pumps, measuring devices, magnetic lifts, driverless transport systems and similar applications. Long service life with low self-discharge of approx. 3% per month at 20° C, the temperature ranges for charging: -15° C to +50° C, for discharging: -15° C to +60° C and for storage: -20° C to +60° C Technical data Manufacturer Yuasa, manufacturer's designation YPC22-12 (supplied instead of Multipower lead-acid battery MP22-12C)System lead-acid battery, voltage 12 volts, capacity 22AhConnection M5 screw terminal, weight 6.9 kgDimensions Length 181.5 mm, width 77 mm, heightLength 181.5 mm, width 77 mm, height 166.5 mmLife expectancy up to 3-5 years according to Eurobat hLow maintenance and valve-regulated design in combination with high-performance plates and the unique separator system result in twice the service life of Yu batteries compared to conventional batteries. Double the cycle life - YU batteries deliver 500 charge/discharge cycles or twice as many cycles as conventional batteries in cyclic use at 75% D.O.D. (depth of discharge). Valve-regulated and maintenance-free: the electrolyte is firmly bound in the separator. The innovative gas recombination system minimises gas leakage, so that no maintenance is required. Yuasa's state-of-the-art plate boundary layer prevention technology and the unique separator system help to significantly extend battery life, even in deep discharge mode. Batteries in cyclic operation are often stored discharged after use, which leads to sulphation of the plates and shortens the service life. The self-discharge rate of YU batteries is only 0.1% per day at 20°C. This extends the possible storage time. Higher capacities with the same dimensions as standard cyclic batteries. |
