OBO Bettermann ASL 733 36 ALU spacer clamp with slotted hole 30-36mm aluminium 1362826
On this page you'll find a ranking of the best OBO Bettermann products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
Spacing clamp for mounting pipes and cables on walls, ceilings, and floors. With self-locking top. Attachment via elongated hole. Suitable for mounting with a nail gun or bolt setting device starting from clamp size 20. Approved for functional integrity according to DIN 4102 Part 12, functional integrity classes 30 to 90 except for aluminum. ASL 733 36 Aluminum.
OBO Bettermann ASL 733 36 ALU spacer clamp with slotted hole 30-36mm aluminium 1362826

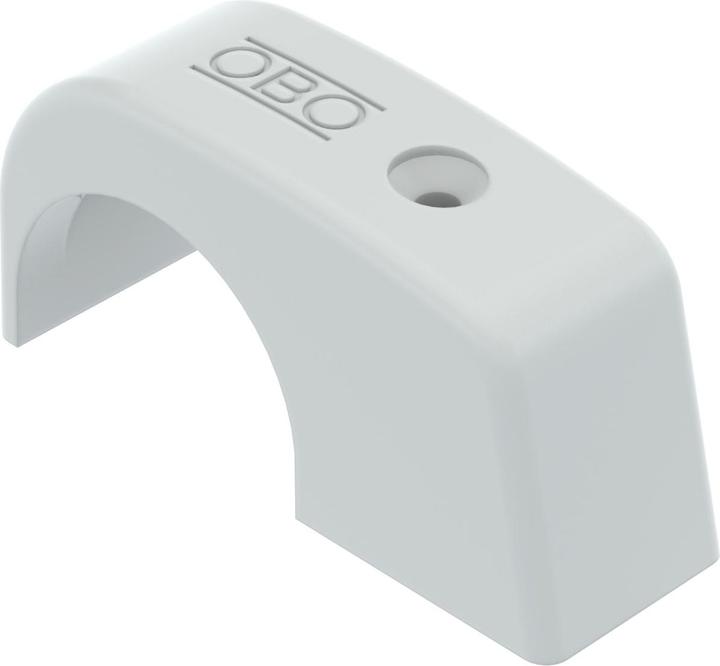

The OBO Bettermann cable clip 2032 1x8 in light gray is a practical solution for securely fastening cables in various installations. This cable clip is specifically designed for use with NYM cables of size 3x1.5 mm and can accommodate up to eight wires. Made from high-quality plastic, the clip is halogen-free, making it an environmentally friendly choice. The standard version is ideal for general applications, such as in false ceilings or partition walls. With a clamp height of 9 mm and a mounting hole diameter of 6 mm, it is easy to install and provides a reliable hold for cables.
- Halogen-free and environmentally friendly
- Suitable for NYM cables 3x1.5 mm
- Clamp height of 9 mm, with spacer 13 mm
- Easy installation with 6 mm Ø mounting hole.
The OBO Bettermann cable clamp 2033 is a versatile solution for securely fastening cables in various installations. This cable clamp is specifically designed for use with NYM cables of size 3x1.5 mm² and is ideal for applications in suspended ceilings and partition walls. Made from high-quality plastic, it offers a reliable and durable solution for cable organization. The clamp has a clamping height of 9 mm and can be increased to 13 mm with a spacer, allowing for flexible adjustment to different installation requirements. The cable clamp is halogen-free, making it a safe choice for use in various environments.
- Suitable for securing up to 16 NYM 3x1.5 cables
- Flame resistance is not provided, but it is halogen-free
- Mounting hole with a diameter of 6 mm
- Standard version for general applications in electrical installation.
The OBO 4024 16-23mm cable clamps are a reliable solution for securely fastening cables and wires. These high-quality cable holders are made from a robust combination of steel and plastic, providing them with high stability and durability. The clamps are suitable for diameters ranging from 16 to 23 mm and offer easy handling during installation. They are ideal for use in various applications, whether in industrial settings or private environments. The light gray color blends harmoniously into different surroundings, ensuring a discreet yet effective fastening. These products meet the high quality standards of OBO Bettermann.
- Made from a sturdy steel-plastic combination
- Suitable for cable diameters of 16 to 23 mm
- Easy installation and handling
- Durable and resistant to environmental influences.
Surface clamp for the installation of metric steel armored pipes, light and heavy insulation pipes, as well as Quick-Pipe electrical installation pipes. Universal mounting options for walls and ceilings in indoor and protected outdoor areas. Features an elongated hole for lateral alignment when mounting with wood screws or expansion anchors. Tool-free pipe installation. Can be connected in series with OBO Multi-Quick or starQuick clamps. Size M16 M32 can be screwed onto M6 threads. Mounting distance 50-60 cm, maximum pull-out values at 20 degrees Celsius see table. 2955 M50.
OBO SCVH 10-15 Beam clamp.
The OBO Haft-Clip nail clips are a practical solution for securely fastening cables with a bundle diameter of 10 to 14 mm. Made from high-quality polypropylene, these clips offer reliable and durable use. They come pre-mounted with a nail, making installation easy and time-saving. With a pack containing 100 pieces, they are ideal for various projects, whether in a professional or private setting. The gray color ensures discreet integration into different environments. These nail clips are not only functional but also versatile, making them a valuable addition to any toolkit.
- Made from robust polypropylene for durability
- Easy installation with pre-mounted nails
- Suitable for cable bundles with a diameter of 10 to 14 mm
- Supplied in a convenient pack of 100 pieces.
OBO Bettermann OBO adhesive clip 10-14 mm L40 grey 100 pcs 2228858L40GR

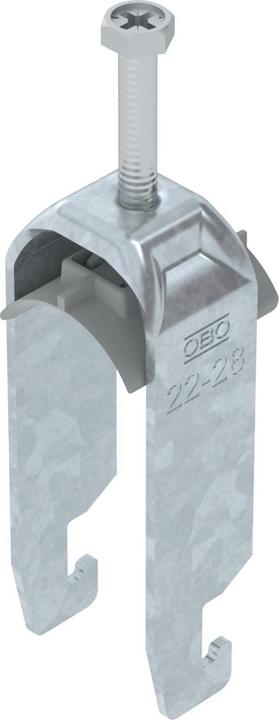

OBO Bettermann clamp clip BS-U2-K-28 FT
Manufacturer: OBO Bettermann
Designation: Clamp clip 2-28mm
Type: BS-U2-K-28 FT
Clamping range: 22-28 mm
For pipes (metric): 28
Max. number of cables: 2
Material of clamp: Steel
Surface protection clamp: Hot-dip galvanised
Material of tray: Plastic
Material grade of tray: Polypropylene (PP)
Surface protection tray: Hot-dip galvanised
Material of screw: Steel
Surface protection screw: Hot-dip galvanised
With counter trough: No
Type of mounting: Profile rail
Halogen-free: Yes
OBO Bettermann U-clamp BS-U2-K-28 FT: Further details
U-clamp with U-foot, plastic pressure trough made of polypropylene. For vertical and horizontal mounting of 2 single cables on C-profile rail. For slot width 18 - 22 mm. With 1-flight screw on pressure trough, universal hexagonal screw head SW10, with slot and cross recess. Suitable for indoor and outdoor installation. Several cables should be separated by double troughs. The use of a counterpan is recommended.
EAN: 4012196850891.
OBO Bettermann clamp BS-N1-K-46 FT
Manufacturer: OBO Bettermann
Designation: Clamp
Clamping range: 40 - 46 mm
For pipes (metric): 46
Max. number of cables: 1
Material of clamp: Steel
Surface protection clamp: Hot-dip galvanised
Material of tray: Plastic
Material grade of tray: Polypropylene (PP)
Surface protection tray: Hot-dip galvanised
Material of screw: Steel
Surface protection screw: Hot-dip galvanised
With counter trough: No
Type of mounting: Profile rail
Halogen-free: Yes
OBO Bettermann U-clamp BS-N1-K-46 FT: Further details
U-clamp with N-foot, plastic pressure trough made of polypropylene. For vertical and horizontal mounting of 1 single cable on C-profile rail. For slot width 11 - 12 mm. With 1-flight screw on pressure trough, universal hexagonal screw head SW10, with slot and cross recess. Suitable for indoor and outdoor installation. The use of a counter sump is recommended.
EAN: 4012196852932.

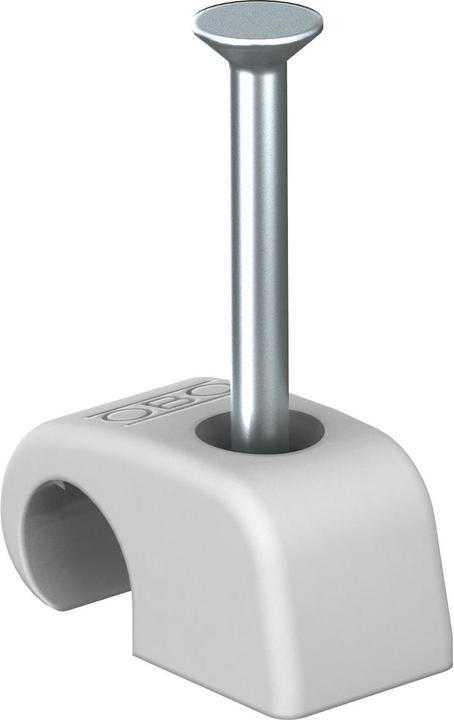

The OBO Bettermann Haft-Clip 2025 is a practical solution for securely fastening cables with a diameter of 4 to 7 mm. This clip is specifically designed to be clamped onto the cable, offering easy handling. With a robust plastic construction, the Haft-Clip ensures reliable and long-lasting use. It comes with a nail that allows for simple installation. The clip is available in a light gray color that blends unobtrusively into various environments. With a packaging unit of 100 pieces, the Haft-Clip is ideal for larger projects or applications where multiple cable holders are needed. Its compact size and lightweight design of only 1 gram per clip make it a convenient choice for cable organization.
- Easy installation with integrated nail
- Durable plastic construction for longevity
- Suitable for cable diameters of 4 to 7 mm.
