Best Katimex products in the Cable pullers category
On this page you'll find a ranking of the best Katimex products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Katimex Cable retraction system Kati Blitz compact
The Kati Blitz compact is the problem solver that allows cables to be pulled into conduits even under the most challenging conditions.
Features:
- Rotatable storage drum located inside
- No moving external parts
- Robust, impact-resistant housing
- Accessory compartment with lid
Scope of delivery:
2 pieces of spring guide heads with 7, 10 mm
5 pieces of pulling heads with eyelet, brass with M5 thread, 6 mm
1 piece of Kati Grip Powerdisk
1 piece of cable pulling sock with twist compensation for cables from 6-9 mm
5 pieces of starting sleeves, brass with M5 thread
3 pieces of connecting sleeves, brass
1 piece of special adhesive for Polykat
Technical data:
Band diameter: 3.0 mm
Minimum bending radius: 50 mm
Breaking force of band: 5.0 kN.
2. Katimex Cable grip with braided drawbar eye, cable Ø 4-6 mm
These cable pulling socks have been specifically designed for the installation of cables used in building projects. Pulling socks for building installations facilitate the pulling of power and communication lines, as well as multiple individual conductors. They are particularly flexible and can be used in pipes with small diameters. The pulling socks allow electricians to quickly and safely pull cables without the need to strip the cable beforehand or bend a pulling hook. They are simply slid over the cable sheath and grip firmly even with minimal pulling force. This allows multiple individual conductors to be pulled simultaneously. The cable pulling socks in this series are compatible with the Kati Blitz and Kabelmax pulling devices via the M5 threaded connection.
The effective length or nominal length is the resulting braid length on the cable when using an average cable diameter - the loop should then be square!
Features:
- High tensile strength, galvanized steel wire
- Easy to screw onto the fiberglass profiles - creating an effective pulling system
- The crimp sleeve ensures a force-locking connection between the loop and the braid
- Force is introduced gently over the entire braid length - preventing point loads and subsequent damage
- The ends of the socks are not soldered or crimped but are braided back to the beginning of the sock - eliminating the risk of injury to both people and cables
Selection criteria:
Cable diameter: 4-6 mm
Effective length: 100 mm
Installation pulling force: 1.3 kN
Technical data:
Weight: 6 g
Article number: KAT108076.
3. Katimex Cable grip with twist compensation, cable Ø 6-9 mm
Features:
- High tensile, galvanised steel strands
- Easy to screw onto the glass fibre profiles, creating an effective pulling-in system
- Press sleeve ensures a force-fit connection between loop and braid
- Force is applied gently over the entire length of the braid, avoiding point loading and resulting damage
- Ends of the stockings are not soldered or pressed, but braided back to the beginning of the stocking, eliminating the risk of injury to people and cables
Selection criteria:
Cable diameter: 6-9 mm
Effective length: 120 mm
Traction force: 1.3 kN
Technical data:
Practical breaking load: 2.0 kN
Material: Steel, galvanised
Connection: M5 threaded connection
Weight: 5 g
Item number: KAT108060
Shop number: 142339.
4. Katimex Cable pulling sock with braided pulling eye, cable-Ø 19-25 mm
These cable pulling sleeves have been specially developed for laying cables used in building installation. Pulling sleeves for building installation make it easier to pull in power and communication cables as well as several individual wires. They are particularly flexible and can also be used in pipes with a small diameter. The pulling sleeves for building installation enable the electrician to pull in the cable quickly and safely without having to strip the cable and bend a pulling hook beforehand. They are simply slipped over the cable sheath and grip tightly even at low tensile loads. This means that several individual wires can be pulled in at the same time. The cable pulling sleeves of this series are compatible with the Kati® Blitz and Kabelmax® pulling devices via the M5 threaded connection.
The effective length or nominal length is the resulting braid length on the cable when using a medium cable diameter - the mesh should then be square!
Features:
- high tensile strength, galvanised steel braid
- easy to screw onto the glass fibre profiles - this creates an effective pulling-in system
- Press sleeve ensures a force-fit connection between loop and braid
- Force is applied gently over the entire length of the braid - this avoids point loading and consequent damage
- Ends of the stockings are not soldered or pressed, but braided back to the beginning of the stocking - this eliminates the risk of injury to people and cables
-----------------------------
Selection criteria:
Cable ß: 19-25 mm
effective length: 290 mm
Traction force: 7.8 kN
-----------------------------
Item number: KAT108064
Shop number: 142237.

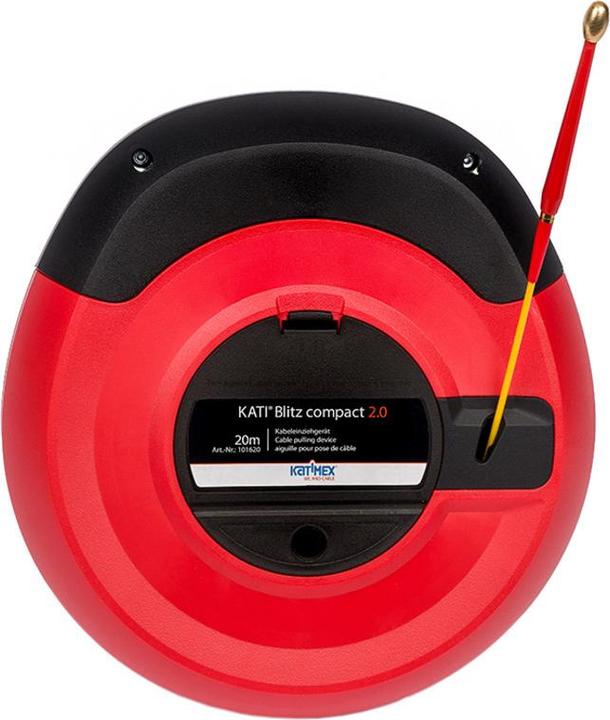

5. Katimex Cable pulling system Kati Blitz Compact 2.0, 20 m
The Kati Blitz Compact 2.0 cable pulling system from Katimex is an innovative solution for pulling cables into empty conduits. With a length of 20 meters, this system offers an efficient way to install cables with a diameter of up to 3 mm. It combines the proven features of the Kati Blitz compact with the advantages of the new starter sleeve 2.0, significantly improving handling and performance. The ergonomic design and user-friendly crank make winding the Polykat fiberglass tape particularly easy. The Flexisonde 2.0 allows for a tight bending radius of just 30 mm, increasing flexibility in application. Additionally, the fiberglass-reinforced tape outlet ensures high wear resistance and includes a backstop to prevent unwanted retraction of the tape. The Kati Blitz Compact 2.0 is therefore an essential tool for professionals who value quality and efficiency.
- Ergonomic design for improved handling
- Flexisonde 2.0 allows for a bending radius of just 30 mm
- Wear-resistant, fiberglass-reinforced tape outlet with backstop
- Compatible with accessories from the Kati Blitz and Kabelmax series.

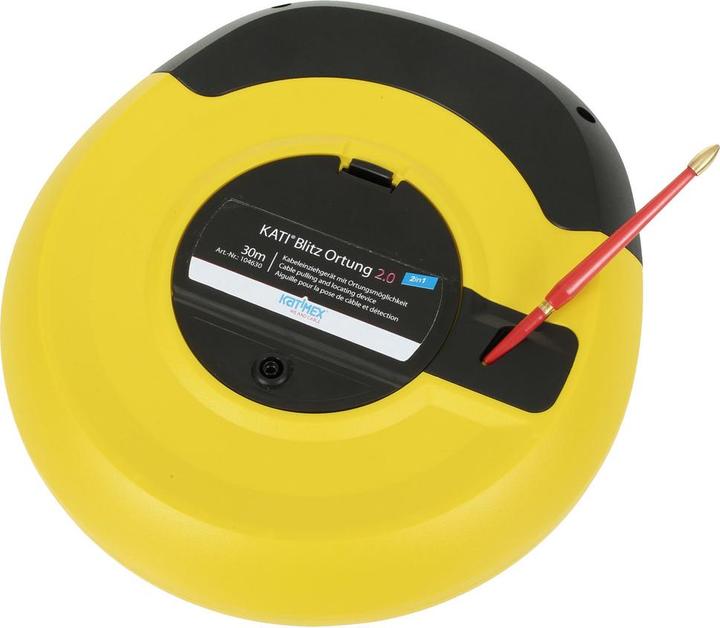

6. Katimex Cable retraction system Kati Blitz locating 2.0, 30 m
The Kati Lightning Locator 2.0 is the solution for not only pulling in cables but also locating pipe closures and blockages.
Features:
- Internal, replaceable slip ring transmitter for connection of commercially available cable locators and locating devices
- Effortlessly overcomes long, winding distances
- Also works in occupied pipe systems where other retraction systems fail
Scope of delivery:
- 5 pulling heads with base, brass with thread M5, diameter 6 mm
- 1 cable pulling sock with twist compensation for cable diameter 6-9 mm
- 2 initial sleeves 2.0, with external thread M5
- 3 connecting sleeves, brass
- 1 special glue for Polykat, 3 g
- 1 flex probe 2.0, diameter 7 mm
- 1 flexi probe 2.0, diameter 10 mm
Selection criteria:
Tape length: 30 m
Technical data:
Tape diameter: 3.0 mm
Minimum bending radius: 30 mm
Breaking force tape: 5.0 kN
Weight: 1,000 g
Item number: KAT104630.

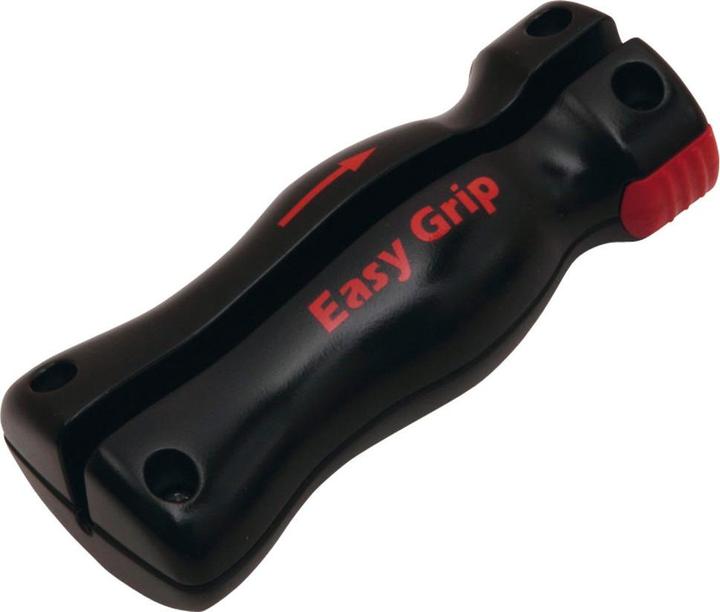

7. Katimex 101070
The Easy Grip hand-pulling device from Katimex is an innovative cable pulling system designed for the efficient installation of power and data cables. It allows for effortless insertion of fiberglass profiles with a diameter of 3 mm, which is particularly advantageous for long cable runs and angled conduits. The device is made from high-tech, wear-resistant plastic and features an ergonomic shape suitable for both right- and left-handed users. With a pulling load capacity of up to 20 kg, it is robust and reliable. Its compact design and lightweight of 90 grams make it easy to handle and transport. The Easy Grip hand-pulling device is therefore a practical solution for professionals seeking a time-saving and strain-reducing method for cable installation.
- Ergonomic design for comfortable handling
- Wear-resistant plastic for high durability
- Suitable for both right- and left-handed users
- Pulling load capacity up to 20 kg for reliable performance.
8. Katimex Cable grip with twist compensation, cable Ø 4-6 mm
Features:
- High tensile, galvanised steel strands
- easy to screw onto the glass fibre profiles - this creates an effective pulling-in system
- Press sleeve ensures a force-fit connection between loop and braid
- Force is applied gently over the entire length of the braid - this avoids point loading and the resulting damage
- Ends of the stockings are not soldered or pressed, but braided back to the beginning of the stocking - this eliminates the risk of injury to people and cables
-----------------------------
Selection criteria:
Cable ß: 4-6 mm
effective length: 100 mm
Traction force: 1.0 kN
-----------------------------
Technical data:
practical breaking load: 2.0 kN
Material: steel, galvanised
Connection: M5 threaded connection
Weight: 6 g
Item number: KAT108066
Shop number: 142338.

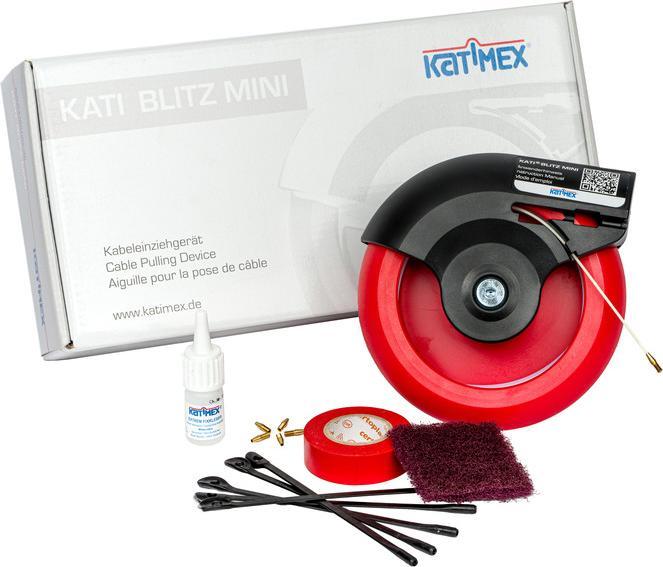

9. Katimex Cable retraction system Kati Blitz Mini, set, 25 m
The Kati Blitz Mini cable pulling system from Katimex is an innovative solution for retrofitting fiber optic cables into already occupied conduits. With a cable length of 25 meters, this system is specifically designed to meet the increasing demand for fast internet connections and higher data transmission rates. The Kati Blitz Mini enables efficient fiber optic cable installation by facilitating the process within existing cabling systems. The Polykat Mini fiber optic profile offers high tensile strength and push stability, while the small bending radius of just 15 mm allows for maneuvering through tight spots and curves. The swivel cassette ensures that the band automatically unwinds, minimizing the effort required during insertion. Additionally, replacing the spare bands is straightforward, as they are wound to the same length and directly in a cassette. The low-friction guiding tube provides extra protection and stability during the insertion and retraction of the profile.
- Flexi Probe Mini for navigating tight spots and curves
- Swivel cassette for easy insertion of the band
- High recovery force of the Polykat Mini for automatic unwinding of the band
- Low-friction guiding tube for protection and guidance of the profile.
10. Katimex Cable retraction system Kati Blitz Compact 2.0, 50 m
Features:
- Combines the advantages of the Kati Blitz compact with those of the Starting Sleeve 2.0, elevating the Kati Blitz to a whole new level.
- Empty conduits can be navigated even more easily, and cables can be pulled in with greater simplicity.
- The optimal tool for true professionals.
- Impresses with improved ergonomic design, user-friendly handling, and proven practical functions.
- The Flexi Probe 2.0 and Starting Sleeve 2.0 allow for an even tighter bending radius of just 30 mm.
- The fiberglass-reinforced cable outlet is particularly wear-resistant.
- Includes a practical service compartment with extensive accessories.
- Tested tensile strength of the adhesive connection between tape/sleeve: 1 kN.
Delivery includes:
1 piece of Kati Blitz Compact 2.0, 50 m
5 pieces of pulling heads with sleeves, brass with M5 thread, diameter 6 mm
1 piece of cable pulling sock with twist compensation for cable diameters of 6-9 mm
2 pieces of Starting Sleeve 2.0 with external M5 thread
3 pieces of connecting sleeves, brass
1 piece of special adhesive
1 piece of Flexi Probe diameter 7 mm
1 piece of Flexi Probe diameter 10 mm
Selection criteria:
Tape length: 50 m
Technical data:
Breaking strength of tape: 5.0 kN
Tape diameter: 3.0 mm
Minimum bending radius of tape: 30.0 mm
Tape length: 50.0 m
Weight: 2 kg
Article number: KAT101650-FBA
Shop number: 147147.
