Best Dr. Hahn products in the Door fittings category
On this page you'll find a ranking of the best Dr. Hahn products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Dr. Hahn Drilling jig cock series 4
Drilling jig for door hinge type 4, 3-part drilling distance 86mm.
2. Dr. Hahn HAHN door hinge 4 AT, 2-part 20/62.5/58 with anchor bolt, silver anodised
Hahn Door Hinge 4 AT two- and three-part. A new feature of these door hinges is the half measure zero, where the frame hinge part has been minimized in terms of space requirements. This new variant is particularly useful in situations where there is limited space on the frame side. The fastening is done through the hinge part. Whether using anchor screws, screw anchors, or mounting plates, all available Hahn fastening materials can be used for installation. Available for all common aluminum profiles. Combination options and fastening variants for doors that open inwards and outwards - even with change profiles and corner post constructions. Variants for doors with extreme construction widths as well as doors with narrow frame profiles. Load capacity up to 220 kg (three-part) or 180 kg (two-part) - depending on profile construction and application situation. Adjustable in six directions. Usable for DIN left/right. Opening angle > 180°. CE certified according to EN 1935:2002, hinge class 14. Technology / Application: suitable for aluminum shells up to a height of 23 mm. Horizontal adjustment infinitely ± 2.5 mm for faster processing. Height adjustment infinitely + 3 / - 2 mm without lifting or lowering the leaf. Seal pressure adjustment ± 0.5 mm on the installed door leaf. Fastening: anchor screws 58 mm. Delivery includes: anchor screws. Material: anodized silver aluminum. Type: SERIES 4 AT, two-part. Pivot point (mm): 20. Design: with anchor screw 58 mm. Center distance (mm): 62.5. Brand: Hahn. Factory number: M9031W000. Content (ST): 1.
Door fittings
EUR65,34
Dr. Hahn HAHN door hinge 4 AT, 2-part 20/62.5/58 with anchor bolt, silver anodised
3. Dr. Hahn HAHN door hinge 4 AT, 2-part 20/91.5/58 with anchor bolt, silver anodised
Hahn Door Hinge 4 AT two- and three-part. A new feature of these door hinges is the half-measure zero, where the frame hinge part has been minimized in space requirements. This new variant is particularly useful in situations where there is limited space on the frame side. The fastening is done through the hinge part. Whether anchor screw, screw anchor, or mounting plate, all available Hahn fastening materials can be used for installation. Available for all common aluminum profiles. Combination options and fastening variants for doors that open inwards and outwards - even with change profiles and corner post constructions. Variants for doors with extreme construction widths as well as doors with narrow frame profiles. Load capacity up to 220 kg (three-part) or 180 kg (two-part) - depending on profile structure and application situation. Adjustable in six directions. Usable DIN left/right. Opening angle > 180°. CE certified according to EN 1935:2002, hinge class 14. Technology / Application: suitable for aluminum shells up to a height of 23 mm. Horizontal adjustment continuously ± 2.5 mm for faster processing. Height adjustment continuously + 3 / - 2 mm without lifting or lowering the leaf. Seal pressure adjustment ± 0.5 mm on the installed door leaf. Fastening: anchor screws 58 mm. Delivery includes: anchor screws. Material: silver anodized aluminum. Design: with anchor screw 58 mm. Axis distance (mm): 91.5. Pivot point (mm): 20. Type: SERIES 4 AT, two-part. Brand: Hahn. Factory number: M9051W000. Content (ST): 1.
Door fittings
EUR61,20
Dr. Hahn HAHN door hinge 4 AT, 2-part 20/91.5/58 with anchor bolt, silver anodised

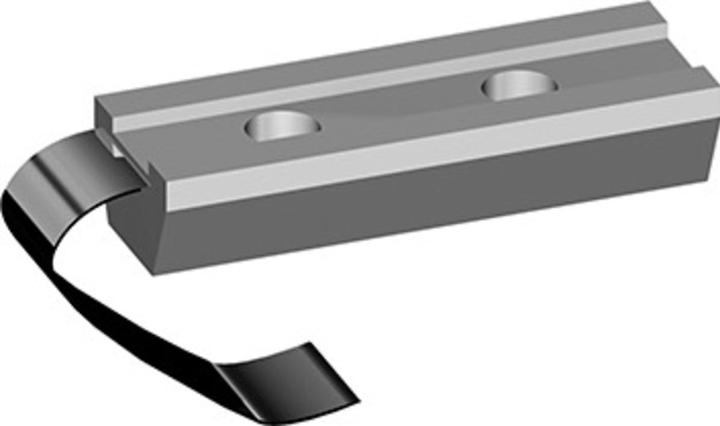

4. Dr. Hahn Mounting plates to 60 AT
Mounting plates for 60AT, 3-piece.
5. Dr. Hahn HAHN door hinge 4 AT, 2-part 20/86/58 with anchor bolt, silver anodised
Hahn Door Hinge 4 AT two- and three-part. A new feature of these door hinges is the half-measure zero, where the frame hinge part has been minimized in terms of space requirements. This new variant is particularly useful in situations where there is limited space on the frame side. The fastening is done through the hinge part. Whether anchor screw, screw anchor, or mounting plate, all available Hahn fastening materials can be used for installation. Available for all common aluminum profiles. Combination options and fastening variants for doors that open inwards and outwards - also applicable for change profiles and corner post constructions. Variants for doors with extreme construction widths as well as doors with narrow frame profiles. Load capacity up to 220 kg (three-part) or 180 kg (two-part) - depending on profile design and application situation. Adjustable in six directions. Usable for DIN left/right. Opening angle > 180°. CE certified according to EN 1935:2002, hinge class 14. Technology / Application: suitable for aluminum shells up to a height of 23 mm. Horizontal adjustment continuously ± 2.5 mm for faster processing. Height adjustment continuously + 3 / - 2 mm without lifting and lowering the leaf. Seal pressure adjustment ± 0.5 mm on the installed door leaf. Fastening: anchor screws 58 mm. Delivery includes: including anchor screws. Material: anodized silver aluminum. Pivot point (mm): 20. Center distance (mm): 86. Type: Series 4 AT, two-part. Design: with anchor screw 58 mm. Brand: Hahn. Factory number: M9111W000. Content summary (ST): 1.
Door fittings
EUR57,80
Dr. Hahn HAHN door hinge 4 AT, 2-part 20/86/58 with anchor bolt, silver anodised
6. Dr. Hahn HAHN door hinge 4 AT, 2-part 20/76.5/58 with anchor bolt, silver anodised
Hahn Door Hinge 4 AT two- and three-part. A new feature of these door hinges is the half-measure zero, where the frame hinge part has been minimized in terms of space requirements. This new variant is particularly useful in situations where there is limited space on the frame side. The fastening is done through the hinge part. Whether using anchor screws, screw anchors, or mounting plates, all available Hahn fastening materials can be used for installation. Available for all common aluminum profiles. Combination options and fastening variants for doors that open inwards and outwards - also applicable for change profiles and corner post constructions. Variants for doors with extreme construction widths as well as doors with narrow frame profiles. Load capacity up to 220 kg (three-part) or 180 kg (two-part) - depending on profile construction and application situation. Adjustable in six directions. Usable for DIN left/right. Opening angle > 180°. CE certified according to EN 1935:2002, hinge class 14. Technology / Application: suitable for aluminum shells up to a height of 23 mm. Horizontal adjustment stepless ± 2.5 mm for faster processing. Height adjustment stepless + 3 / - 2 mm without lifting or lowering the wing. Seal pressure adjustment ± 0.5 mm on the installed door leaf. Fastening: anchor screws 58 mm. Delivery includes: including anchor screws. Pivot point (mm): 20. Material: anodized silver aluminum. Center distance (mm): 76.5. Type: Series 4 AT, two-part. Design: with anchor screw 58 mm. Brand: Hahn. Factory number: M9131W000. Content summary (ST): 1.
Door fittings
EUR73,68
Dr. Hahn HAHN door hinge 4 AT, 2-part 20/76.5/58 with anchor bolt, silver anodised
7. Dr. Hahn HAHN door hinge 4 AT, 2-part 20/65/58 with anchor screw, white RAL 9016
Hahn door hinge 4 AT two- and three-part. A new feature of these door hinges is the half measure zero, where the frame hinge part has been minimized in space requirements. This new variant is particularly useful in situations where there is limited space on the frame side. The fastening is done through the hinge part. Whether anchor screw, screw anchor, or mounting plate, all available Hahn fastening materials can be used for installation. Available for all common aluminum profiles. Combination options and fastening variants for doors that open inwards and outwards - even with change profiles and corner post constructions. Variants for doors with extreme construction widths as well as doors with narrow frame profiles. Load capacity up to 220 kg (three-part) or 180 kg (two-part) - depending on profile construction and application situation. Adjustable in six directions. Usable for DIN left/right. Opening angle > 180°. CE certified according to EN 1935:2002, hinge class 14. Technology / Application: suitable for aluminum shells up to a height of 23 mm. Horizontal adjustment stepless ± 2.5 mm for faster processing. Height adjustment stepless +3 / -2 mm without lifting or lowering the wing. Seal pressure adjustment ± 0.5 mm on the installed door leaf. Fastening: anchor screws 58 mm. Delivery includes: including anchor screws. Pivot point (mm): 20. Type: Series 4 AT, two-part. Axis distance (mm): 65. Material: Aluminum white RAL 9016. Version: with anchor screw 58 mm. Brand: Hahn. Factory number: M901GW000. Content (ST): 1.
Door fittings
EUR54,18
Dr. Hahn HAHN door hinge 4 AT, 2-part 20/65/58 with anchor screw, white RAL 9016
8. Dr. Hahn Abdeckkappen für TB 4, schwarz, Rahmen

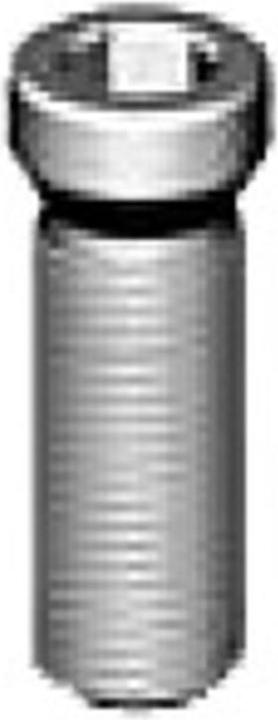

9. Dr. Hahn Mounting screws for door hinge tap series 4
Mounting screw M8x25mm.

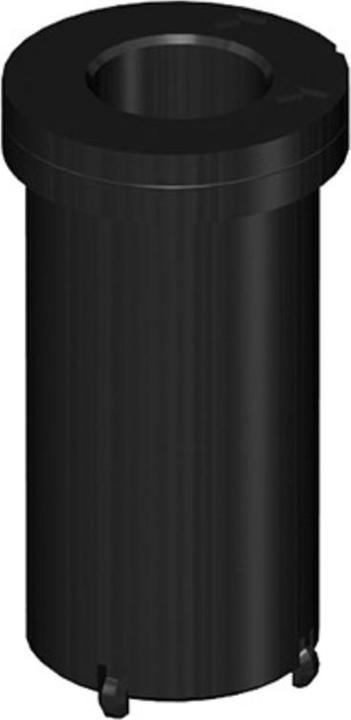

10. Dr. Hahn Bearing bush
Bearing bush for door hinge type 4 2-part, black.
