Best Gira products in the Doorbells + Door intercom system category

On this page you'll find a ranking of the best Gira products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

1. Gira Surface-mounted door station flat 1f Türko anthracite

Main features Transmission technology Wired Number of modules (max.) 1 module(s) Number of buttons 1 Hands-free kit Yes International protection class (IP code) IP44 Design Product colour Anthracite Placement Wall Easy installation Yes Scope of delivery Indoor unit included No Included outdoor unit Yes

Surface-mounted door station, 1-gang anthracite Features: Completely pre-assembled surface-mounted door station for vertical surface mounting. This enables quick and clean installation. In the design of the Gira TX_44 switch range. Torsion-resistant surface-mounted housing with aluminium profile. Cover frame made of shatter-proof thermoplastic with high UV stability and a scratch-resistant, easy-care surface. Anti-theft protection by means of screws with hexagon socket. Signal transmission and supply of audio and video components via 2-wire bus protected against polarity reversal and short-circuit. One-man commissioning thanks to simple commissioning procedure. Weatherproof loudspeaker. High-quality electret microphone. Hands-free function (voice-controlled intercom with echo and background noise suppression). Acknowledgement tone when call button is pressed. Speech volume adjustable. White call button illumination in LED technology. The maintenance-free and energy-saving LED technology provides uniform, highly visible call button illumination. Splash-proof call button cover made of impact-resistant plastic. Call button nameplate can be replaced without tools and without frame disassembly. Professional inscription via the Gira inscription service www.beschriftung.gira.de or the Gira inscription software. Low installation height of only 19 mm.


2. Gira control unit

Gira control device video 128800 Manufacturer: Gira Designation: Control device video bus system, REG, 8TE Type: 128800 Application: Video Input voltage: 230 V Frequency: 5E-6 Hz Current type: AC Output voltage: 12 V Short-circuit proof: yes Protection class (IP): IP20 Width in units: 8 Installation technology: Bus system Integrated door opener circuit: yes Control function: yes Evaluation function: no Number of connectable devices: 18 Service displays: no Mounting type: other Programming lock: noGira control device video 128800: further detailsControl device video REG Features: Control device for supplying the audio and video components of the Gira door communication bus. Supply of the reverse polarity protected and short-circuit proof 2-wire bus when using video components such as color camera, TFT color display. Up to 2 door stations with color camera and 28 home stations with TFT color display can be supplied via the video control unit. A total of up to 15 color cameras can be controlled by the video control device (5 door stations video and 10 TKS camera gateways), of which two door stations with color camera can be supplied with voltage by the video control device. The other color cameras must each be operated with their own power supply for door communication. Self-resetting electronic short-circuit and overload detection of the operating voltages and the bus connection. Buttons for system and door opener programming. LED status indicators for operation, overload, system programming and door strike programming. Output AC 12 V for power supply of a standard door opener. Relay output for switching a door opener with its own power supply. Door opener switching time continuously adjustable from 1 to 10 s. Notes : The video control unit is intended for installation in the sub-distribution, not for commercially available surface-mounted distributors. If the topology of the video cabling is designed as a spur line, the video distributor is also required. With the video control unit, it is possible to set up door communication systems with up to 70 audio subscribers (e.g. 1 x built-in speaker, 5 x extension module for built-in speaker, 68 x surface-mounted home station). , EAN: 4010337288008.

3. Gira EFH-Paket Wohnungsstation

2431920 EFH package surface-mounted home station video 7 System 106 stainless steel.

4. Gira 120903 Surface-mounted home station video 7 door co Pure white

120903 Surface-mounted home station video 7 Türko Pure white.

5. Gira Home station

GIRA 123903 Surface-mounted home station video.

6. Gira Two-family house package audio

The low overall height of only 19 mm and the torsion-resistant surface-mounted housing with aluminium profile are just as much evidence of high quality as the cover frame made of unbreakable thermoplastic with high UV stability and a scratch-resistant, easy-care surface. Torx screws also protect against theft. The signal transmission and supply of the audio and video components is carried out via the reverse polarity protected and short-circuit proof 2-wire bus.

7. Gira 126666 Audio Intercom System White

GIRA 126666 Audio Intercom System White (126666).

8. Gira Switching actuator

Gira switching actuator door commun. 128900 Manufacturer: Gira Designation: Switch actuator door commun. REG Type: 128900 Function: switching Installation technology: bus systemGira switching actuator door commun. 128900: Further detailsTKS switching actuator REG Features: Switch actuator for switching light, controlling a door opener at side doors or other functions via the Gira door communication bus. Control of a potential-free switching contact 230 V 10 A via the 2-wire bus. The switching actuator can be controlled via: the &quotdoor&quot and &quotlight&quot buttons on the home station, the call button on the door station, the call button on the home station. The switching actuator can be operated in five different modes: switching, timer s, timer min, pulse and door opener. Pulse function for controlling existing automatic staircase timers. Binary input for switching functions via a connected mechanical pushbutton. Switching time continuously adjustable from 1 to 10 s or 1 to 10 min depending on the set function. Notes : The switching actuator is intended for installation in the sub-distribution. If this is not possible, use a commercially available surface-mounted distributor. With this component, it is possible to set up door communication systems with more than 30 subscribers. , EAN: 4010337289005.

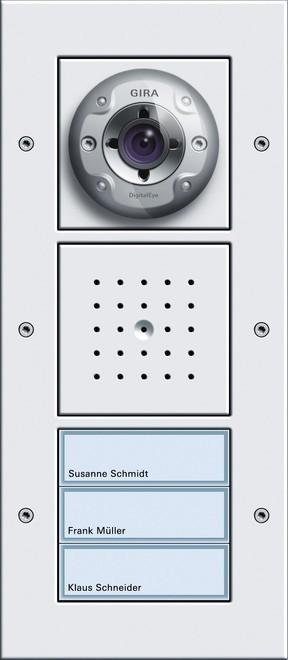

9. Gira Door station video surface-mounted 3f Türko anthracite 127067

GIRA 127067 Surface-mounted video door station, 3-gang.

10. Gira Call button module 1f System 106 5531902

GIRA 5531902 Call button module 1f System.
