Best Chauvin Arnoux products in the Multimeter category
On this page you'll find a ranking of the best Chauvin Arnoux products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

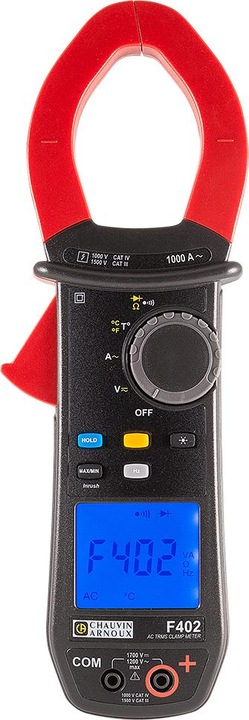

1. Chauvin Arnoux F402 Current clamp digital Splash-proof (IP54) CAT III 1500 V, CAT IV 1000V An
Description The devices of the F400 series are designed for higher low voltages and are equipped with a higher protection class, making them particularly suitable for maintenance, testing, monitoring, and analysis of medium power systems. The F402 clamp features a fast, digital 12-bit TRMS measurement system for high measurement accuracy regardless of the signal shape. Technical specifications: Enclosure diameter: 48 mm, current: 1000 A AC, voltage: up to 1200 VAC / 1700 VDC, resistance and acoustic continuity testing, temperature, automatic AC/DC detection, measurement of inrush currents, TrueInrush, HOLD, MIN, MAX, 1000 V CAT IV / 1500 V CAT III, protection class: IP54.
2. Chauvin Arnoux P01120593 MA194-250 Current clamp adapter MiniFLEX MA194-250 (Ø 70 mm) 1pce.
Chauvin Arnoux MiniFLEX MA194-250 (70 mm)
Manufacturer: Chauvin Arnoux
Designation: MiniFLEX MA194-250 (70 mm)
Type: MA194-250
Analog bar display: no
Multiple display: no
With screen backlight: no
Measurement range selection: automatic
Current measurement range/AC: 0.1 - 10,000 A
Current type: AC
True RMS measurement: no
Voltage measurement/AC: no
Voltage measurement/DC: no
Resistance measurement range: no
Temperature measurement: no
Capacitance measurement: no
Frequency measurement: no
Power measurement: no
Leakage current measurement: no
Harmonic measurement: no
Measurement in cable with forward and return conductor: no
Clamp opening: 70 mm
Designed as an adapter for connection to multimeters: yes
Interface: no
Measurement circuit category: CAT IV
Max. voltage measurement circuit category: 600 V
Continuity test: no

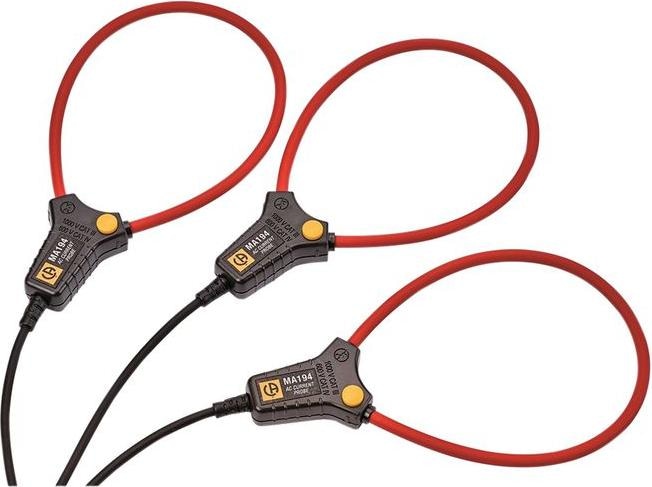

The MiniFLEX MA194 are flexible current transformers designed for connection to Chauvin Arnoux power and energy recorders, power analyzers, and power and network analyzers for measuring alternating currents. They replace the MiniFLEX series MA193 and feature an improved opening and closing mechanism: by simply pressing the yellow button, the red Rogowski coil of the current transformer releases, allowing it to be easily placed around the conductor. When closed, the coil locks in place securely. The MiniFLEX MA194 is available in three different loop lengths: 250 mm (Ø 70 mm), 350 mm (Ø 100 mm), and 1000 mm (Ø 30 mm). With their very thin Rogowski coils, the MiniFLEX series stands out for its exceptional flexibility. Additionally, it boasts a particularly wide measurement range (e.g., from 200 mA to 10 kA AC with PEL 104 or C.A 8336).
Multimeter
EUR259,35
Chauvin Arnoux P01120593 MA194-250 Current clamp adapter MiniFLEX MA194-250 (Ø 70 mm) 1pce.
CAT III
3. Chauvin Arnoux P01120460, Suitable for (Detail
A clamp-on current transformer allows for the measurement of current flowing in a cable without the need to open the circuit. Additionally, it protects the user from hazardous voltages in the circuit. Together with the installation tester C.A 6116, the accessory clamps are used to measure current, selective grounding resistances, power, and for harmonic analysis. The choice of the current clamp to be used depends on the current value to be measured and the cable diameter.

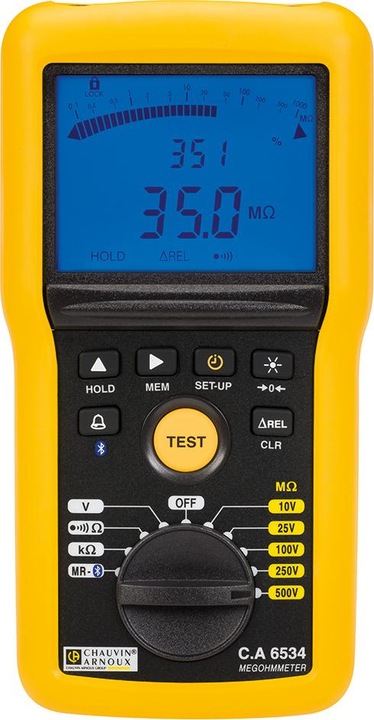

4. Chauvin Arnoux CA6534 Insulation meter 10
With its wide test voltage range of 10 V to 500 V, this model meets the specific requirements of the electronics industry, from low current applications to power levels. The measurement range for insulation resistance spans from 2 kΩ to 50 GΩ. With appropriate probes and test voltages of 10 V and 100 V, electrostatic discharge (ESD) testing is also possible.

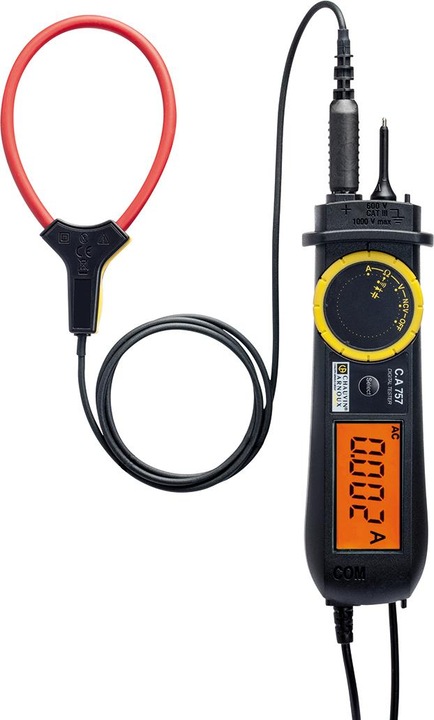

5. Chauvin Arnoux Hand multimeter, current clamp di
The C.A 757 is a compact testing and measuring device that provides electricians with all the essential functions they need on a daily basis.
The C.A 757 is a lightweight, ergonomically designed, and user-friendly device with an IP54 protection rating. It is protected against dust and drops from heights of up to 2 meters. The measurement values are directly readable on its illuminated 3000 Digit display. The practical test probes are detachable and easy to replace, and they can be conveniently clipped into a holder on the housing with their cables.
The C.A 757 is easy to operate and quickly becomes an indispensable tool for all testing and maintenance tasks, ensuring optimal protection for the user:
- protected against voltage spikes up to 6 kV
- protected up to 1000 V in all measurement modes
- displays dangerously high voltages
- automatic shutdown after 10 minutes of inactivity
With its double insulation and 600V CAT III rating, the C.A 757 complies with the new multimeter standard IEC 61010-2-033.
The C.A 757 automatically detects AC and DC voltages, as well as resistances, continuity, diodes, and capacitances, and it features non-contact voltage detection.
Each C.A 757 comes with a flexible MiniFlex® current transformer, allowing currents of up to 300 A to be measured even in hard-to-reach places.

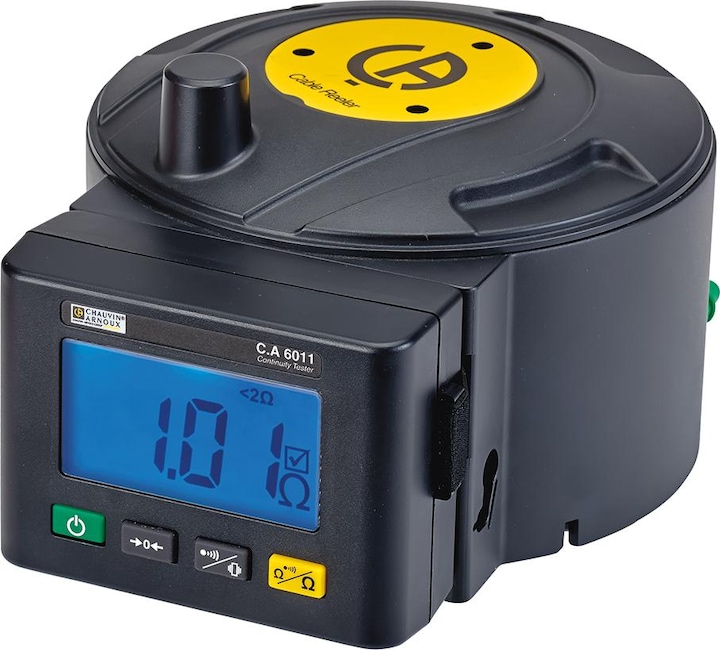

6. Chauvin Arnoux C.A 6011 Set Insulation Meter 200Ω
Description
The C.A 6011 continuity tester has been specifically designed for the regular testing of protective conductors in electrical devices, equipment, and installations, particularly in accordance with the standards IEC/EN 60364, NF C 15-100, VDE 100, and relevant legislation. These systematic and recurring checks account for more than 80% of all inspection processes, so it is essential that they do not become overly cumbersome. The C.A 6011 tester with reel meets this requirement thanks to its ergonomics and functionality, ensuring user-friendliness, high measurement capacity, and safety for the customer:
- Large illuminated display (the largest on the market)
- Clear and intuitive indicators: Blue/Red display, simple symbols, audible signal
- Completely new functionality: The vibration feature does not disturb your customers' peace and also relieves your neck.
- You can choose to use the measuring case together with or separately from the reel.
- 4 buttons on the front panel provide direct access to all functions.
- High operational lifespan: up to 30,000 measurements!
- The shoulder strap and belt distribute the weight optimally across the body.
Technical specifications:
- According to standard CEI 61557-4:
- Continuity measurement: 0.00Ω to 20.00Ω
- Automatic polarity reversal
- Measurement current: 200mA
- Compensation for measurement lead resistance
- Resistance measurement: up to 200.0Ω
- Programmable compliance threshold <1Ω or <2Ω
- Reel with 30 m cable
- Elastic carrying handle
- Complete delivery including reel and accessories.

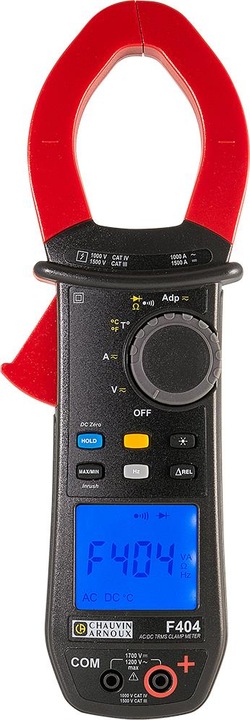

7. Chauvin Arnoux F404 Current clamp digital Splash-proof (IP54) CAT III 1500 V, CAT IV 1000V An
The devices of the F400 series are designed for higher low voltages with a higher protection class and are particularly used for the maintenance, testing, monitoring, and analysis of medium power systems. The F404 clamp is equipped with a fast, digital 12-bit TRMS acquisition system for high measurement accuracy regardless of the signal shape. Technical specifications: Enclosure diameter: 48 mm, current: 1000 A AC / 1500 A DC, voltage: up to 1200 VAC / 1700 VDC, resistance and acoustic continuity testing, temperature, automatic AC/DC detection, measurement of inrush currents, True Inrush, HOLD, MIN, MAX, relative (?X) difference measurements (?X/X), adapter function, 1000 V CAT IV / 1500 V CAT III, protection class: IP54.
Multimeter
EUR454,28
Chauvin Arnoux F404 Current clamp digital Splash-proof (IP54) CAT III 1500 V, CAT IV 1000V An
CAT IV 1000V, CAT III

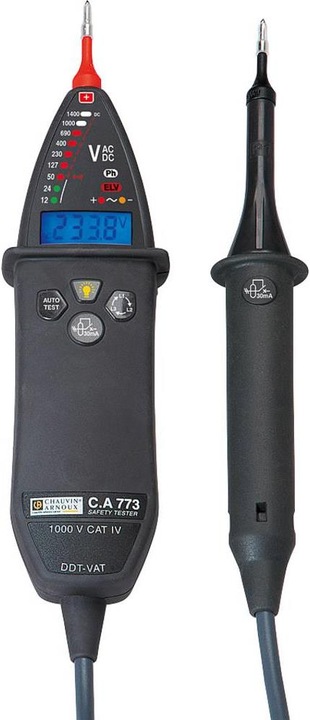

8. Chauvin Arnoux Two-pole voltage tester P0
An essential tool for every electrician to properly test and ensure the presence of AC and DC voltages or the absence of voltage, safeguarding individuals and equipment from the dangers of electrical current. Fully compliant with the standards EN 50110-1, IEC 61243-3, and DIN VDE 0682 Part 401, these voltage testers provide excellent safety - 1000 V CAT IV - IP 65.

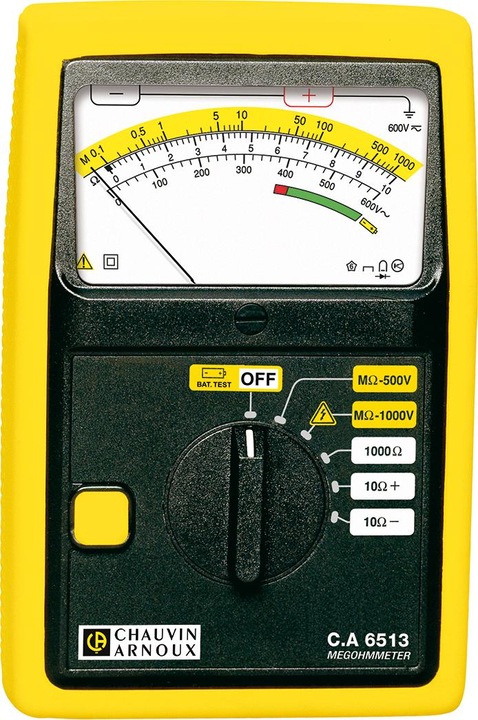

9. Chauvin Arnoux C.A 6513 Calibrated to factory standard (
Measure insulation and continuity resistances according to IECE 61557 and VDE 413, Parts 1 and 4.

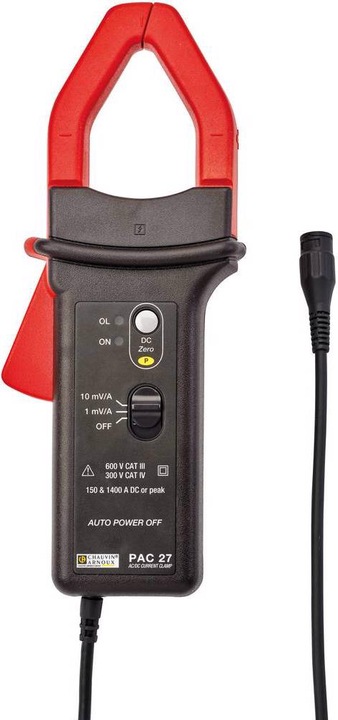

10. Chauvin Arnoux Current clamp adapter PAC series AC/DC current clamps!
The "PAC" model series includes current clamps that utilize the Hall effect to measure both direct and alternating currents.
To accommodate cables with a diameter of 39 mm or 2x25.4 mm and small busbars, two designs are offered. The model series includes the PAC1x clamps and, for higher current ratings, the PAC2x clamps.
In conjunction with an oscilloscope, this isolated current transformer can be used with its two measurement ranges to display peak current levels up to 10 A DC with a bandwidth of up to 1400 kHz. The current transformer features a simplified zero adjustment called ZeroDC and a selectable switch to standby mode.
Thanks to a Micro-USB port (Type B / 5V DC), these new models can now be powered by an external standard source. In the event of a power failure, an internal 9V battery takes over the power supply.
Multimeter
EUR493,85
Chauvin Arnoux Current clamp adapter PAC series AC/DC current clamps!
CAT III 600V, CAT IV 300V
