Best Berker products in the Sockets category
On this page you'll find a ranking of the best Berker products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

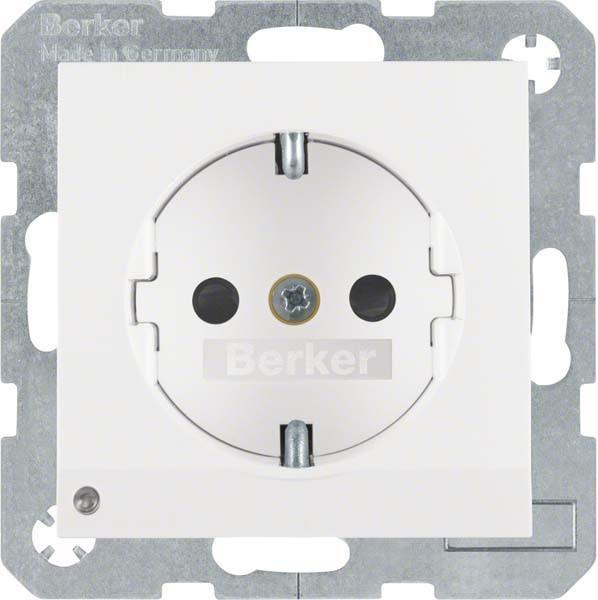

1. Berker SCHUKO socket outlet
Berker Schuko Socket pws/gl 41098989
Manufacturer: Berker
Description: Schuko socket pws/gl with LED orientation light
Type: 41098989
Number of active contacts (round): 2
With signal lamp: no
Number of units: 1
Number of modules (in modular design): 1
Number of phases: 1
Printing/labeling: none
With flap cover: no
With increased touch protection: yes
Text field/labeling area: no
RAL number (similar): 9010
Metallic color: no
Transparent: no
Lockable: no
Ejection mechanism: no
Insulated installation: yes
With functional lighting: no
With orientation light: yes
Surge protection: no
Residual current protection: no
With fine fuse: no
Special power supply: none
Halogen-free: yes
Surface finish: matte
Antibacterial treatment: no
With pass-through function: no
With on/off switch: no
Twisted central insert: no
Rated current: 16 A
Rated voltage: 250 V
Frequency: 50-60 Hz
Device width: 71 mm
Device height: 71 mm
Min. depth of device box: 40 mm
Compatible with Apple HomeKit: no
Compatible with Amazon Alexa: no
Compatible with Google Assistant: no
IFTTT support available: no
For harsh conditions (according to VDE): no
Berker Schuko Socket pws/gl 41098989: additional details
Schuko socket with LED orientation light in polar white, glossy. Schuko socket with LED orientation light and increased touch protection, combination of socket and orientation light, integrated brightness sensor turns on the orientation light at dusk and off in sufficient brightness, pass-through wiring possible, long lifespan due to LED, white LED light, with increased touch protection, with screw-lift terminals, with one-piece grounding clip. Flush-mounted installation, standard/surface/design program. Material: plastic, thermoset, halogen-free.
2. Berker SCHUKO double socket
Socket with protective contact, 2-fold horizontal with flap cover, IP55. Designed for horizontal installation, pre-wired inserts with terminal blocks, featuring one entry for two cables and one entry for either a cable or conduit. The upper and lower cable entries are positioned laterally, making them particularly suitable for installation next to door frames or similar structures. Two additional lateral cable entries make installation over workbenches especially convenient. Full surface sealing under the housing base to seal the back of the enclosure, with a self-closing flap cover that can be manually locked to achieve protection class IP55. Easily accessible funnel-shaped mounting holes in the housings. A Wago 2-wire connection terminal is included for wiring, with two snap-in places for Wago 2-wire connection terminals in the housing base, providing ample space for wiring beneath the inserts' bases (hollow base). Easy installation of the insert in the housing by snapping in, secure fixation of the frame to the housing via a bayonet quick-release mechanism. Connection terminals according to VDE 0620, design DIN 49440. Housing screws and flap cover springs made of stainless steel. Surface-mounted installation. Material: plastic, thermoplastic, impact-resistant.
3. Berker Integro Flow double socket outlet anthracite, socket outlet anthracite
Modern, suitable for any installation environment - straight contours, sharp corners, but curved surface geometry. This way, Berker Integro Flow ensures a harmonious transition to the control area on any installation surface. The ideal solution for almost any interior design style. These pre-assembled and wired elements significantly reduce the time required for both ordering and installation. Conductor cross-section 1.5 mm², primary cable with ferrules. Height (mm): 9, surface: matte anthracite, similar to RAL 7021, length (mm): 119, type: Berker Integro Flow, installation depth (mm): 38, rated current (A): 16, rated voltage (V): 250, primary: cable 2000 mm, features: anthracite socket, material: plastic, width (mm): 59.5, version: double socket, installation ø (mm): -, switching current (A): -, secondary: -, brand: Berker, contents (GT): 1.
4. Berker SCHUKO double socket outlet 47893525 horizontal w.hinged d. AP W.1 socket 4011334428060
Socket with protective contact, 2-fold horizontal with hinged cover, labeling field, unequal locks, gray. The socket is equipped with increased touch protection (IP55) and features a lock with unequal closures. It is suitable for appliances such as washing machines and dryers and comes with four identical keys.
For horizontal installation, it offers two cable entries as well as two additional side cable entries and a hollow base with terminal blocks. The upper and lower cable entries are arranged laterally, making it easier to install next to door frames or similar structures. Thanks to the side cable entries, it is particularly well-suited for installation above workbenches.
The labeling field measures approximately 50 x 16 mm and is designed for P-touch tapes with a height of 12 mm. Replacement keys and other locks (max. 24) are available upon request. The connection terminals comply with VDE 0620 and are manufactured according to the design standard DIN 49440. Housing screws and hinged cover springs are made of stainless steel. Installation is done as surface-mounted installation. Material: plastic, thermoplastic, impact-resistant.
Sockets
EUR81,19
Berker SCHUKO double socket outlet 47893525 horizontal w.hinged d. AP W.1 socket 4011334428060

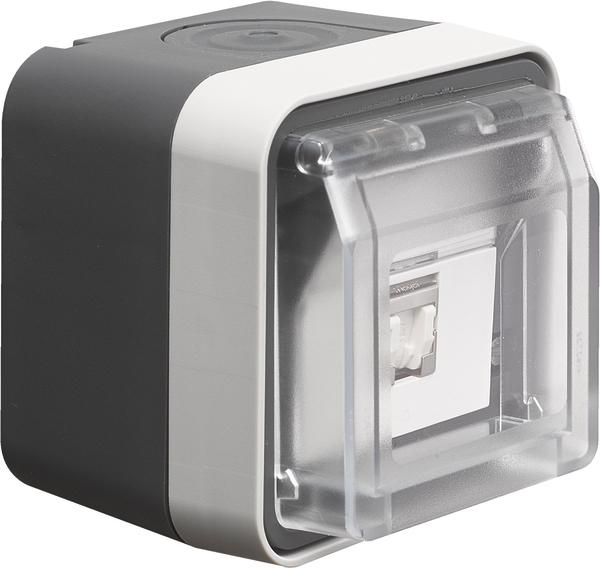

5. Berker Data connection housing
Berker data connection housing 14093505 Manufacturer :Berker Designation :Data connection housing light grey Type :14093505 Surface mounting :yes Flush mounting :no Trunking installation :no Floor tank/underfloor mounting :no Mounting type :screw assembly :basic element with complete housing connector type :RJ45 8(8) with sockets/couplings :yes suitable for number of sockets/couplings :1 category :6 colour :grey RAL number :7011 connection type :Insulation displacement connector IDC Sockets shielded :yes Enclosure shielded :yes Separate earth connection :yes With text field :yes Suitable for design :yes Separate cable strain relief :yes Outlet direction :angled With dust protection :yes With terminating resistor :no Protection class (IP) :IP55 Mechanical coding :no Colour coding :yes Device width :76 mm Device height :76 mm Device depth :50 mm Berker data connection housing 14093505: further details UAE socket outlet 8-pole shielded, Cat.6 AP W.1 grey. UAE socket outlet 8-pole shielded with hinged cover surface mounted with labelling field, Cat.6, IP55. For RJ45 plugs, suitable for PoE+, with 2 cable entries, with straight outlet, with 360° shield contact and strain relief, with LSA+ terminals, full-surface seal under the base of the housing for sealing the back of the housing, with transparent cover.with transparent, closing hinged cover, can be snapped in manually to achieve degree of protection IP55, easily accessible, funnel-shaped mounting holes in the enclosures, simple mounting of the insert in the frame with hinged cover by snapping in, secure fixing of the frame with hinged cover to the enclosure via bayonet quick-release fastener. , EAN: 4011334404538.

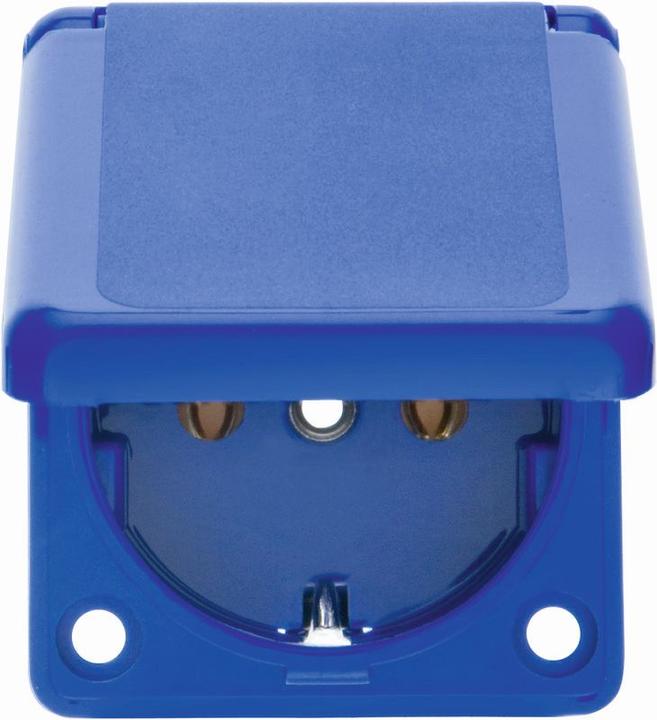

6. Berker SCHUKO built-in socket outlet
Berker SCHUKO flush-mounted socket outlet bl 7429635 Manufacturer :Berker Designation :SCHUKO flush-mounted socket outlet bl with hinged cover Type :7429635 Design :SCHUKO Number of units :1 Connection type :Screw terminal With hinged cover :yes Colour :blue Mounting type :Flush-mounted Mounting type :Claw/screw mounting Material :plastic Rated current :16 A Rated voltage :250 V Suitable for protection class (IP) :IP20 Cover :Central plate Berker SCHUKO flush-mounted socket outlet bl 7429635: more details , EAN: 4011334052487.

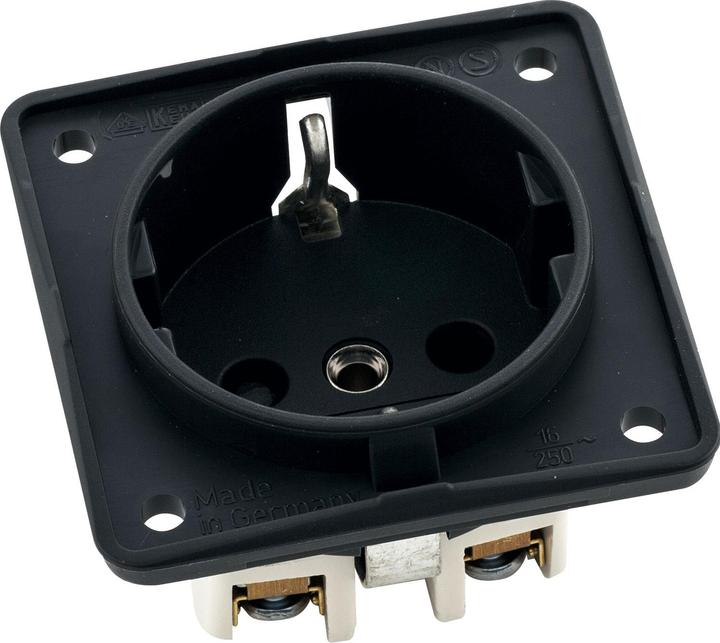

7. Berker 9419505 Integro earthed socket outlet with increased contact protection, matt black
Very small, yet indispensable. The round functional elements of the Berker Integro module inserts give each installation unit a distinctive character. Due to their minimal dimensions and shallow installation depths, they are extremely versatile. With an extensive product range, they cover a multitude of functions, providing the optimal solution for every need.
Central pieces made of thermoplastic, base made of thermoset plastic, contacts made of copper alloy, connection terminals according to DIN VDE 0620-1, design according to DIN 49440.
Rated current (A): 16, Type: Berker Integro Flow/Pure, Height (mm): 9, Installation depth (mm): 32.7, Rated voltage (V): 250, Surface: black matte, similar to RAL 9011, Width (mm): 55.5, Material: plastic, Equipment: screw terminals, Version: with increased touch protection, Length (mm): 55.5, Installation ø (mm): 50, Product type: socket, Brand: Berker, Quantity (ST): 1.
Sockets
EUR7,98
Berker 9419505 Integro earthed socket outlet with increased contact protection, matt black

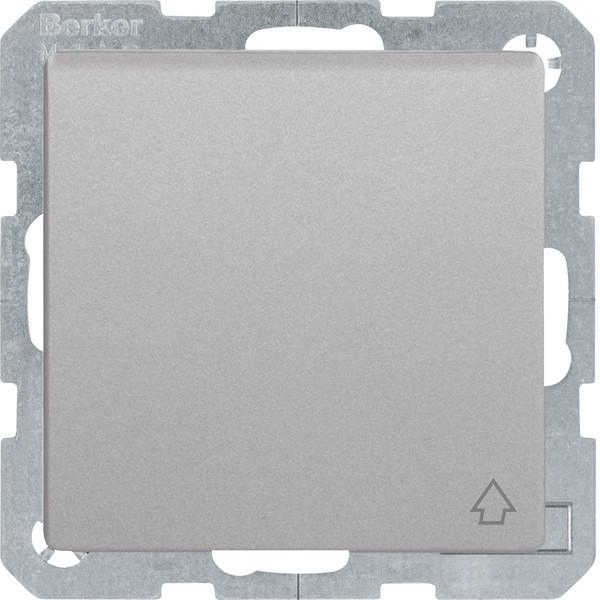

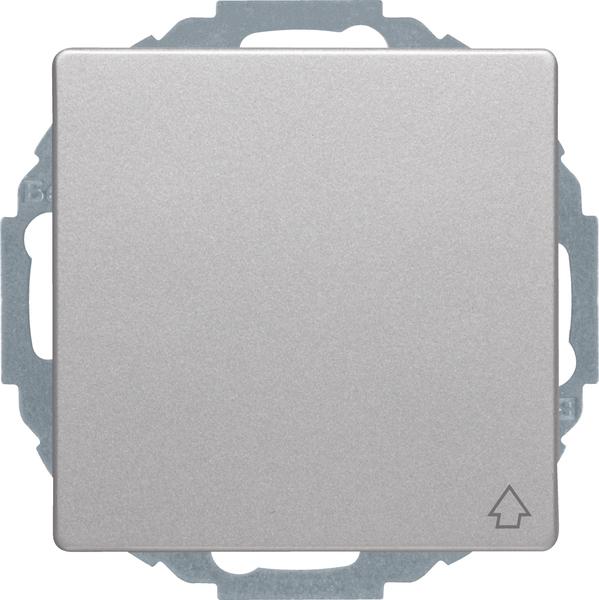

8. Berker SCHUKO socket outlet with hinged cover and raised cover BS Q.1/Q.3 aluminium velvet, lacquered
Socket with protective contact, hinged cover, and increased touch protection, featuring printing and terminal connections, as well as a one-piece grounding bracket. Designed for flush-mounted installation, part of a surface-mounted program.
Sockets
EUR25,74
Berker SCHUKO socket outlet with hinged cover and raised cover BS Q.1/Q.3 aluminium velvet, lacquered
9. Berker 16347109
Berker 16347109 Centre plate w.regulat-.
10. Berker 3315427004
The High Definition K.5 socket from Berker is a high-quality solution for connecting digital high-end devices in home entertainment. It enables the transmission of high-resolution audio and video signals and is equipped with a dual HDMI™ socket (Type A) that is accessible from both the front and back. This socket supports HDMI™ technology in version 2.1, making it ideal for modern applications. The gold-plated contacts ensure optimal signal transmission and durability. The housing made of painted stainless steel not only gives the socket an elegant appearance but also ensures robust and long-lasting use. The installation is done flush-mounted, allowing for a clean and discreet setup. With an IP20 protection rating, the socket is suitable for indoor use and features an antibacterial surface that provides additional hygiene.
- Supports HDMI™ technology (V 2.1) for high-resolution signals
- Gold-plated contacts for improved signal transmission
- Antibacterial surface for enhanced hygiene
- Flush-mounted installation for a clean setup
- Compatible with smart home applications.
