Best Weller Erem products in the Soldering irons category
On this page you'll find a ranking of the best Weller Erem products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Weller Erem WS 81 Soldering station, set
The Weller PU 81 soldering station is suitable for a wide range of soldering tasks. It delivers a maximum output of 80 watts. The soldering temperature is selected via an analogue rotary switch on the soldering station.
Soldering iron WSP 80
With Silver-Line radiator technology, power consumption: 80 Watt, operating voltage: 24 Volt, soldering tip LT B (chisel shape, Ø 2.4 x 0.8 mm) included
The WSP 80 replacement soldering iron from Weller with an output of 80 watts is ideal for soldering work with increased heat requirements. It is ready for use in ten seconds and reaches temperatures between 50 and 450 °C.
Soldering station PU 81 with soldering iron WSP 80
2. Weller Erem WXD 2020 Desoldering Station 200W, 230V
Model Number = WXD 2020 // Tasks Supported = Desoldering / Soldering // Wattage = 200W // Input Voltage = 230V // Soldering Tip Temperature = 450°C // Number of Outputs = 2 // Display Type = LED // ESD Safe = Yes // // WXD 2020 Station 230 V.
3. Weller Erem WTHA 1 900W HOT AIR STATION 230V UK F/G
Model number = WTHA 1 Set
Input voltage = 230V
Output power = 900W
Maximum operating temperature = +600°C
Operating temperature min = +50°C
Display type = LCD
Hot air station WTHA 1. The hot air station WTHA 1 is a complete 900W unit for simple repair and heating work. An easy to read and clear menu is available on the LCD display with backlight and the unit is stackable. Temperature is electronically controlled and precise hot air settings can be made via the brushless turbine. You can automatically run up to 5 presets in one profile and the unit's housing cover can be used for storage. The complete unit includes a safety tray and a fixed hot air piston. FEATURES and ADVANTAGES:. Hot air station 900 W 1-channel Clear menu structure LCD display with backlight Electronically controlled temperature Adjustment of hot air by brushless turbine 5 preset sets Housing cover Stackable Space-saving. UNIT INCLUDES:. Safety tray Fixed hot air piston. DIMENSIONS:. Width 212 mm Depth 167 mm Height 122 mm Weight 1.95 kg.

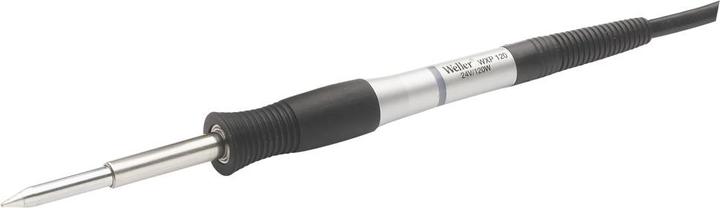

4. Weller Erem WXP 120 soldering iron
The all-rounder with 120 watts. It can be used to cover soldering work from small to large components with high heat requirements.
Maximum performance is achieved through the optimised sensor position. With a cost-effective range of soldering tips, these tools offer a real alternative to
features:
- WX compatible
- with Power-Response heating element technology
- Tip family XT, XT soldering stamps
Scope of delivery:
1 piece soldering iron WXP 120
1 piece XT B soldering tip, chisel shape, 2.4 x 0.8 mm
Technical data:
Power: 120 W
Temperature range: 100-450 °C
Weight: 315 g
Item number: COO52920199
Shop number: 803440.
5. Weller Erem Weller Wxsmart Micro/Pico soldering set Soldering station set 300W 100 - 450°C
Weller Wxsmart Micro/Pico soldering set Soldering station set 300W 100 - 450°C.
Soldering irons
1760,25 EUR
Weller Erem Weller Wxsmart Micro/Pico soldering set Soldering station set 300W 100 - 450°C
6. Weller Erem WXMP Set
Weller's WXMP soldering iron with its fine and slim design and 40 watt power is ideal for soldering work under a microscope. The active soldering tip is characterised by its high performance. The soldering iron is ready for use in three seconds and reaches temperatures between 100 and 450 °C. The WDH 51 soldering stand is also included in the scope of delivery.
WXMP soldering iron and WDH 51 soldering stand
- Ideal for working under a microscope
- Power consumption: 40 watts
- Operating voltage: 12 Volt
- soldering tip RT 3 (chisel shape, Ø 1.3 mm) included
Note: To use the soldering iron, you will need an additional supply unit of type WX, which is not included in the scope of delivery.
7. Weller Erem Soldering iron W 201
The Magnastat system works by means of a permanent magnet and a ferro-magnetic temperature sensor. When the soldering tip is cold, the permanent magnet is attracted by the ferromagnetic temperature sensor. In this state, the switch is closed and the heating is switched on. When the temperature sensor approaches its Curie low point, i.e. the selected tip temperature, its magnetic behaviour changes and the heating is switched off. If the peak cools down a little, the temperature sensor picks up again and the control cycle starts again.
The working temperature is selected by simply changing the soldering tip with the temperature sensor attached to it. The Weller Longlife soldering tips cover the temperature ranges 260°, 310°C , 370°C , 425°C and 480°C . The WTCP 51 is not suitable for ESD safe applications as the soldering iron is not antistatic.
Features:
- Magnastat regulated
- Tip family CT soldering tips
Scope of delivery:
1 piece soldering iron W 201
1 piece soldering tip CT 2 F7 chisel shape
Technical data:
Voltage: 230 V
Power: 200 W
Temperature range: 370 °C
Weight: 1,87 kg
Item number: COO56105699
Shop number: 806568.
8. Weller Erem Hot Air Pencil HAP 1
The hot air piston HAP 1 has a temperature range of 50°C - 550°C. The hot air flow is adjustable and ion-free. The hot air flow is activated via a finger switch. Various nozzles are available as accessories.
Features:
- Ion-free hot air flow
- Activation via finger switch
- Can be connected to WR 2, WAD 101, WR 3M
- Tip family F, R, D, Q
Scope of delivery:
1 hot-air pencil HAP 1
1 piece Hot air nozzle R06, 3.0 mm
Technical data:
Power: 100 W
Temperature range: 50-550 °C
Weight: 296 g
Item number: COO52711599
Shop number: 804240.
9. Weller Erem Soldering iron WMRP
Very fine, slim soldering iron that is ideal for working under the microscope. High performance due to an integrated, active soldering tip.
An optimal tool in which the heating element and the sensor are integrated in the front of the soldering tip. This allows a fast reaction time when the solder joint temperature is lowered. With these tools, the power is brought to the soldering point.
Features:
- very fine, slim soldering iron that is ideal for working under a microscope
- high performance due to an integrated active soldering tip
- with Active-Tip heating element technology
- connectable to WD 1M, WR 3M, WD 3M
- Tip family RT
Technical data:
Power: 40 (55) W
Temperature range: 100-450 °C
Weight: 250 g
Item number: COO52917199
Shop number: 803890.
10. Weller Erem Soldering station set PROMO WX 2010 2012 ULTRA MS
This station set is specifically designed to meet MIL-SPEC / IPC standards to protect sensitive components from electrical overload by using Weller's RT MS soldering tips. Weller offers a wide selection of RT MS soldering tips with active heating element technology for components ranging in size from XL to XXL.A safe soldering process is ensured by many features of the Weller WX station such as temperature and tool interlock and tool-specifictemperature settings. Integrated USB ports allow the WX stations, which act as tabletop controllers, to connect to and control solder fume extractors, preheat plates and programmable logic controllers (PLCs). Firmware updates and registration are quick and easy using USB sticks. Parameters such as standby temperatures and automatic shutdown time can be easily stored in the soldering iron. Parameters only need to be stored once, the MS soldering iron can then use them with any WX station.
