Area: AF Range

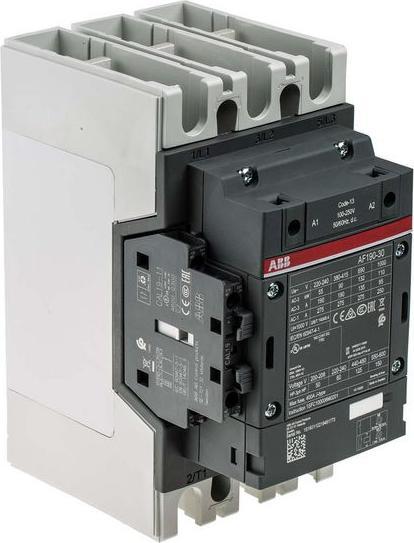

Series: AF190
Number of Poles: 3
Coil Voltage: 230 V AC
Rated Contact Current: 275 A
Rated Contact Voltage: 690 V AC
Contact Number and Position: 3-pole
Contact Configuration: 3 Normally Open
Number of Auxiliary Contacts: 2
Power: 90 kW
Connection Type: Flat
Width: 196 mm
Maximum Operating Temperature: +70 °C

IEC 60947-1 / 60947-4-7 and EN 60947-1 / 60947-4-1. NF series contactors, 3-pole. AF contactors are AC/DC operated. The AF09-AF38 contactors feature an electronic coil interface for a wide control voltage range Ucmin - Ucmax. Only four coils cover control voltages from 24 to 500 V AC or 20 to 500 V DC. AF.Z contactors with a Z-coil enable direct control via a PLC output with 24 V DC, 500 mA, and ensure lower power consumption of the holding coil. AF.Z contactors withstand short voltage drops and interruptions (according to SEMI F47-0706). AF40-AF96 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC and 220 V DC. These contactors have a block design with 3 main poles. AF116-AF140 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC, while the AF146 can handle up to 1000 V AC. AF190-AF370 contactors are primarily used for controlling 3-phase motors and power circuits up to 1000 V AC. These contactors also feature a block design with 3 main poles. AF contactors come with integrated surge protection and do not require additional surge protection.
