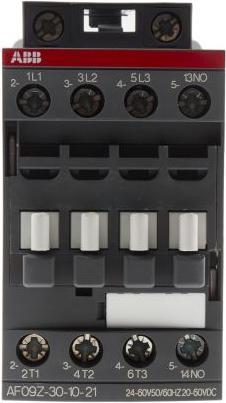

Area: AF Range
Series: AF09
Number of Poles: 3
Coil Voltage: 60 V dc
Rated Contact Current: 7 A
Rated Contact Voltage: 690 V ac
Contact Configuration: 3 Normally Open
Number of Auxiliary Contacts: 1
Power: 4 kW
Connection Type: Screw Mounting
Width: 45 mm
Maximum Operating Temperature: +70 °C

IEC 60947-1 / 60947-4-7 and EN 60947-1 / 60947-4-1. Relays of the NF series, 3-pole. AF relays are AC/DC operated. The AF09-AF38 relays feature an electronic coil interface for a wide control voltage range Ucmin - Ucmax. Only four coils cover control voltages from 24 to 500 V ac or 20 to 500 V dc. AF.Z relays with a Z-coil allow direct control via a PLC output with 24 V dc, 500 mA and ensure lower power consumption of the holding coil. AF.Z relays withstand short voltage drops and interruptions (according to SEMI F47-0706). AF40-AF96 relays are primarily used for controlling 3-phase motors and power circuits up to 690 V ac and 220 V dc. These relays have a block design with 3 main poles. AF116-AF140 relays are mainly used for controlling 3-phase motors and power circuits up to 690 V ac, while the AF146 is used up to 1000 V ac. AF190-AF370 relays are primarily used for controlling 3-phase motors and power circuits up to 1000 V ac. These relays have a block design with 3 main poles. AF relays feature integrated surge protection and do not require additional surge protection.
