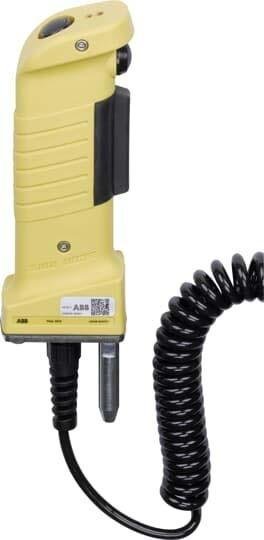

ABB Stotz S&J LED Approval Switch JSD-HD4-311100

Manufacturer: ABB Stotz S&J
Designation: LED Approval Switch 3-Position
Type: JSD-HD4-311100
Suitable for safety functions: yes
Cross-circuit monitoring possible: yes
With status indicator: yes
Rated operational current Ie at DC-12, 24 V: 0.02 A
Number of contacts as normally open: 4
Number of additional push buttons: 2
Type of electrical connection: other
Performance Level according to EN ISO 13849-1: Level e
Protection class (IP): IP65
Protection class (NEMA): 4

ABB Stotz S&J LED Approval Switch JSD-HD4-311100: additional details
Approval devices are used during troubleshooting, programming, and testing when no other safety devices are possible or suitable. The approval device is held in hand, and the operator can either press the approval button harder or completely release it in a panic situation to stop the machine. An approval device is a manually operated start and stop switch that initiates operation and maintains it as long as it is activated.
EAN: 4013614499784.
