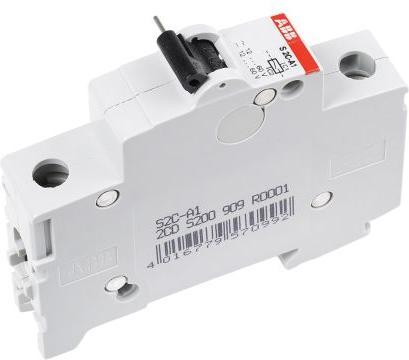

ABB Stotz S&J Working Current Release S2C-A1

Manufacturer: ABB Stotz S&J
Designation: Working Current Release
Type: S2C-A1
Device Mounting: Circuit Breaker
Additional Device: Working Current Release
Factory Mounted: No
Width in Division Units: 0.75
Rated Voltage: 230 V
Type of Voltage for Actuation: AC/DC
With Autotest for Residual Current Function: No
Suitable for Maximum Current Rating of Main Contact Unit: 45 A

The working current release S2C-A1 enables remote tripping (disconnection) of the circuit breaker with self-interruption within 10 ms. It is suitable for circuit breakers of the S200 series, RCD/MCB combinations DS200 (DDA200 + S200), and load disconnectors of the SD200 series. The working current release features a relay coil with an integrated contact that disconnects the coil from the actuation voltage after the circuit breaker is tripped, ensuring that no further current flows even when the actuation voltage is continuously applied.

EAN: 4016779570992.
