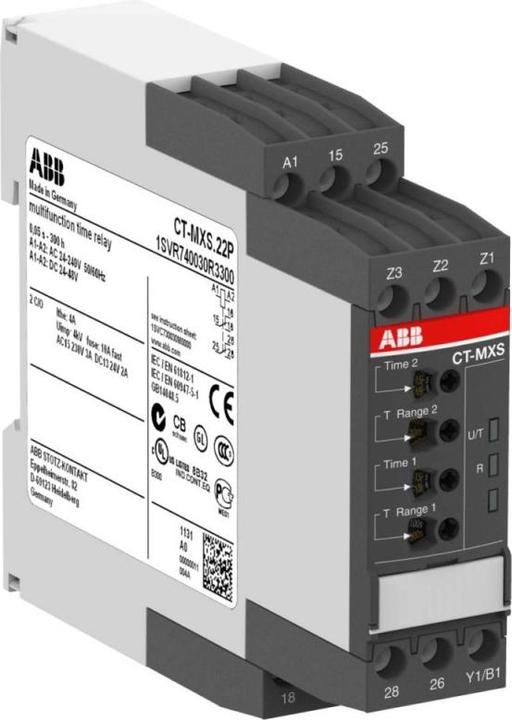

The ABB Stotz S&J multifunction time switch CT-MXS.22P is designed for versatile applications. It operates with a supply voltage of 24-48 VDC and 24-240 VAC. This model features a spring-loaded connection and offers various functions, including on/off switching. It allows for remote control but cannot be mounted on a contactor.

The nominal control voltage is 24-240 V at AC 50 Hz and 60 Hz, as well as 24-48 V at DC, with a nominal current of 4 A. The time range is adjustable from 0.05 seconds to 1,080,000 seconds. It has two instantaneous changeover outputs and two delayed changeover outputs.

The relay is suitable for DIN rail mounting and has dimensions of 22.5 mm in width, 85.6 mm in height, and 103.7 mm in depth. The CT-S series is known for its economical and universal design, which includes 16 multifunction devices and 26 single-function devices with up to 11 functions, providing maximum flexibility. Selected devices can operate in an extended temperature range of -40 °C to +60 °C.
