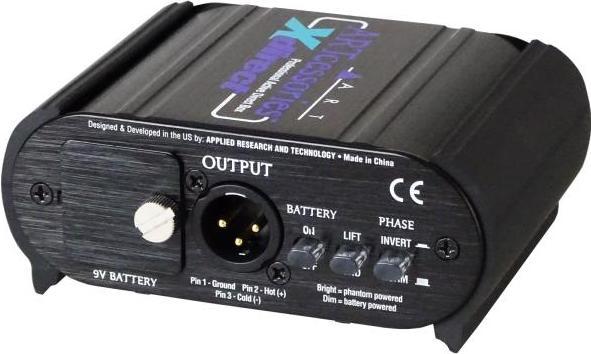

The ART X-Direct is an active DI box designed to connect various audio sources, whether at instrument, line, or speaker level, to a mixing console. The input signal is buffered by the DI box and converted into an isolated, balanced, and low-impedance signal. With its linear frequency response and wide frequency range, the X-Direct DI box delivers neutral, low-noise sound, even over long signal paths. The adjustable input attenuation allows for optimal settings for any signal level. The ground lift switch can be activated if needed, ensuring complete ground separation between input and output.

Details:

• Active DI box

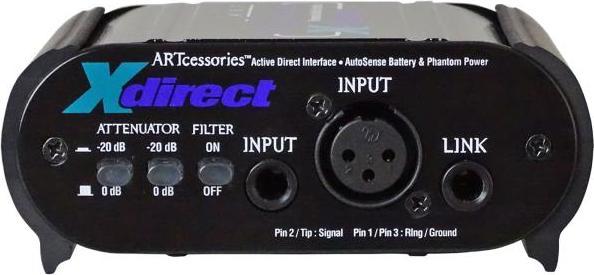

• Input: XLR / 6.3 mm jack unbalanced 470 kOhm

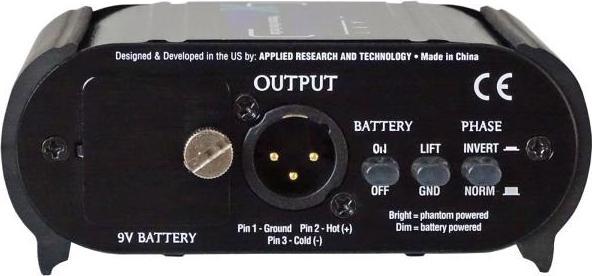

• Output: XLR male balanced < 600 Ohm
• Switchable low-pass filter
• Selectable input attenuation
• Phase reverse switch
• Ground lift switch
• Power supply: 9V battery or phantom power
• Dimensions: 107 x 45 x 89 mm
• Robust aluminum housing
• Weight: 0.34 kg

The X-Direct DI box can be used between an audio workstation and monitors. A switchable low-pass filter cuts off unwanted high-frequency noise. The X-Direct DI box is powered by a 9V battery (or phantom power) and can operate on battery for up to 250 hours. + keepdrum 6.3 mm mono jack cable.
