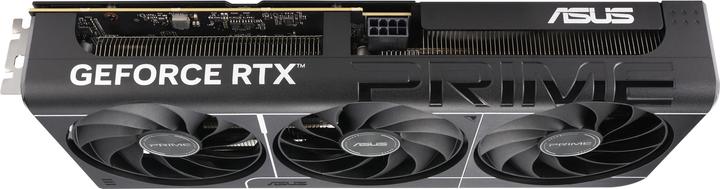

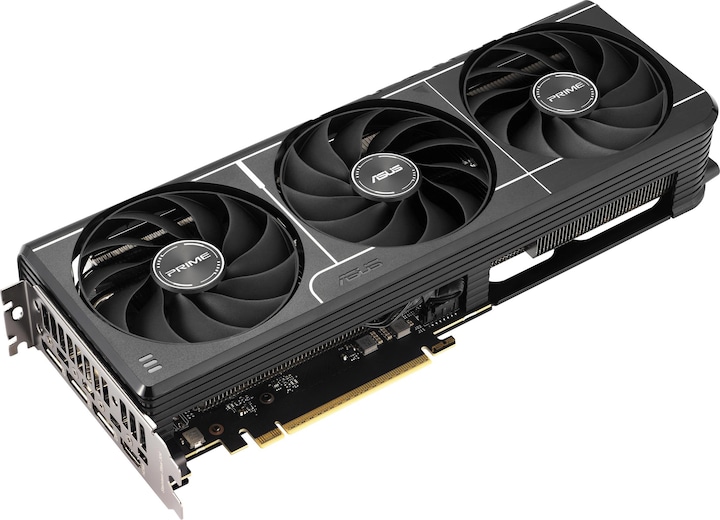

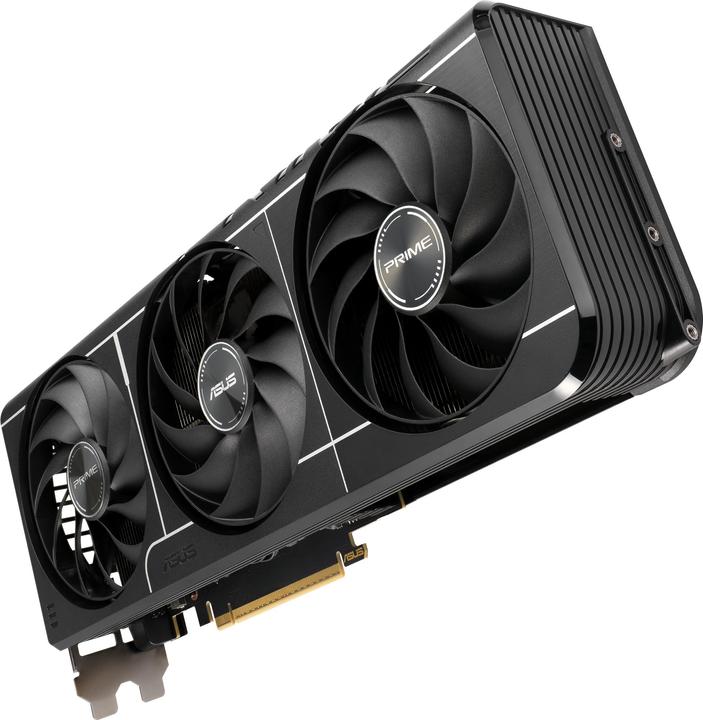

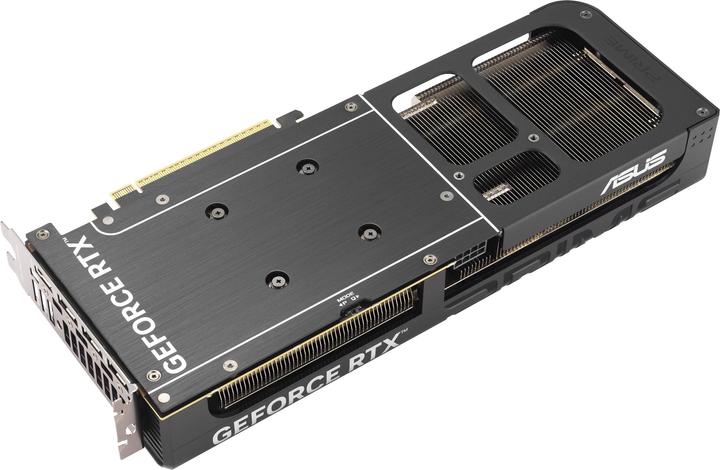

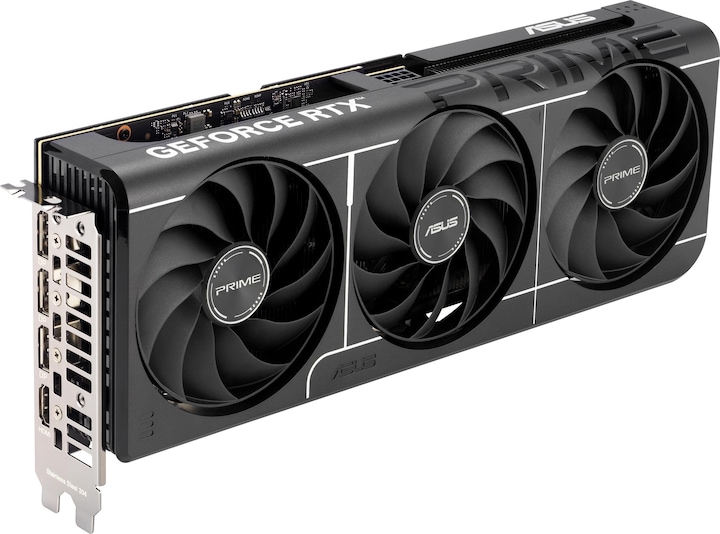

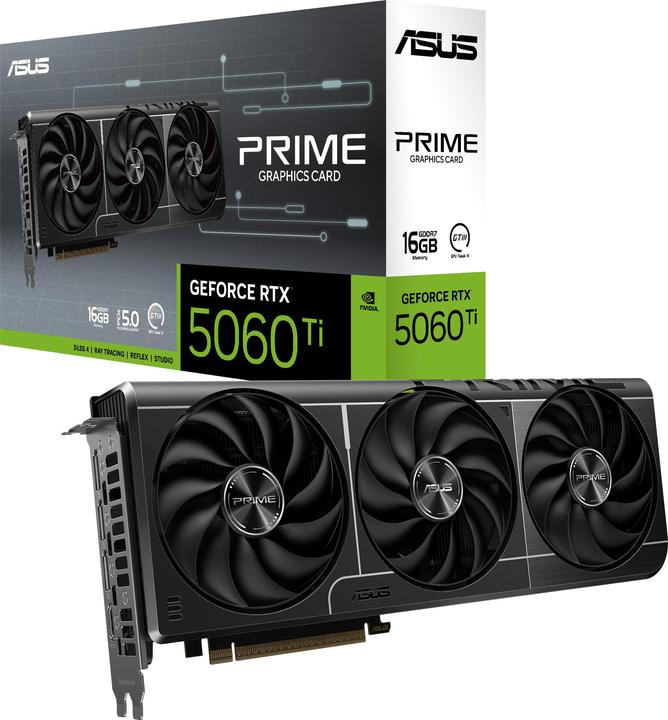

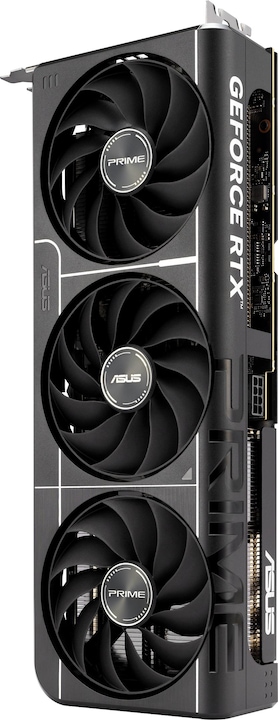

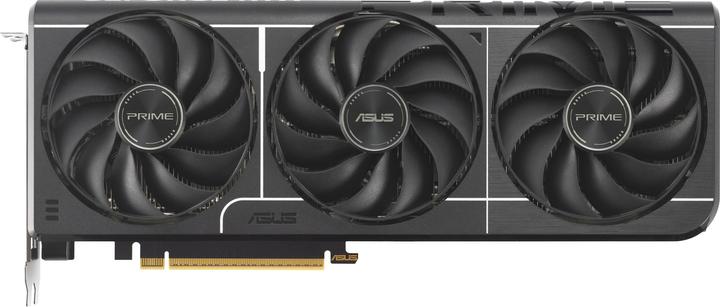

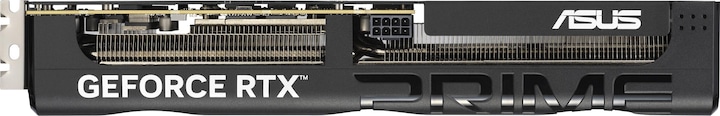

ASUS Prime GeForce RTX 5060 Ti
16 GB6 items ordered
Product details

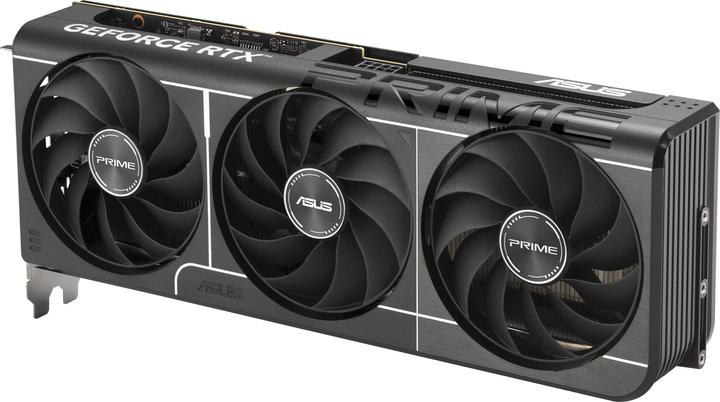

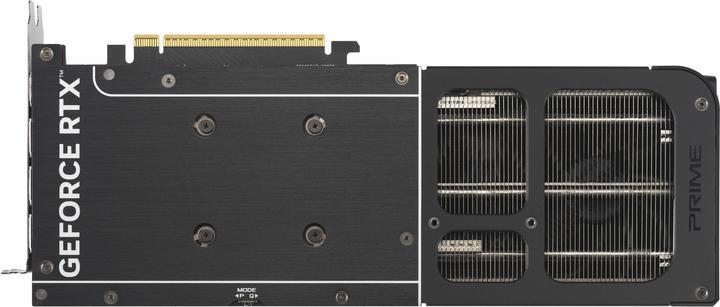

Axial-Tech fans feature a smaller fan hub that allows for longer blades and a locking ring that increases downward air pressure. The 2.5 slot design allows for greater compatibility with different builds while maintaining the same cooling performance. Fans with dual ball bearings last up to twice as long as standard sleeve bearings. With 0dB technology, you can enjoy light gaming in relative silence. With the dual BIOS switch, you can switch between the BIOS profiles "Quiet" and "Performance". The protective backplate is reinforced with a metal backplate for strength and protection. Auto-Extreme manufacturing process for precision and reliability. GPU Tweak III software offers intuitive performance optimisation, advanced fan control and system monitoring.
Length | 30.40 cm |
Number of shaders | 4608 x |
Graphics card model | GeForce RTX 5060 Ti |
Video memory clock | 28 GHz |
Max. connected monitors | 4 x |
Max. Video resolution | 7680 x 4320 pixels |
Power consumption | 180 W |
Item number | 57230267 |
Manufacturer | ASUS |
Category | Graphics card |
Manufacturer no. | 90YV0MH3-M0NA00 |
Release date | 16.4.2025 |
Sales rank in Category Graphics card | 114 of 985 |
Max. connected monitors | 4 x |
PCI Express version | PCIe 5.0 |
Max. Video resolution | 7680 x 4320 pixels |
Expansion card form factor | 2.5 Slots |
LED colour | without LED |
Graphics chip (GPU) | nVidia GeForce |
Graphics card model | GeForce RTX 5060 Ti |
Clock frequency | 2407 MHz |
Boost frequency | 2572 MHz |
Number of shaders | 4608 x |
Video memory type | GDDR7 |
Storage capacity | 16 GB |
Video memory clock | 28 GHz |
Memory Interface | 128 bits |
Memory Bandwidth | 448 GB/s |
Graphics card cooling system | Active cooler |
Number of fans | 3 x |
DirectX version | 12 |
OpenGL version | 4.60 |

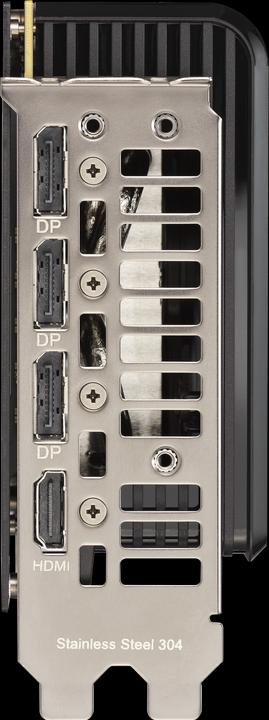

Video connections | DisplayPort (3x), HDMI (1x) |
HDMI version | 2.1b |
DisplayPort version | 2.1b |
Power consumption | 180 W |
Min. recommended system performance | 550 W |
Power connectors | 8-pin PCI-E |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 30.40 cm |
Width | 12 cm |
Height | 5 cm |
Length | 40.50 cm |
Width | 23.50 cm |
Height | 9 cm |
Weight | 1.55 kg |
