Secondary rated voltage: 24V AC
Nominal power: 25VA
Primary rated voltage: 230V AC
Number of outputs: 1
Length: 81.2mm
Width: 55mm
Depth: 49.2mm

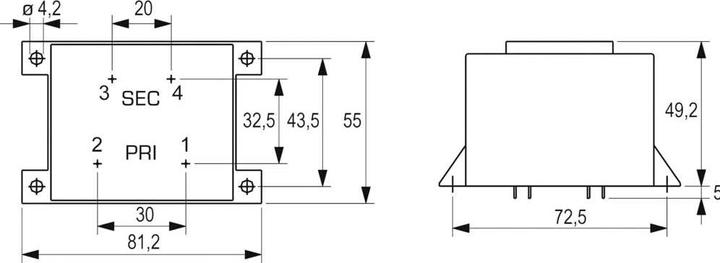

Dimensions: 81.2 x 55 x 49.2mm
Weight: 610g
Mounting type: Through hole mounting
Maximum temperature: +40°C
Minimum operating frequency: 50Hz
Maximum operating frequency: 60Hz

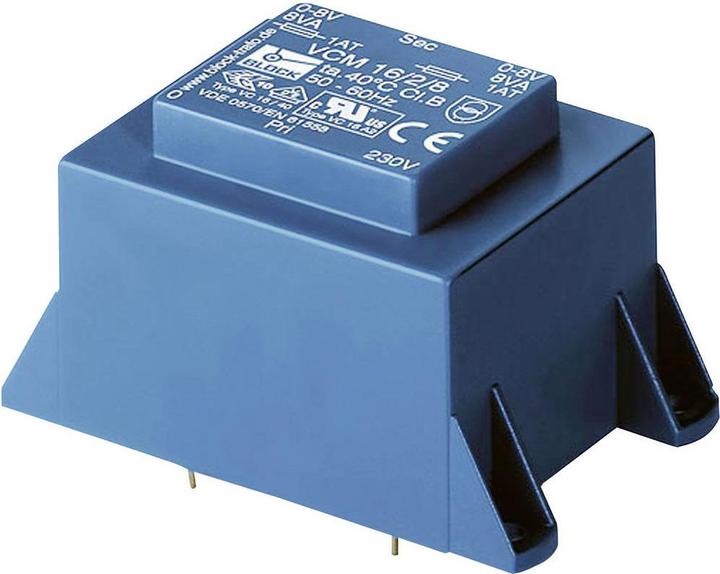

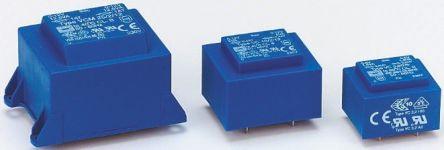

This product has EN 61 558, IEC 61558, ENEC, and UL approval. To comply with VDE 0550 and UL506, the secondary windings of all transformers with 2 24V outputs should not be connected in series. It is PCB mounted with a 230V AC primary and is part of the VC/VCM series. It features one and two secondary windings for series or parallel connection, is vacuum potted with resin to UL94-V0, has low capacitance between windings, low noise, and has undergone 100% electrical and breakdown testing. Extra fixing points are included for safe PCB mounting (25VA and 36VA).
