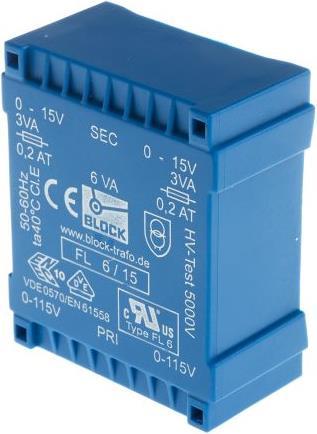

Block Transformer FL PCB 6VA 2x15V

Price in EUR including VAT
Delivered between Fri, 11.7. and Tue, 15.7.
More than 10 pieces in stock at supplier
Free shipping starting at 30,–

Product details

Secondary rated voltage: 15V AC
Nominal power: 6VA
Primary rated voltage: 115V AC, 230V AC
Number of outputs: 2

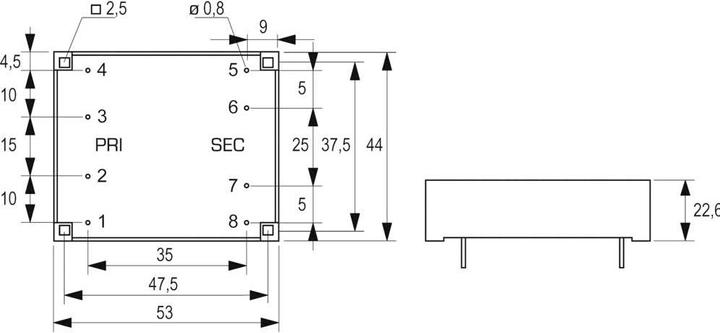

Length: 53mm
Width: 22.6mm
Depth: 44mm
Dimensions: 53 x 22.6 x 44mm
Weight: 175g
Mounting type: Through hole mounting
Maximum temperature: +40°C
Operating frequency minimum: 50Hz
Operating frequency maximum: 60Hz

VD 61 558. Transformers with 2 x 24 V outputs are not approved according to VDE, SEV. PCB mounted, flat, 115 / 230 Vac primary. Two primary windings for 115 Vac, 50 to 60 Hz, for series or parallel connection. Two secondary windings for series or parallel connection. Compact flat design. Vacuum epoxy resin molded part according to class UL94-V0. Two-piece coil made of glass fiber reinforced polyamide. 100% electrical testing and breakdown testing. Low capacitance between turns. Low noise. Additional mounting holes for safe PCB mounting. Standard: EN60742, VDE 0551, IEC 61558.

Key specifications

input voltage
115 V
Output voltage
15 V
transformer type
PCB transformer
Electric current
0.20 A
Power
6 W
Item number
9941707

General information

Manufacturer
Block
Category
Transformer
Manufacturer no.
FL 6/15
Release date
22.10.2018
External links

Transformers + Coils Features

transformer type
PCB transformer

Power supply

input voltage
115 V
Output voltage
15 V
Electric current
0.20 A
Power
6 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
53 mm
Height
53 mm
Weight
180 g
