Housing material: ABS
External dimensions: 151 x 80 x 60 mm
Length outside: 151 mm
Outside width: 80 mm
External height: 60 mm
IP protection class: IP67
Color: Grey
Lid color: Grey
Series: Bocube
Shielded: No

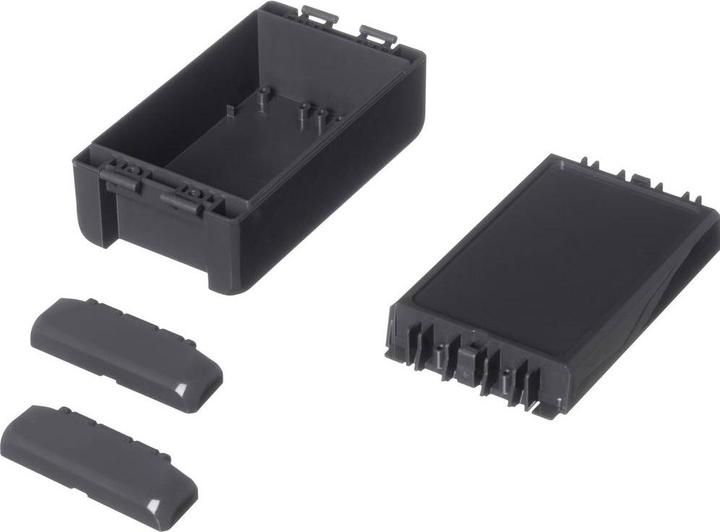

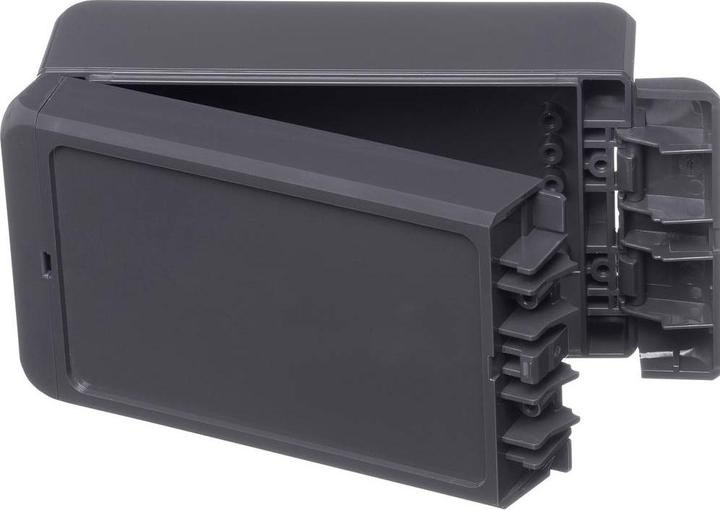

The Bocube series from Bopla is a unique, innovative IP66/IP68 enclosure ideal for wall-mounted or desktop applications in industrial or office environments. This versatile ABS enclosure is available in light grey (RAL7035) or graphite grey (RAL7024), comes in 11 sizes, and has an opaque lid with a 2 mm deep recess for membrane keypads. The Bocube case also features a patented swivelling quick release lock that can be opened with a screwdriver and closed by hand. Thanks to the small number of parts, it can be assembled quickly and easily without special tools. Printed circuit boards and front panels can be mounted in the cover and in the base. There is a large mounting area for connectors, cable glands, and operating elements. A cable seal can be mounted to protect against unauthorized insertion (not included). Bocube is a plastic housing made of one material and is therefore particularly suitable for recycling. CE marking.
