Housing material: Polycarbonate
Dimensions outside: 113 x 80 x 90 mm
Length outside: 113 mm
Width outside: 80 mm
Height outside: 90 mm
IP protection class: IP68
Color: Gray
Lid color: Gray
Series: Bocube
Shielded: No

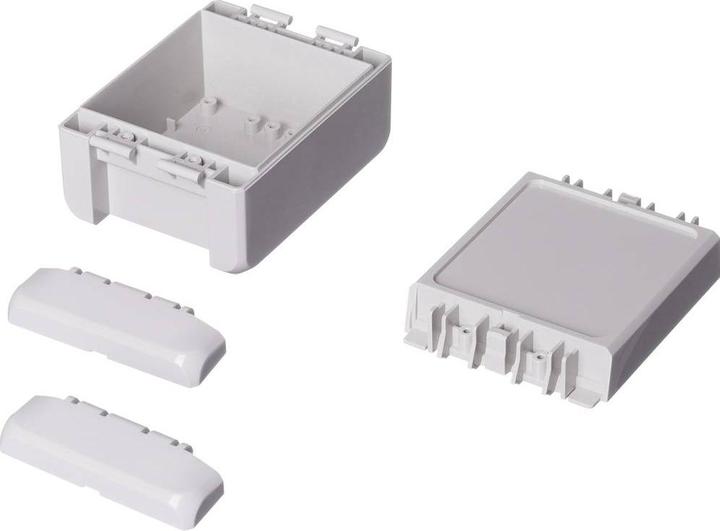

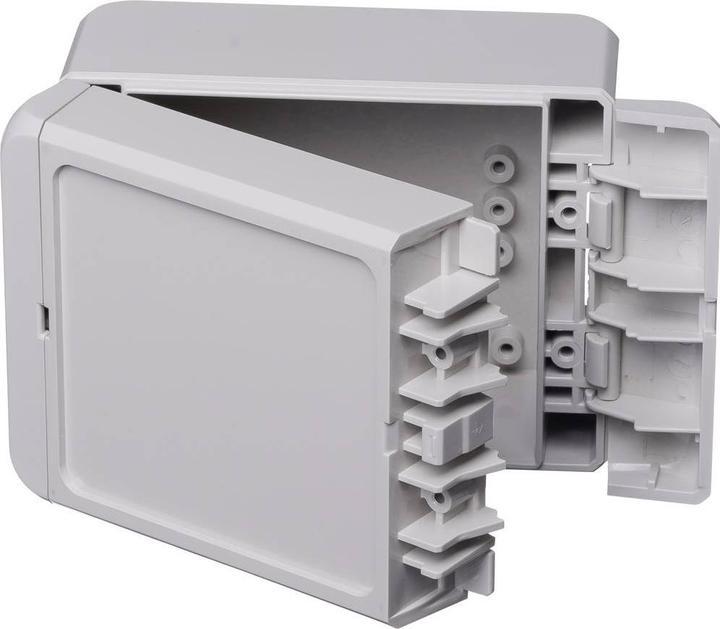

The Bocube IP66/IP67/IP68 polycarbonate enclosure is a unique, innovative solution ideal for wall-mounted or benchtop applications in industrial or office environments. Available in light gray (RAL7035) or graphite gray (RAL7024), this versatile enclosure comes in 11 sizes and features a clear or opaque lid with a 2 mm deep recess for membrane keypads. The Bocube enclosure includes a patented pivoting quick-release latch that can be opened with a screwdriver and closed by hand. With a small number of parts, it can be assembled quickly and easily without special tools. Printed circuit boards and front panels can be mounted in the lid and base.

Features include:

• Recessed area for membrane keyboards
• Large mounting area for connectors, cable glands, and operating elements
• Pivoting quick-release latch (enclosure can also be screwed shut)
• Polycarbonate (PC) according to UL94-V0 (fire-resistant and self-extinguishing) with molded-in seal
• Protection class IP66/IP68
• A cable seal can be mounted to protect against unauthorized insertion (not included)

Bocube is a plastic enclosure made of one material and is therefore particularly suitable for recycling. CE marking.
