Housing material: Aluminum
Dimensions (outside): 100 x 105 x 32 mm
Length (outside): 100 mm
Width (outside): 105 mm
Height (outside): 32 mm
IP protection class: IP40
Color: Natural
Series: F
Shielded: No

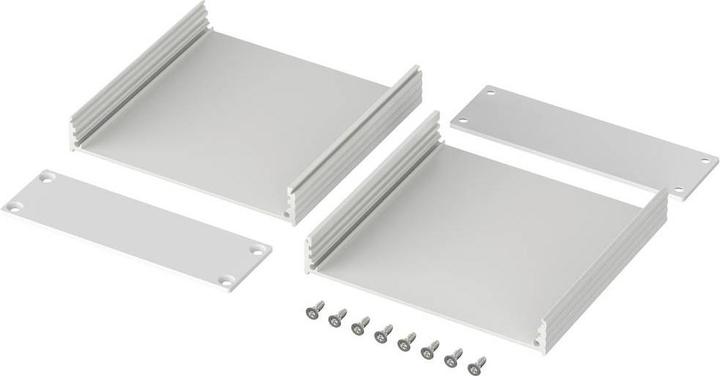

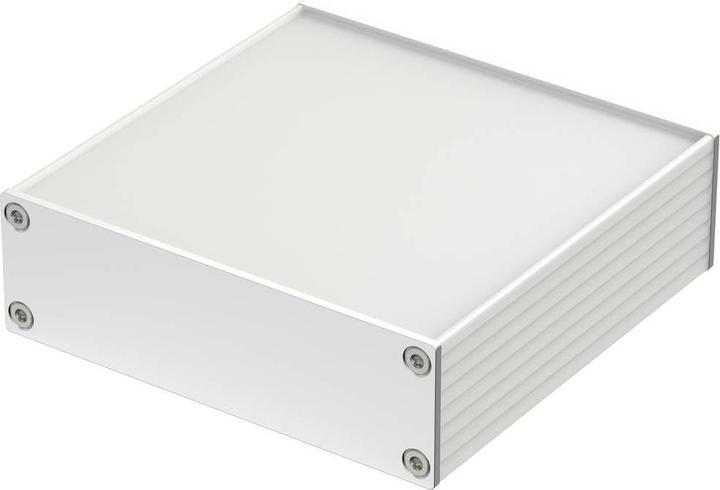

This product includes two enclosure halves, two covers (end panels), and screws required for assembly. The Bopla Filotec aluminum profile enclosure features a natural anodized finish. The enclosure profiles are designed with grooves to accommodate printed circuit boards or mounting plates. Three versions of the Filotec enclosures are available: one with a membrane keypad area, one with a membrane keypad area and potted wall mounts, and one with cooling fins and potted wall mounts. The end covers provide a large usable area for connectors or printing. The protection class is IP40 according to DIN EN 60529, and the aluminum profiles are anodized with AL Mg SI 0.5.
