Housing material: Aluminum
Dimensions (outside): 100 x 105 x 36 mm
Length (outside): 100 mm
Width (outside): 105 mm
Height (outside): 36 mm
IP protection class: IP40
Color: Natural
Series: F
Shielded: No

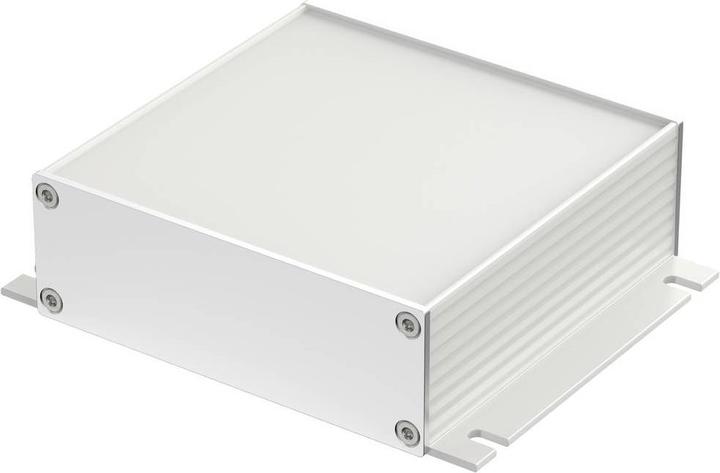

This enclosure includes two halves, two covers (end panels), and screws as required. Bopla's Filotec series features an aluminum profile enclosure with a natural anodized finish. The enclosure profiles are designed with grooves to accommodate printed circuit boards or mounting plates. Three versions of the Filotec enclosures are available: one with a membrane keypad area, one with a membrane keypad area and potted wall mounts, and one with cooling fins and potted wall mounts. The end covers provide a large usable area for connectors or printing. Protection class is IP40 according to DIN EN 60529. The aluminum profiles are anodized with AL Mg SI 0.5, and the end cover is also anodized aluminum.
