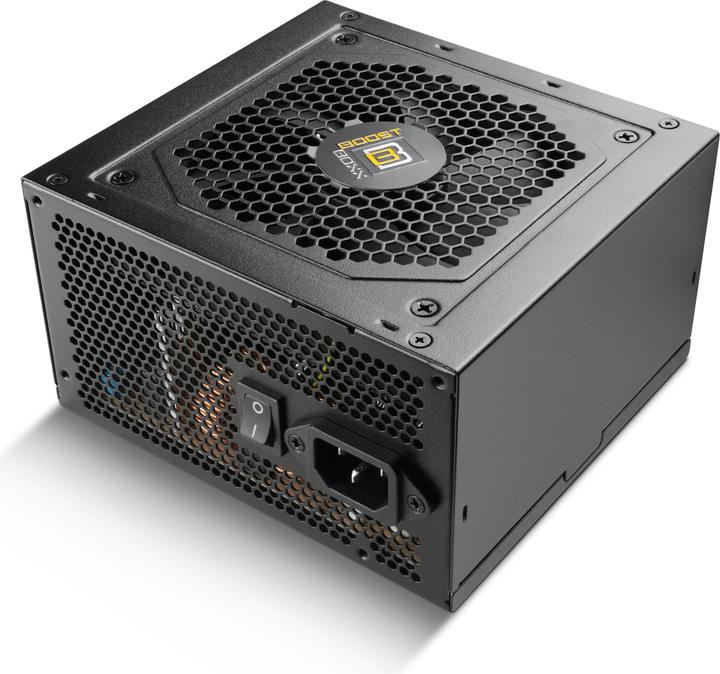

The BoostBoxx 500W PowerBoost 80+ Bronze Edition is a highly energy-efficient 500 watt power supply with a high, 80PLUS® Bronze-certified efficiency. Precise voltage regulation, extensive connection options and quiet operation make it an excellent power supply for multimedia and gaming systems. The consistently high efficiency of over 80%, even at low loads, achieves excellent energy efficiency, reduces electricity costs and minimises heat generation. A powerful, quiet-running 120mm fan ensures good warm air dissipation and effective cooling of the components.

Technical data

Model

BoostBoxx PowerBoost 80+ Bronze Edition

Continuous power

500 watts

Specification

100-240V, 9A, 47~63Hz

Active PFC

ATX12V

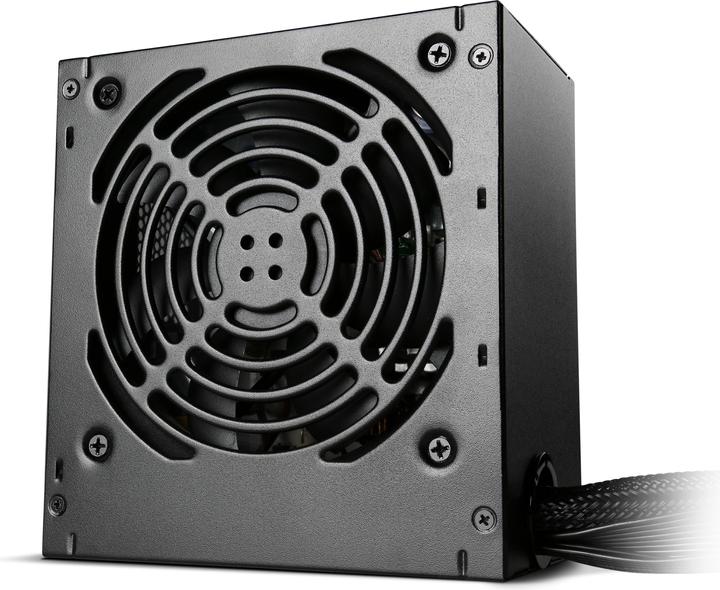

Fan

120mm

Protective functions

Overvoltage (OVP), undervoltage (UVP), short circuit (SCP), overload (OPP)

Energy efficiency

80PLUS Bronze certification

Utilisation: Efficiency

10%: 80,13%

20%: 85,05%

50%: 86,97%

100%: 83,97%

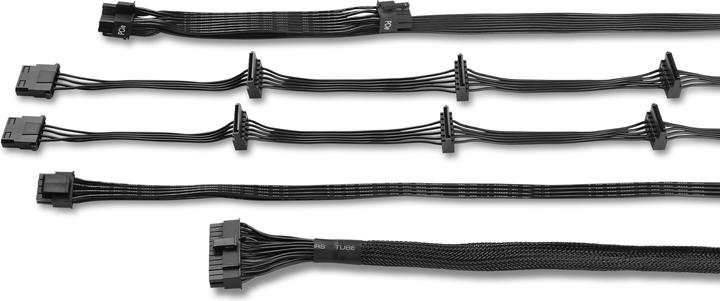

Connections

sleeved cable, black

6 cables

1x ATX mainboard (20+4 pin)

1x CPU (4+4 pin)

2x PCIe (6+2 pin / GPU)

2x Molex (4 pin / HDD, drives)

6x SATA (15 pin / SSD, HDD, drives)

Dimensions

140×150×86 mm

approx. 1.75 kg

Certification

80PLUS Bronze certification

FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TÜV, CB, CU, KC Mark, RoHS, WEEE.
