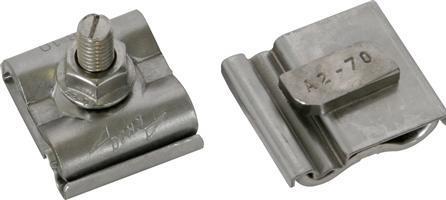

DEHN Uni Ground Clamp UEK810AQ450HKSM8V2A

Manufacturer: DEHN
Designation: Uni Ground Clamp M8 Rd8-10mm+4-50mm²
Type: UEK810AQ450HKSM8V2A
Suitable for: Round conductors
Connection cross-section: 4 to 50 mm²
Clamping range for round conductors: 8 to 10 mm
Material: Stainless steel
Surface protection: Untreated

The DEHN Uni Ground Clamp UEK810AQ450HKSM8V2A is designed in accordance with DIN EN 62561-1 for the integration of mounting systems used in photovoltaic systems into functional potential equalization and grounding technology. It also meets the requirements for lightning protection potential equalization according to DIN EN 62305-3. The stainless steel contact plate allows for the connection of various conductor materials (copper, aluminum, steel/tin, and stainless steel) to standard mounting systems made of aluminum without the risk of contact corrosion. This version includes an M8 hammer head screw, a locking nut, and a double overlay for the through-wiring of profiles.
