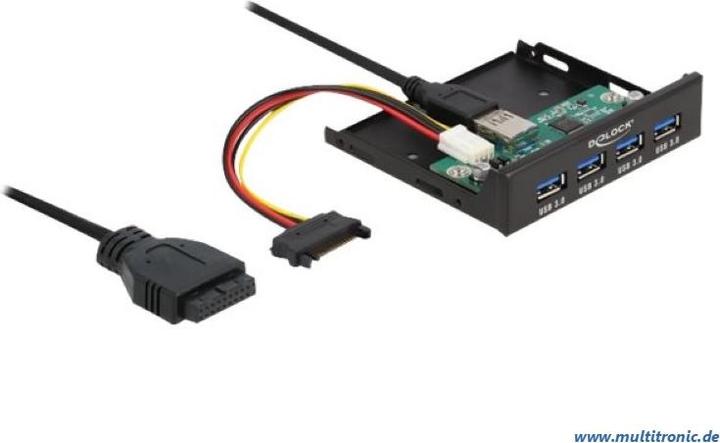

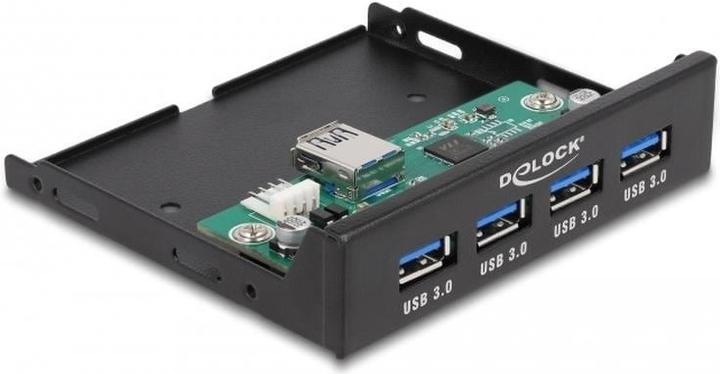

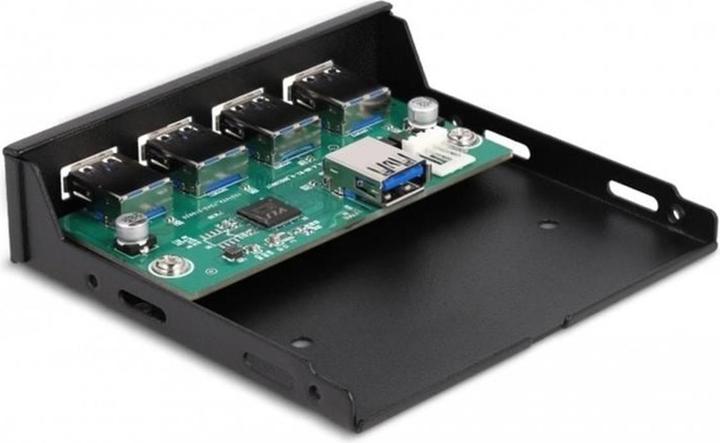

This Delock hub can be installed in a 3.5-inch bay of the PC. It connects internally to the motherboard via a USB header connector. Up to four USB devices, such as docking stations, card readers, external enclosures, etc., can be connected.

Specifications:

• Connections:
• external: 4 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A ports
• internal: 1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A port, 1 x 4-pin connector
• Chipset: VIA VL817
• Data transfer rate up to 5 Gbps

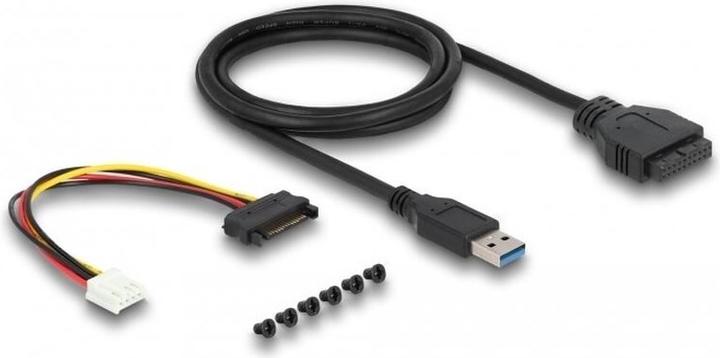

• Cable data:
• 1 x USB Type-A plug to 1 x 19-pin USB header socket, length approx. 74 cm (without connectors)
• 1 x power cable 4-pin socket to 1 x SATA 15-pin plug, length approx. 17 cm (without connectors)
• 3.5-inch metal frame
• Color: black
• Hot Swap, Plug & Play
• Dimensions (LxWxH): approx. 102 x 95 x 26 mm

System requirements:

• Linux Kernel 3.17 or higher
• Windows 8.1/8.1-64/10/10-64/11
• PC with a free 3.5-inch bay
• Motherboard with a free 19-pin USB header
• Power supply with SATA 15-pin socket

Package contents:

• 3.5-inch hub
• USB cable
• Power cable
• Screws
• User manual.
