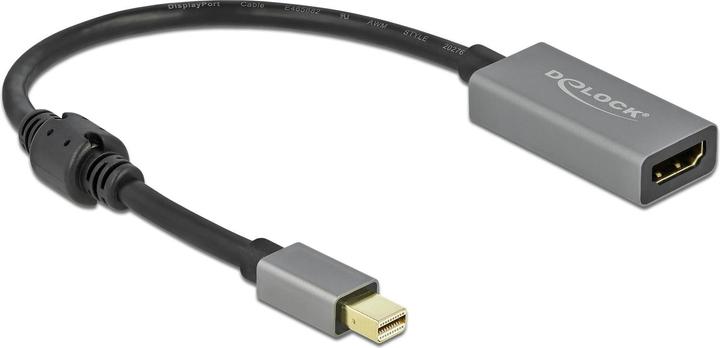

With this adapter from Delock, an HDMI monitor can be connected to a system via a free mini DisplayPort interface. The adapter supports a resolution of up to 4K Ultra HD at 60 Hz and is backward compatible with Full HD 1080p.

Active Adapter
The adapter offers active conversion, making it suitable for graphics cards that cannot output DP++ signals.

Specifications

• Connectors:

1 x mini DisplayPort plug
1 x HDMI-A socket

• Chipset: Parade PS186
• DisplayPort 1.4 and High Speed HDMI specification
• Active converter, for graphics cards with DP and DP++ output
• Signal direction: mini DisplayPort input > HDMI output
• Wire gauge:

32 AWG data line
28 AWG power line

• Cable diameter: approx. 5 mm
• Connectors: gold-plated
• Metal housing
• Transmission of audio and video signals
• Data transfer rate up to 18 Gbps
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and connected hardware)
• Supports HDR
• Supports HDCP 1.4 and 2.3
• 1 x ferrite core
• Cable length without connectors: approx. 20 cm
• Color: gray / black

System Requirements

• A free mini DisplayPort socket

Package Contents

• mini DisplayPort to HDMI adapter.
