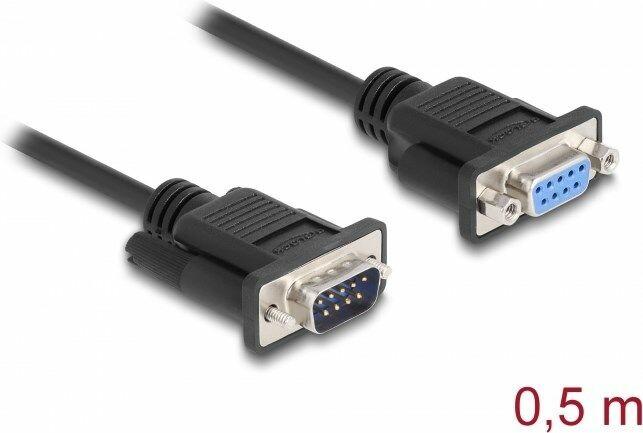

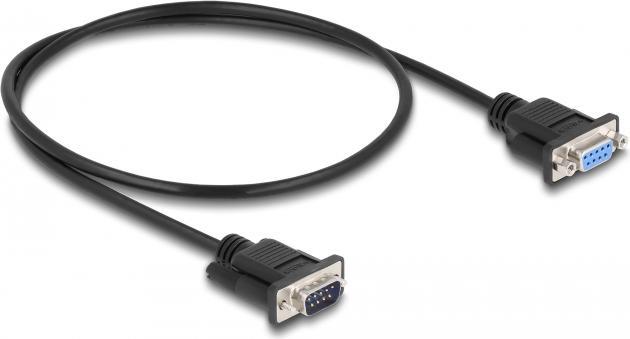

Delock Serial cable RS-232 D-Sub 9 male to female null modem with narrow connector housing 0.5 m
0.50 m, VGAMore than 10 items in stock at supplier
Product details
This serial cable from Delock is a fully wired null modem cable for printers, measuring instruments, converters, RS-232 hubs, patch panels, etc. This cable is used to connect RS-232 devices together for data exchange.
Mini D-Sub 9 connector
These cables fit any RS-232 connector because the mini D-Sub 9 connectors (44 x 33.3 x 15 mm) are small and compact. In this way, RS-232 connections can be used directly next to each other.
Specification
Connectors:
1 x Serial D-Sub 9 male with screws
1 x Serial D-Sub 9 female with nuts
Wire gauge: 28 AWG
Fully wired null modem cable
Pin assignment: 1+6 - 4, 2 - 3, 3 - 2, 4 - 1+6, 5 - 5, 7 - 8, 8 - 7, shielded
Colour: black
Insulation: PVC
Screw type: #4-40 UNC
Cable diameter: approx. 5 mm
Cable length including connectors: approx. 0.5 m
System requirements
One free D-Sub 9 socket
One free D-Sub 9 plug.
Length | 0.50 m |
Type | VGA |
Item number | 24121060 |
Manufacturer | Delock |
Category | Interface cable |
Manufacturer no. | 86886 |
Release date | 4.10.2022 |
Cable colour | Black |
Cable connection | Connection (m/m) |
Quantity per package | 1 x |
Plug type | Gold-plated contacts |
American Wire Gauge (AWG) | 28 |
Cable design | PVC jacket |
Connection B | DB-9 |
Connection A | DB-9 |
Type | VGA |
Country of origin | China |
