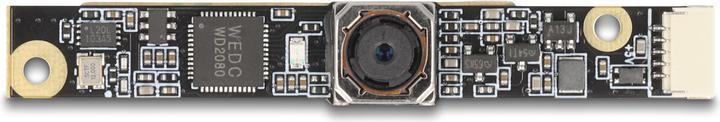

This USB 2.0 camera module by Delock offers high resolution and low power consumption in a very compact design. It is ideal for installation in industrial components such as IPCs, embedded systems, sensors, and in device construction. The use of a light-sensitive sensor with backside illumination (BSI) extends the application range of this module.

Note: The autofocus of this camera module can be deactivated and customized.

Specifications:

• Connection: 1 x 5-pin USB 2.0 pin socket SMT, 1.00 mm pitch
• Resolution: 8.0 megapixels
• With optical IR filter
• Current consumption: Sensor active: 110 mA ± 5 mA @ 640 x 480 pixels
• Operating voltage: 5 V DC
• Operating temperature: 5 °C ~ 50 °C
• Operating humidity: 20 ~ 80 %
• Sensor size: 1/3.2"
• Sensitivity: 0.6 V / lx s
• Signal-to-noise ratio (SNR): approx. 36 dB
• Dynamic range: 68 dB
• Autofocus: 0.2 m - infinity
• Aperture value: F/2.8
• Frame rates:
• 320 x 240 @ 30 Hz
• 352 x 288 @ 30 Hz
• 640 x 480 @ 30 Hz
• 900 x 600 @ 30 Hz
• 1280 x 720 @ 30 Hz
• 1600 x 1200 @ 30 Hz
• 1920 x 1080 @ 30 Hz
• 2048 x 1536 @ 20 Hz
• 2560 x 1440 @ 30 Hz
• 2592 x 1944 @ 20 Hz
• 3264 x 1836 @ 15 Hz
• 3264 x 2448 @ 15 Hz
• Dimensions (LxWxH): approx. 60.0 x 9.0 x 5.8 mm

System requirements:

• Android 11.0 or higher
• Chrome OS
• Linux Kernel 5.15 or higher
• Mac OS 12.4 or higher
• Windows 10/10-64/11

Package contents:

• Camera module
• CD with operating instructions.
