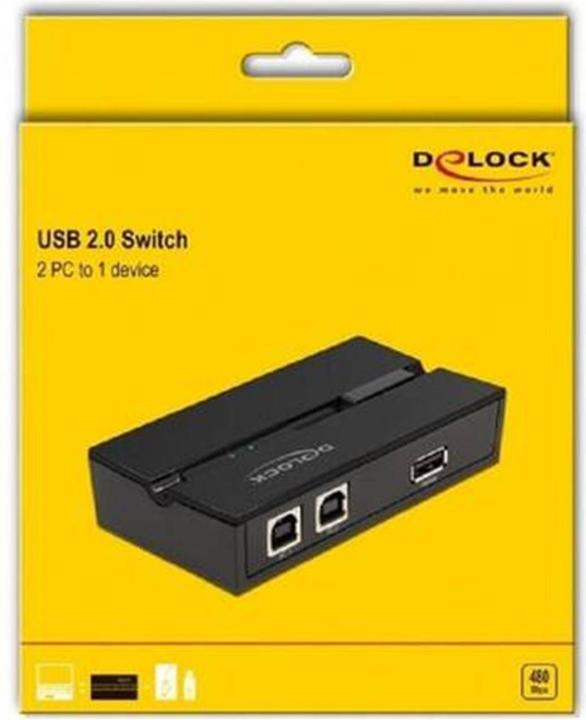

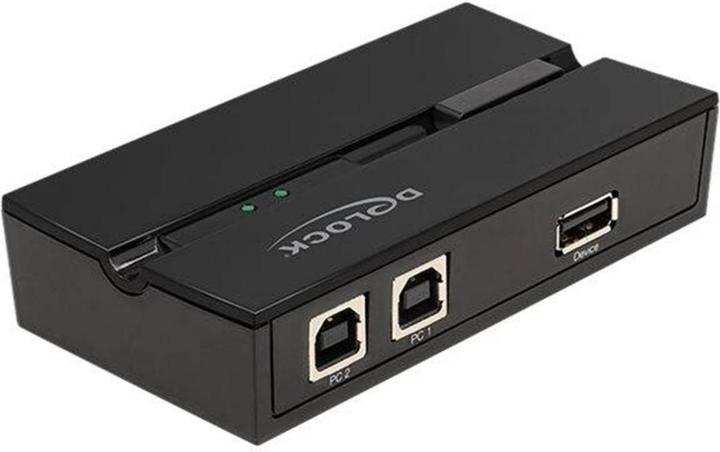

This USB switch from Delock allows the sharing of a single USB 2.0 peripheral device between two different computer systems. This eliminates the costs associated with purchasing multiple peripherals or the hassle of unplugging and re-plugging cables from one system to another.

Memory Function
The port selection works via a button, regardless of whether one of the computer systems is disconnected. The last setting is saved even when the device is powered down and restarted.

Secure Mounting

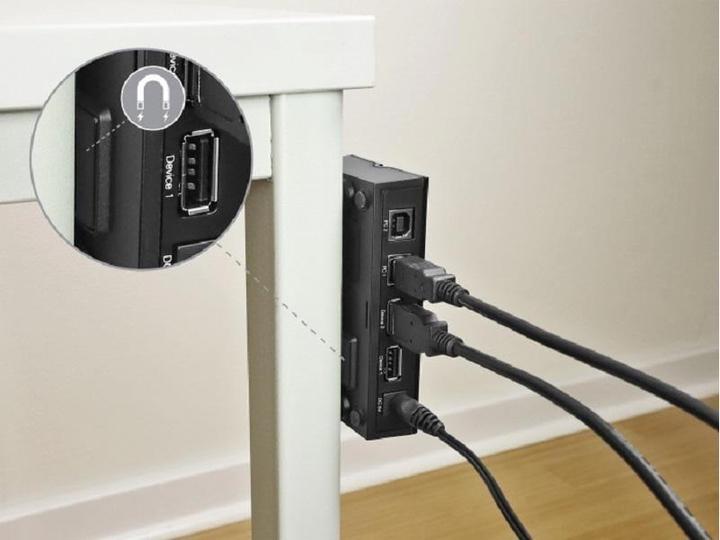

A built-in magnet allows the switch to be attached to suitable metal surfaces; alternatively, the housing has a wall-mounting option with screws.

Specifications

• Connections:

Input:
2 x USB 2.0 Type-B socket
Output:
1 x USB 2.0 Type-A socket

• 1 x switch button with LED indicators for PC 1 or PC 2
• USB Bus Power (no additional power supply required)
• Data transfer rates up to:

Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps

• Backward compatible with USB 1.1
• Plug & Play
• OS independent, no driver installation required
• Plastic housing
• Wall mount integrated into the housing
• Magnetic base
• Color: black
• Dimensions (LxWxH): approx. 106 x 56 x 25 mm

System Requirements

• PC or notebook with a free USB Type-A port
• Connection cable

Package Contents

• Switch

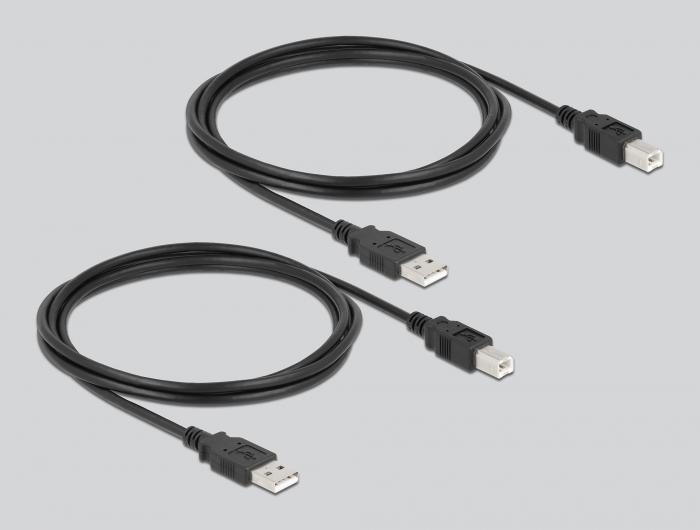

• 2 x USB A male to USB B male cables, length approx. 1.8 m
• User manual.
