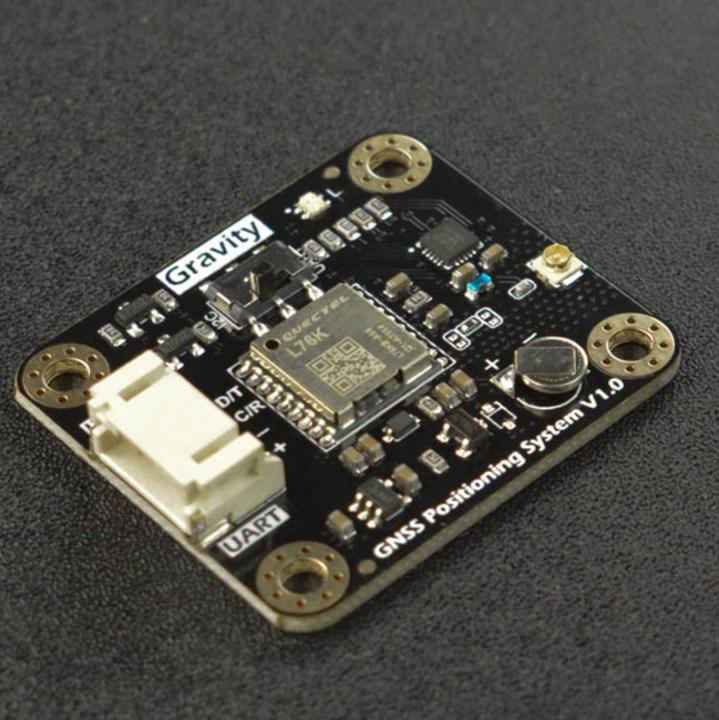

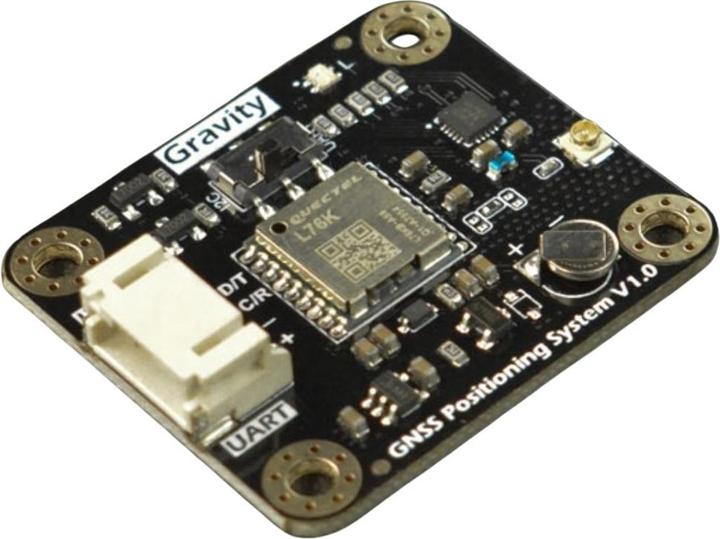

The Gravity: GNSS GPS BeiDou Receiver Module from DFRobot is a powerful device that supports multiple satellite systems such as BeiDou, GPS and GLONASS. Its multi-system combination enables higher precision and faster speed, ensuring stable and accurate performance even in complex urban environments. With its I2C and UART data outputs, this module is compatible with popular master controllers such as Arduino, ESP32 and Raspberry Pi. It is perfect for outdoor positioning scenarios such as vehicle navigation, handheld positioning tracker, object tracking and weather station. With its ability to provide position data such as longitude, latitude, altitude and time, this module is an indispensable tool for any project that requires reliable GNSS positioning.

Features:
Supports both single and multiple system positioning.
Higher precision and faster speed than conventional single GPS positioning

Technical details:
Manufacturer: DFRobot
Manufacturer's SKU: TEL0157
Operating voltage: 3.3 to 5.5V DC
Output signal: I2C/UART
Positioning accuracy: 2.0m CEP
Time for first positioning: 30s for cold start; 2s for warm start
Power consumption: 40mA

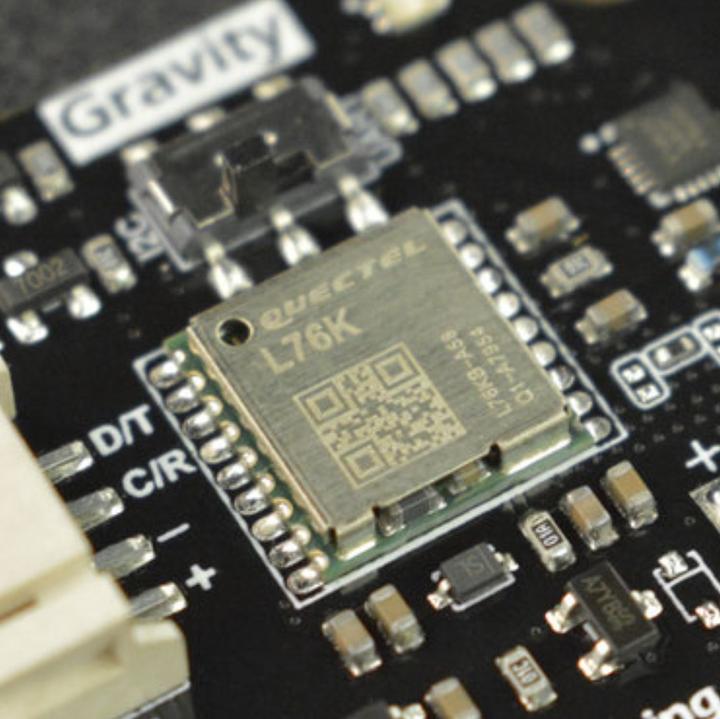

GPS module: Quectel L76
Antenna interface: IPEX1
Antennenfrequenz: 1561-1575.42MHz±3MHz
Dimensions: 27mm x 37 x 7.5mm
Weight: 21g

Scope of delivery:
1x Gravity GNSS BeiDou GPS Receiver Module I2C and UART
1x GPS/BeiDou Active Ceramic Antenna (IPEX1 Connector)
1x Gravity-4P I2C/UART Sensor Cable 30cm.
