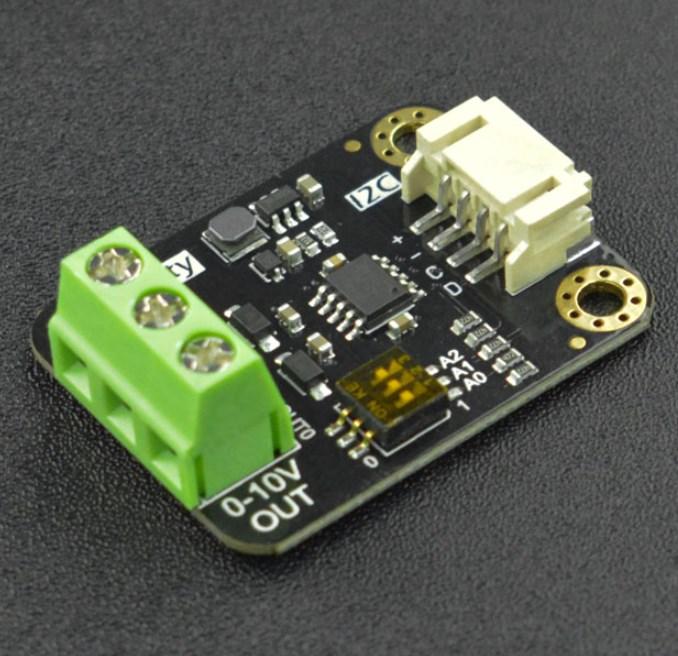

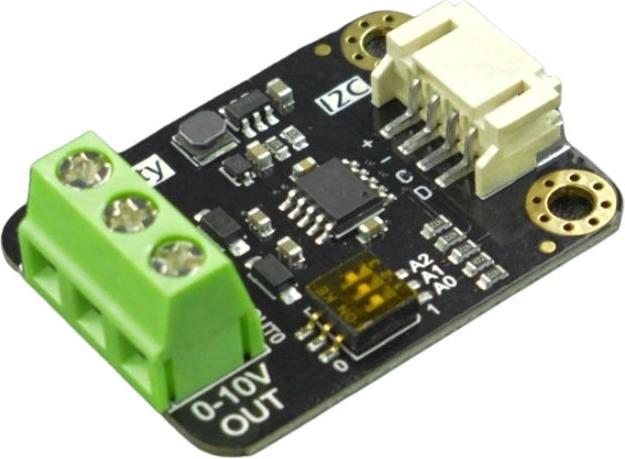

DFRobot Gravity I2C 2-channel DAC module 0-10V
Product details
This is a 2-channel digital analogue converter from DFRobot. The module is controlled via I2C and converts the digital value into an analogue output voltage of 0-10V. With this you can control for example a pump, valves, light controller or a device with analogue input. The module supports 8 different I2C addresses that can be changed via dip switches, which allows the use with up to 16 devices.
Features:
I2C to 0-10V Analogue DAC Module

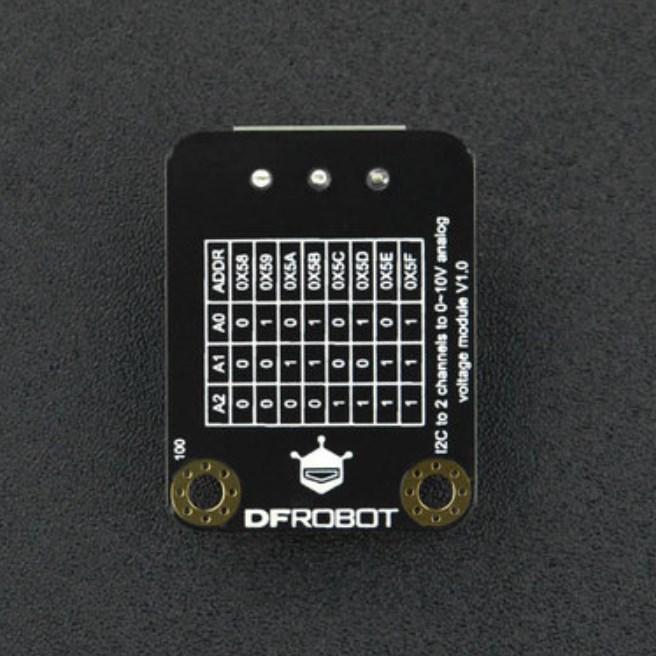

8 different I2C addresses easily adjustable via dip-switch
Technical details:
Manufacturer: DFRobot
Manufacturer SKU: DFR0971
Voltage: 3.3-5V
Chip: GP8403
Power consumption: <4mA
Input: I2C 12bit (0x000 - 0xFFF)
Output: 0-10V analogue
Dimension: 35.5 x 27 x 12mm
Weight: 16g
Scope of delivery:

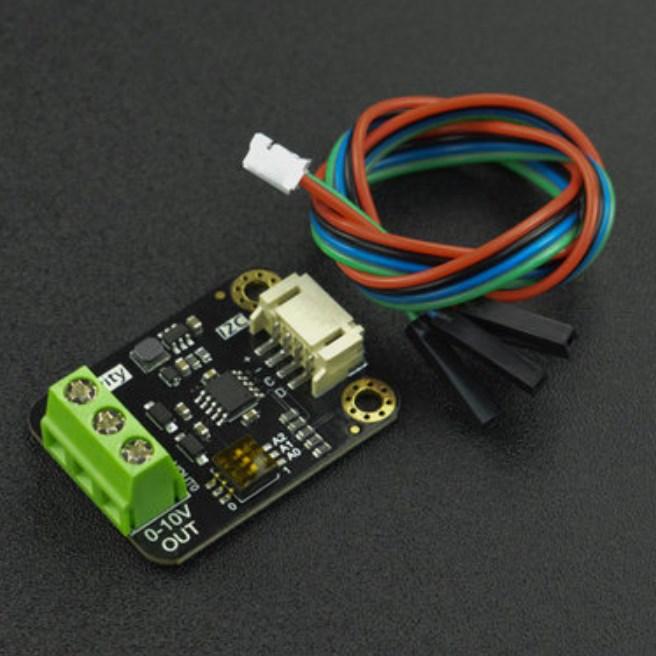

1x Gravity I2C 2-channel DAC module 0-10V
1x 4p Gravity to Dupont Female Adapter Cable.
Item number | 24938049 |
Manufacturer | DFRobot |
Category | Development boards + Kits |
Release date | 30.3.2023 |
Operating voltage | 5 V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x 4p Gravity to Dupont Female adapter cable, 1x Gravity I2C 2-channel DAC module 0-10V |
Weight | 16 g |
